Subtotal (1 bag of 50 units)*
£13.87
(exc. VAT)
£16.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 + | £13.87 | £0.277 |
*price indicative
- RS Stock No.:
- 182-3864
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Cable Clip/Clamp Style | spring clip | |
Affixing Method | Screw | |
Material | Steel | |
Colour | Natural | |
Length | 50mm | |
Width | 12 mm | |
Depth | 8mm | |
Fire Behaviour | Fire Resistant | |
Series | Safe-D Spring-Clip | |
Dimensions [L x W x D] | 50 x 12 x 8mm | |
Number of Apertures | 1 | |
Maximum Operating Temperature | +1200°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Cable Clip/Clamp Style spring clip | ||
Affixing Method Screw | ||
Material Steel | ||
Colour Natural | ||
Length 50mm | ||
Width 12 mm | ||
Depth 8mm | ||
Fire Behaviour Fire Resistant | ||
Series Safe-D Spring-Clip | ||
Dimensions [L x W x D] 50 x 12 x 8mm | ||
Number of Apertures 1 | ||
Maximum Operating Temperature +1200°C | ||
- COO (Country of Origin):
- GB

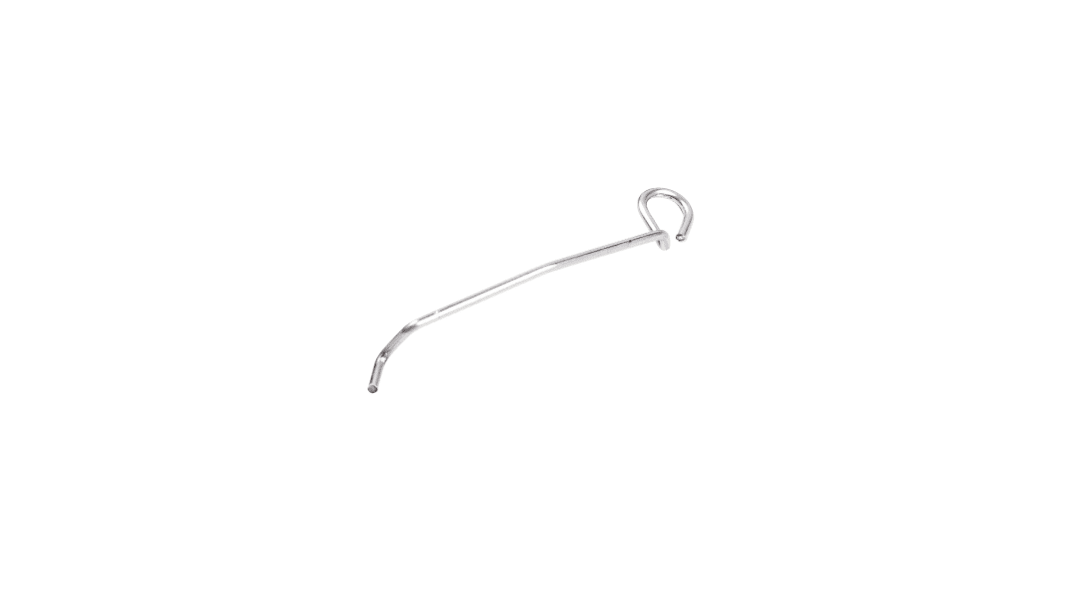

Steel Cable Spring Clips
Fire Rated Cable Clips, Steel Trunking Clip. Safety tested for compliance with BS7671 and BS5839 part 1. Comply with 18th Edition Wiring Regulations. For steel screws see stock no. 182-3865.
Features and Benefits:
• Non-corrosive finish
• Over 1200°C melting point
• Unique single fixing hole, use steel screw, stock no. 182-3865 to securely hold.
• Easy to install
• Comply with 18th Edition Wiring Regulations
• Can be fixed on surfaces at any angle to hold a variety of cable options
• Over 1200°C melting point
• Unique single fixing hole, use steel screw, stock no. 182-3865 to securely hold.
• Easy to install
• Comply with 18th Edition Wiring Regulations
• Can be fixed on surfaces at any angle to hold a variety of cable options
RS PRO Fire Rated Cable Clips
Non-corrosive finish
Over 1200°C melting point
Unique single fixing hole, use steel screw, stock no. 182-3865 to securely hold.
Easy to install
Comply with 18th Edition Wiring Regulations
Can be fixed on surfaces at any angle to hold a variety of cable options
Over 1200°C melting point
Unique single fixing hole, use steel screw, stock no. 182-3865 to securely hold.
Easy to install
Comply with 18th Edition Wiring Regulations
Can be fixed on surfaces at any angle to hold a variety of cable options
Spring Fire Rated Cable Clips effectively secure single cables (<7mm o/d), direct-to-surface or can be used inside trunking, as a trunking cable clip. High-temperature sprung steel is tensioned to provide a strong contact with trunking bases. In fire conditions, the steel cable spring clips (when secured with fire rated screws) can hold cables in-situ at 970°C for up to 2 hours. They satisfy all requirements of BS5839 Part 1. 50mm long arm is specially kinked to minimise risk of cable bruising or damage to the conductors of soft-skin cables.
Applications
RS PRO steel spring cable clips are fire rated to secure cables in fire conditions, ideal for use direct to surface and can hold a variety of cable options, also used inside micro trunkings.
Why RS PRO?
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO seal of approval if were confident of their exceptional quality, which means you can be confident too.
