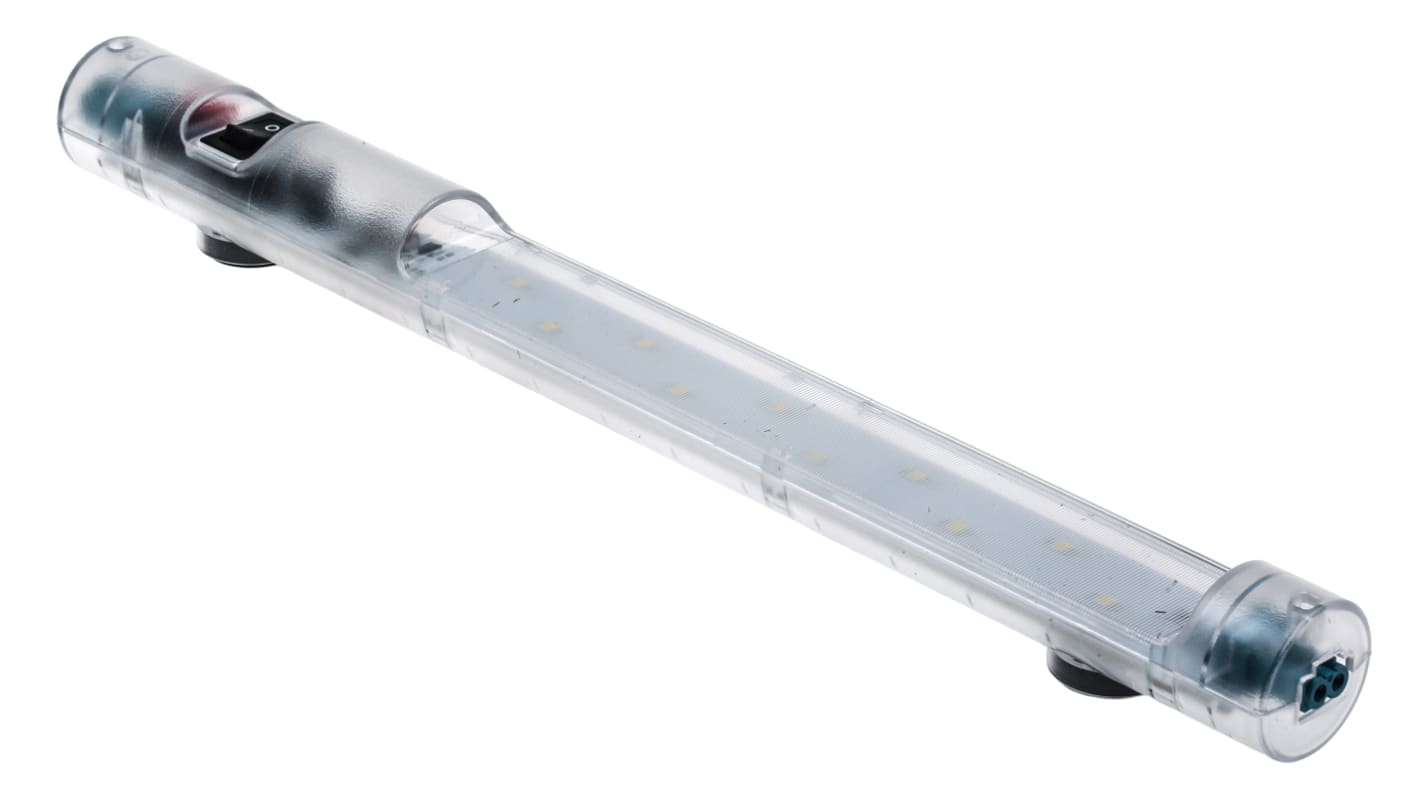

STEGO 5 W LED Enclosure Light, 12 V dc

  • RS Stock No. 810-3188
  • Mfr. Part No. 02540.2-00
  • Brand STEGO
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): DE
Product Details

LED Enclosure Lamp Magnet Fixing

These Enclosure light fittings have a very long service life, thanks to the use of LED technology.
LED light fittings are the ideal upgrade of conventional lighting, providing an economical replacement, with great energy savings and very low maintenance costs. The LED 025 Series fits in all types of panels and enclosures, they are ideal especially where space is limited. These LED lamps are operated by an on/off switch. The power output of these enclosure light fittings allows up to 10 lamps to be connected to each other (5 lamps for the 12Vdc version), connectors and cables are not included, they can be ordered separately, see accessories.
The LED lamps come with magnet fixing, for easy positioning in any steel cabinet or enclosure.

Wide voltage range
Integrated power unit
On/off switch
Magnet fixing
Daylight colour, 6,500k temperature
60,000 hours average life

Note

The lamp must not be used for household lighting

Specifications
Attribute Value
Lamp Type LED
Type On/off Enclosure Lamp
Voltage Rating 12 V dc
Depth 39 mm
Dimensions 32 (Dia.) x 39 mm
Diameter 32mm
Wattage 5 W
5 In stock - FREE next working day delivery available
Price Each
£ 87.52
(exc. VAT)
£ 105.02
(inc. VAT)
Units
Per unit
1 +
£87.52
