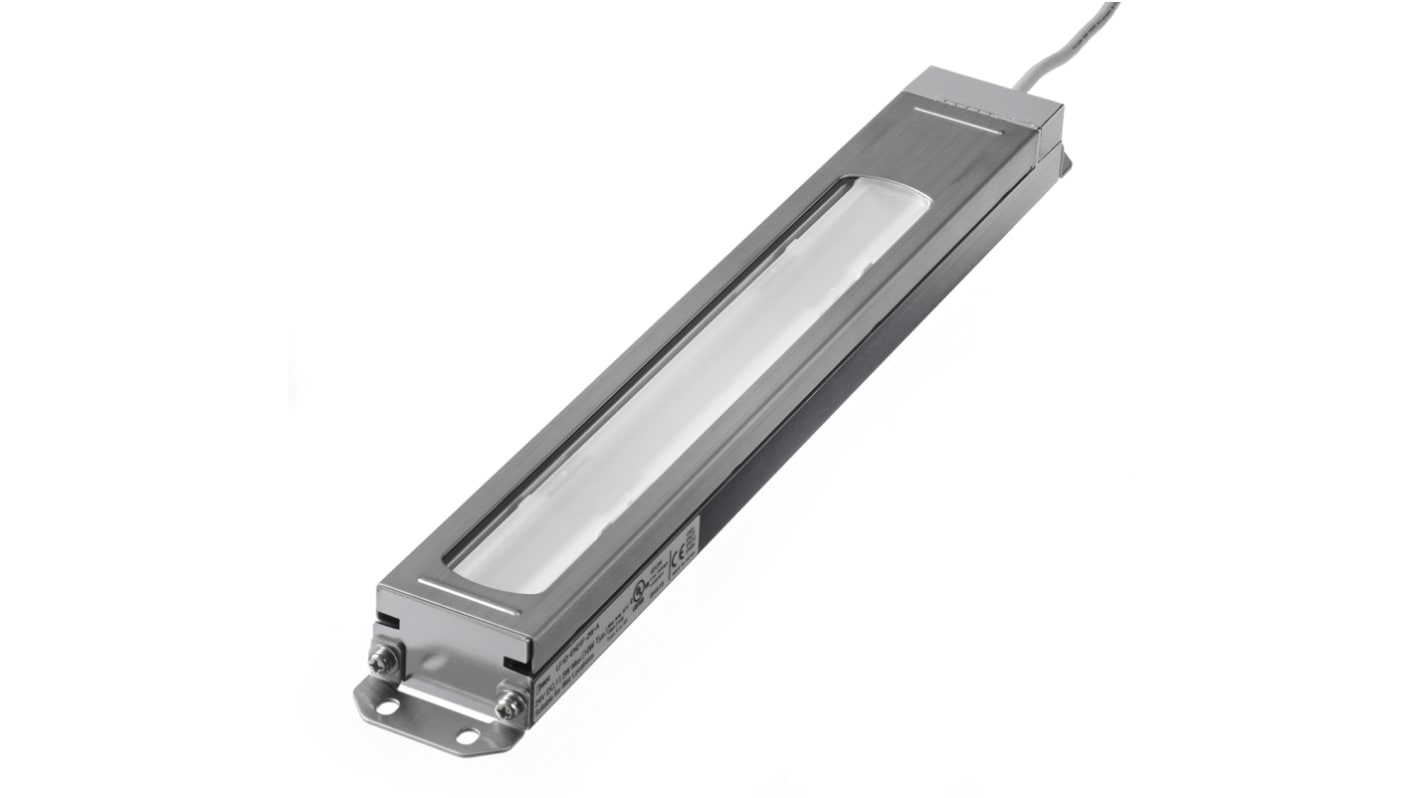

Idec LF1D-EN Series LED Cabinet Light, 24 V dc, 389 mm Length, 10 W, 5700K
- RS Stock No.:
- 182-4247
- Mfr. Part No.:
- LF1D-EN21F-2W-A
- Brand:
- Idec
- RS Stock No.:
- 182-4247
- Mfr. Part No.:
- LF1D-EN21F-2W-A
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Lamp Type | LED | |
| Type | Cabinet Light | |
| Cabinet Lighting Type | LED Illumination Unit | |
| Voltage Rating | 24 V dc | |
| Length | 389 mm | |
| Width | 49.8 mm | |
| Depth | 29.8 mm | |
| Wattage | 10 W | |
| Colour Temperature | 5700K | |
| Light Colour | White | |
| Series | LF1D-EN | |
| Model | LF1D-EN21F-2W-A | |
| Current Rating | 450 mA | |
| Lamp Supplied | Yes | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Lamp Type LED | ||
Type Cabinet Light | ||
Cabinet Lighting Type LED Illumination Unit | ||
Voltage Rating 24 V dc | ||
Length 389 mm | ||
Width 49.8 mm | ||
Depth 29.8 mm | ||
Wattage 10 W | ||
Colour Temperature 5700K | ||
Light Colour White | ||
Series LF1D-EN | ||
Model LF1D-EN21F-2W-A | ||
Current Rating 450 mA | ||
Lamp Supplied Yes | ||
- COO (Country of Origin):
- JP
With their rugged construction LF1D series are ideal for machine tools, automated label and package inspection equipment, and food and beverage processing equipment. The design provides equally brilliant light at the center or edges of the units. The LF1D can be used where high pressure and high temperature wash downs are used.
Brightness:
Slim: 66.6 Lumens/Watt
Wide: 67.2 Lumens/Watt
Life: 70% of initial luminance at 50,000 Hrs
Slim: 66.6 Lumens/Watt
Wide: 67.2 Lumens/Watt
Life: 70% of initial luminance at 50,000 Hrs
