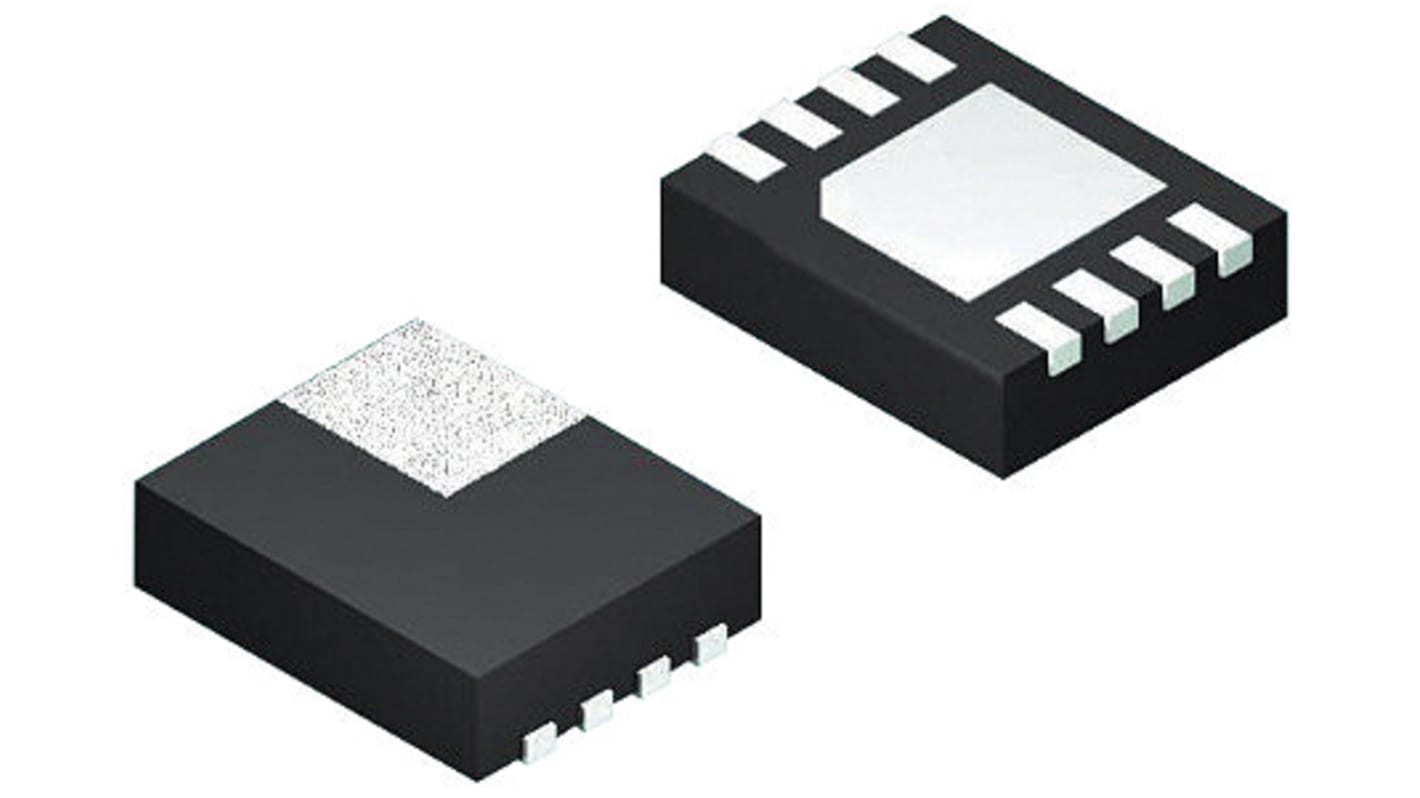

Texas Instruments, TPS62160DSGT Step-Down Switching Regulator, 1-Channel 1A Adjustable 8-Pin, WSON
- RS Stock No.:
- 825-6933
- Mfr. Part No.:
- TPS62160DSGT
- Brand:
- Texas Instruments
13405 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£1.504
(exc. VAT)
£1.805
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 45 | £1.504 | £7.52 |
| 50 - 120 | £1.248 | £6.24 |
| 125 - 245 | £1.174 | £5.87 |
| 250 - 370 | £1.098 | £5.49 |
| 375 + | £1.024 | £5.12 |
| *price indicative | ||
- RS Stock No.:
- 825-6933
- Mfr. Part No.:
- TPS62160DSGT
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) 9V to 30V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 1A |
| Maximum Output Voltage | 6 V |
| Regulator Function | Buck |
| Minimum Output Voltage | 0.9 V |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 17 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 8 |
| Maximum Switching Frequency | 2.25 MHz |
| Package Type | WSON |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.05 %/A |
| Minimum Operating Temperature | -40 °C |
| Length | 2.1mm |
| Maximum Operating Temperature | +85 °C |
| Dimensions | 2.1 x 2.1 x 0.75mm |
| Height | 0.75mm |
| Width | 2.1mm |
