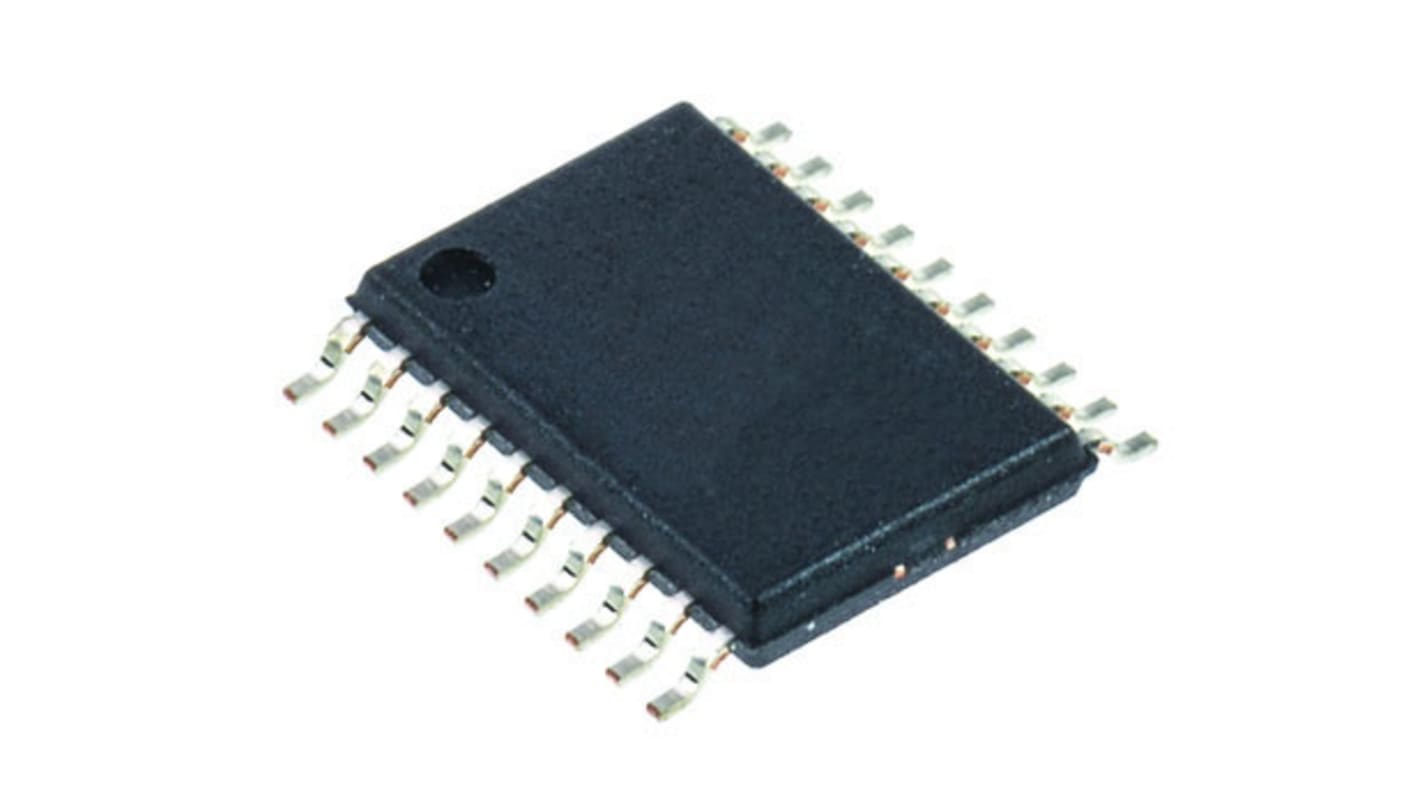

Texas Instruments, LM21212MH-1/NOPB Switching Regulator, 1-Channel 12A Adjustable 20-Pin, HTSSOP
- RS Stock No.:
- 813-6618
- Mfr. Part No.:
- LM21212MH-1/NOPB
- Brand:
- Texas Instruments
Discontinued
- RS Stock No.:
- 813-6618
- Mfr. Part No.:
- LM21212MH-1/NOPB
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Maximum Output Current | 12A | |
| Maximum Output Voltage | 5.5 V | |
| Regulator Function | Buck Controller | |
| Minimum Output Voltage | 0.6 V | |
| Minimum Input Voltage | 2.95 V | |
| Maximum Input Voltage | 5.5 V | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Pin Count | 20 | |
| Maximum Switching Frequency | 1.5 MHz | |
| Package Type | HTSSOP | |
| Switching Regulator | Yes | |
| Line Regulation | 0.1 %/V | |
| Load Regulation | 0.02 %/A | |
| Length | 6.5mm | |
| Height | 1mm | |
| Dimensions | 6.5 x 4.4 x 1mm | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Width | 4.4mm | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Maximum Output Current 12A | ||
Maximum Output Voltage 5.5 V | ||
Regulator Function Buck Controller | ||
Minimum Output Voltage 0.6 V | ||
Minimum Input Voltage 2.95 V | ||
Maximum Input Voltage 5.5 V | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Pin Count 20 | ||
Maximum Switching Frequency 1.5 MHz | ||
Package Type HTSSOP | ||
Switching Regulator Yes | ||
Line Regulation 0.1 %/V | ||
Load Regulation 0.02 %/A | ||
Length 6.5mm | ||
Height 1mm | ||
Dimensions 6.5 x 4.4 x 1mm | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Width 4.4mm | ||
Step-Down DC/DC Converters (Integrated Switch) up to 6V Input Max., LM Series, Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
