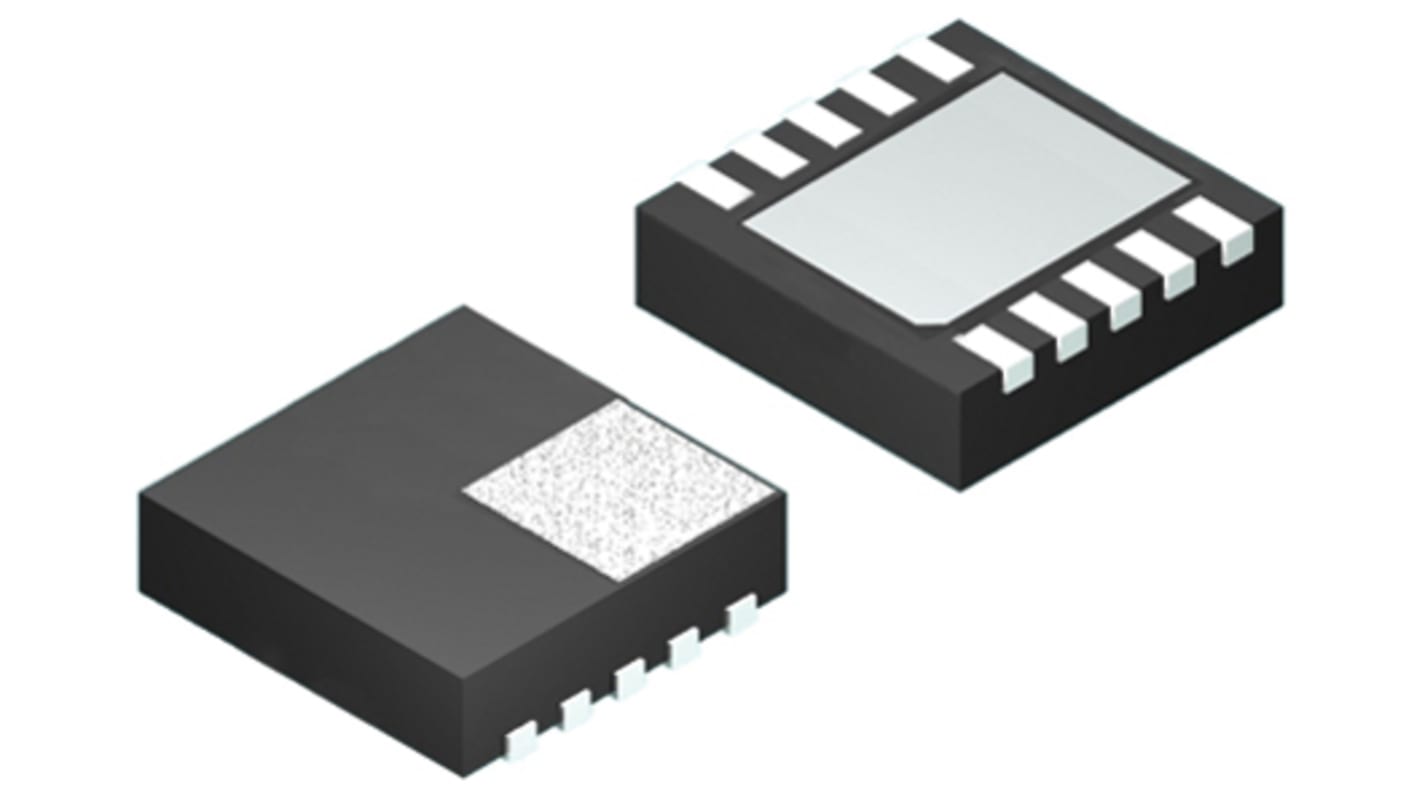

Texas Instruments, TPS62175DQCT DC-DC Converter, 1-Channel 500mA Adjustable 10-Pin, WSON
- RS Stock No.:
- 812-3729
- Mfr. Part No.:
- TPS62175DQCT
- Brand:
- Texas Instruments
40 In stock - FREE next working day delivery available
Price Each (In a Pack of 10)
£1.278
(exc. VAT)
£1.534
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
10 - 40 | £1.278 | £12.78 |
50 - 90 | £1.214 | £12.14 |
100 - 240 | £1.093 | £10.93 |
250 - 490 | £0.983 | £9.83 |
500 + | £0.935 | £9.35 |
*price indicative
- RS Stock No.:
- 812-3729
- Mfr. Part No.:
- TPS62175DQCT
- Brand:
- Texas Instruments
Technical Reference
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) 9V to 30V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
---|---|
Maximum Output Current | 500mA |
Maximum Output Voltage | 6 V |
Minimum Output Voltage | 1 V |
Minimum Input Voltage | 4.75 V |
Maximum Input Voltage | 28 V |
Output Type | Adjustable |
Mounting Type | Surface Mount |
Number of Outputs | 1 |
Maximum Switching Frequency | 1 MHz |
Pin Count | 10 |
Package Type | WSON |
Switching Regulator | Yes |
Line Regulation | 0.015 %/V |
Load Regulation | 0.02 %/A |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
Dimensions | 3.1 x 2.1 x 0.75mm |
Height | 0.75mm |
Width | 2.1mm |
Length | 3.1mm |
