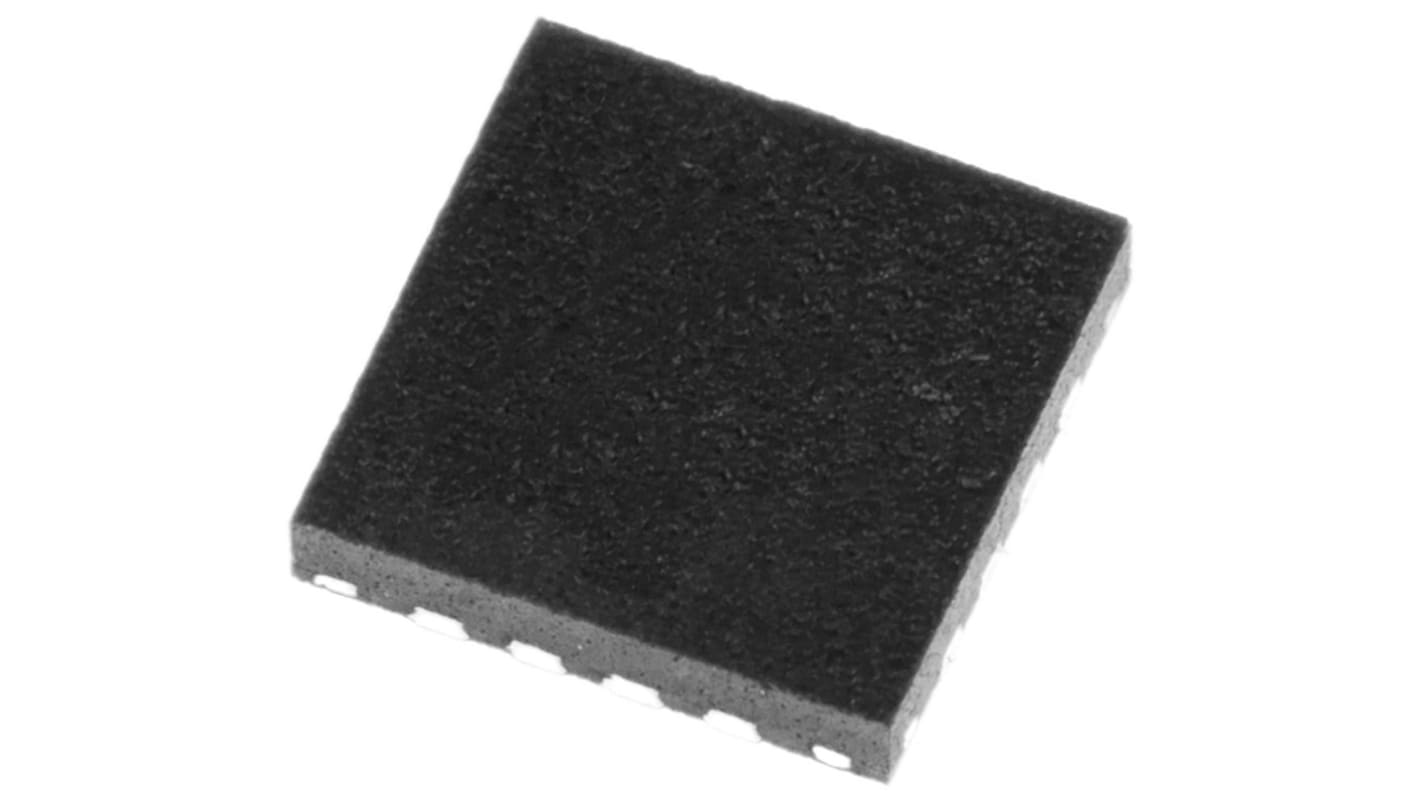

Texas Instruments, TPS62142RGTT Step-Down Switching Regulator, 1-Channel 2A 16-Pin, QFN
- RS Stock No.:
- 812-3716
- Mfr. Part No.:
- TPS62142RGTT
- Brand:
- Texas Instruments
Available to back order for despatch 08/07/2024
Added
Price Each (In a Pack of 5)
£1.472
(exc. VAT)
£1.766
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £1.472 | £7.36 |
| 25 - 45 | £1.398 | £6.99 |
| 50 - 120 | £1.258 | £6.29 |
| 125 - 245 | £1.132 | £5.66 |
| 250 + | £1.076 | £5.38 |
| *price indicative | ||
- RS Stock No.:
- 812-3716
- Mfr. Part No.:
- TPS62142RGTT
- Brand:
- Texas Instruments
Legislation and Compliance
Product Details
Step-Down DC/DC Converters (Integrated Switch) 9V to 30V Input Max., Texas Instruments
DC/DC Switching Regulator Converters (Integrated Switch), Texas Instruments
The range of highly integrated high-efficiency switching voltage regulators from Texas Instruments includes Step-up (Boost), Step-down (Buck), Step-up/down (Boost/Buck) and Inverting types providing efficient solutions for every DC Voltage Regulator application.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 2A |
| Maximum Output Voltage | 6 V |
| Regulator Function | Step Down |
| Minimum Output Voltage | 0.9 V |
| Minimum Input Voltage | 3 V |
| Maximum Input Voltage | 17 V |
| Output Type | Fixed |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Maximum Switching Frequency | 2.5 MHz |
| Pin Count | 16 |
| Package Type | QFN |
| Switching Regulator | Yes |
| Line Regulation | 0.02 %/V |
| Load Regulation | 0.05 %/A |
| Width | 3.15mm |
| Minimum Operating Temperature | -40 °C |
| Height | 0.95mm |
| Length | 3.15mm |
| Dimensions | 3.15 x 3.15 x 0.95mm |
| Maximum Operating Temperature | +85 °C |
