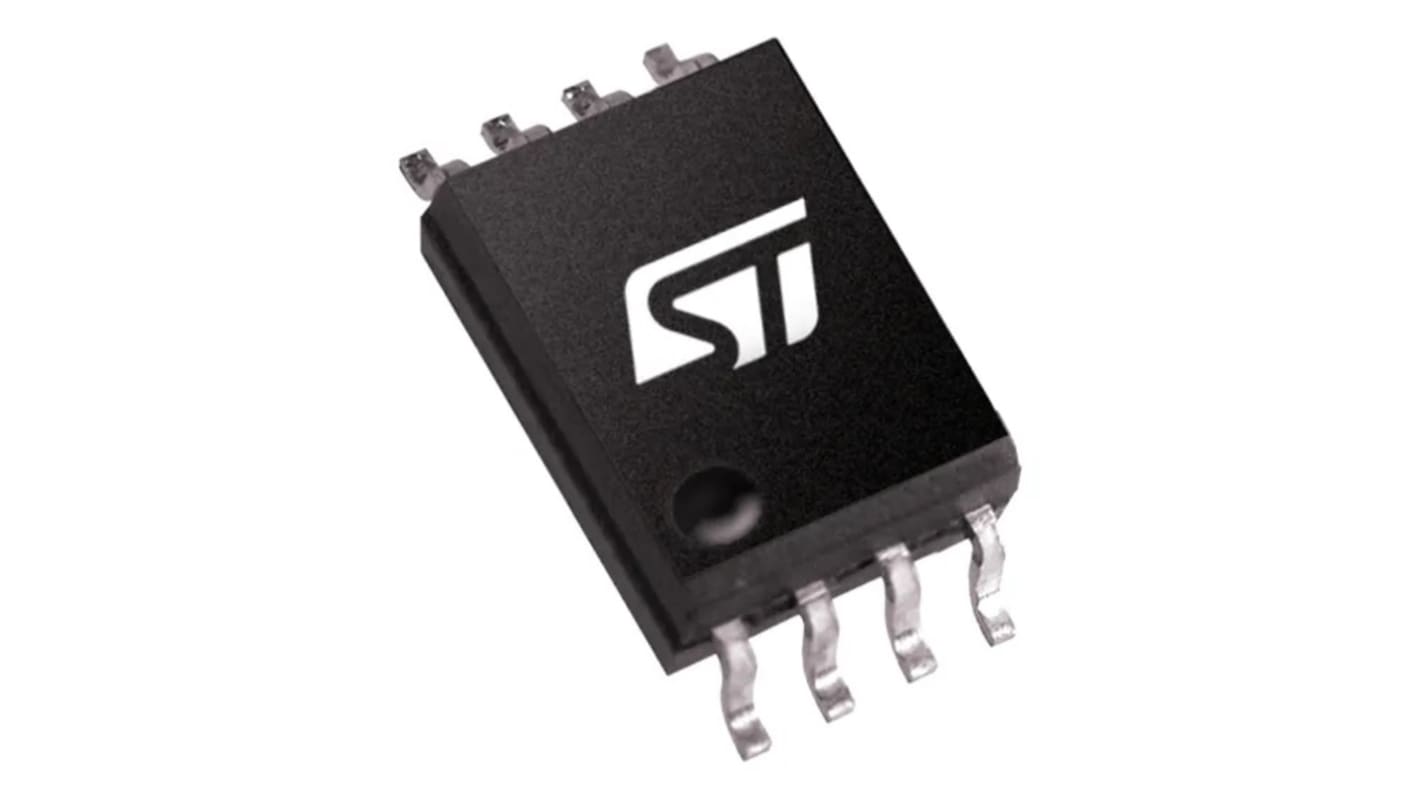

STMicroelectronics, L5970D013TR Step-Down Switching Regulator, 1-Channel 1A Adjustable 8-Pin, SO
- RS Stock No.:
- 714-0638
- Mfr. Part No.:
- L5970D013TR
- Brand:
- STMicroelectronics
Subtotal (1 unit)*
£1.55
(exc. VAT)
£1.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,312 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £1.55 |
*price indicative
- RS Stock No.:
- 714-0638
- Mfr. Part No.:
- L5970D013TR
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Maximum Output Current | 1A | |
| Regulator Function | Buck Controller | |
| Minimum Input Voltage | 4.4 V | |
| Maximum Input Voltage | 36 V | |
| Output Type | Adjustable | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Pin Count | 8 | |
| Maximum Switching Frequency | 275 kHz | |
| Package Type | SO | |
| Switching Regulator | Yes | |
| Line Regulation | 10 mV | |
| Load Regulation | 15 mV | |
| Height | 1.25mm | |
| Maximum Operating Temperature | +150 °C | |
| Efficiency | 90% | |
| Length | 5mm | |
| Width | 4mm | |
| Dimensions | 5 x 4 x 1.25mm | |
| Minimum Operating Temperature | -40 °C | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Maximum Output Current 1A | ||
Regulator Function Buck Controller | ||
Minimum Input Voltage 4.4 V | ||
Maximum Input Voltage 36 V | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Pin Count 8 | ||
Maximum Switching Frequency 275 kHz | ||
Package Type SO | ||
Switching Regulator Yes | ||
Line Regulation 10 mV | ||
Load Regulation 15 mV | ||
Height 1.25mm | ||
Maximum Operating Temperature +150 °C | ||
Efficiency 90% | ||
Length 5mm | ||
Width 4mm | ||
Dimensions 5 x 4 x 1.25mm | ||
Minimum Operating Temperature -40 °C | ||
Up to 1 A step down switching regulator
The L5970D is a step down monolithic power switching regulator capable to deliver up to 1A at output voltages from 1.2V to 35V.
The device uses an internal P-Channel D-MOS transistor (with a typical Rdson of 250mΩ) as switching element to minimize the size of the external components.
An internal oscillator fixes the switching frequency at 250KHz.
Having a minimum input voltage of 4.4V only, it is particularly suitable for 5V bus, available in all computer related applications.
Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
The device uses an internal P-Channel D-MOS transistor (with a typical Rdson of 250mΩ) as switching element to minimize the size of the external components.
An internal oscillator fixes the switching frequency at 250KHz.
Having a minimum input voltage of 4.4V only, it is particularly suitable for 5V bus, available in all computer related applications.
Pulse by pulse current limit with the internal frequency modulation offers an effective constant current short circuit protection.
Key features
- Inhibit for zero current consumption
- Internal current limiting
- Protection against feedback disconnection
- Synchronization
- Thermal shutdown
- Voltage feedforward
- 250KHz Internally fixed frequency
- Up to 1A output current
- 3.3V / (±2%) reference voltage
- Operating input voltage from 4.4V to 36V
- Low dropout operation: 100% duty cycle
- Zero load current operation
- Output voltage adjustable from 1.2V to 35V
