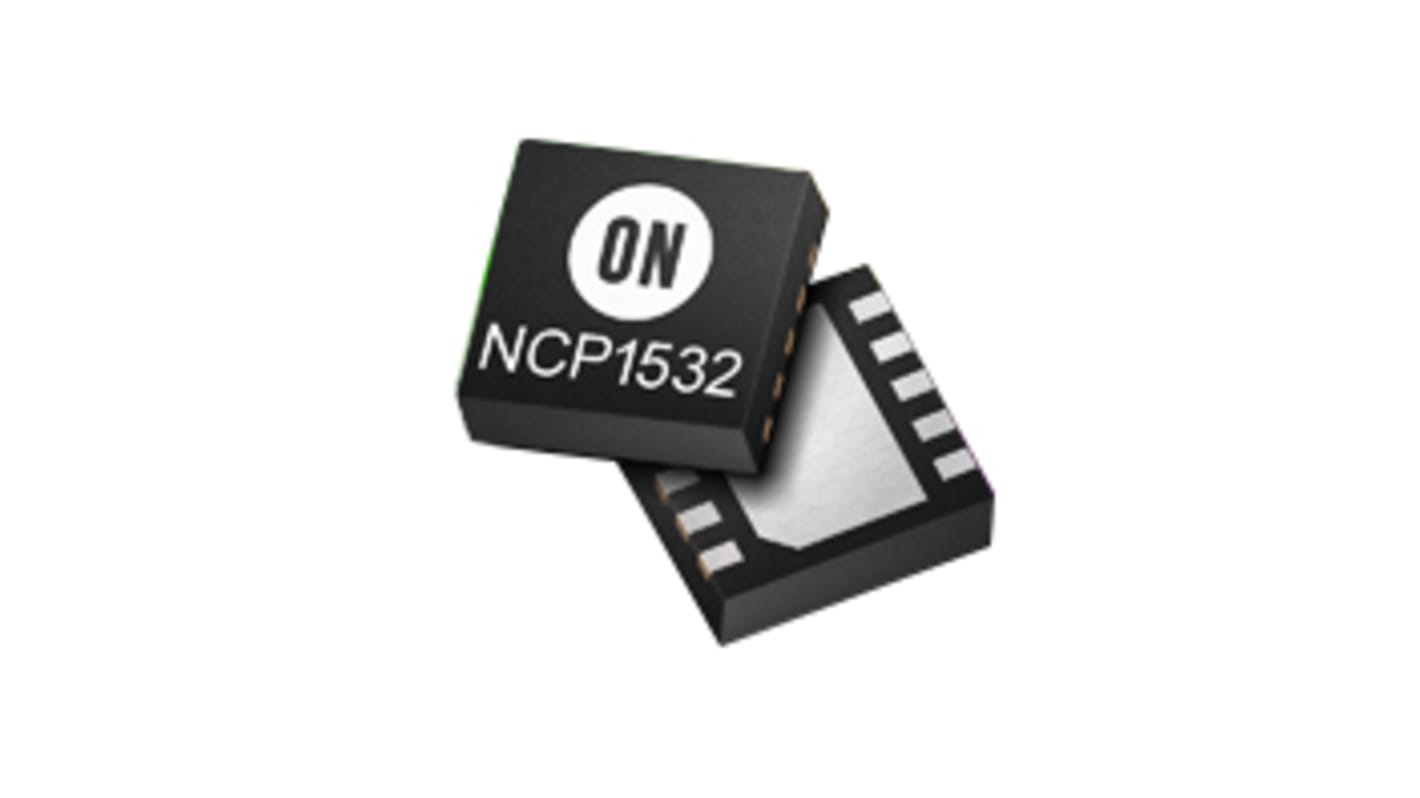

onsemi, NCP1532MUAATXG Step-Down Switching Regulator, 1-Channel 1.6A Adjustable 10-Pin, UDFN
- RS Stock No.:
- 161-2655
- Mfr. Part No.:
- NCP1532MUAATXG
- Brand:
- onsemi
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 161-2655
- Mfr. Part No.:
- NCP1532MUAATXG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | onsemi | |
Maximum Output Current | 1.6A | |
Maximum Output Voltage | 3.3 V | |
Regulator Function | Step Down | |
Minimum Output Voltage | 0.9 V | |
Minimum Input Voltage | 2.7 V | |
Maximum Input Voltage | 5.5 V | |
Output Type | Adjustable | |
Mounting Type | Surface Mount | |
Number of Outputs | 1 | |
Maximum Switching Frequency | 2.25 MHz | |
Pin Count | 10 | |
Package Type | UDFN | |
Switching Regulator | Yes | |
Line Regulation | 0.05 % | |
Load Regulation | -0.6 % | |
Dimensions | 3 x 3 x 0.5mm | |
Height | 0.5mm | |
Length | 3mm | |
Efficiency | 97% | |
Maximum Operating Temperature | +85 °C | |
Width | 3mm | |
Minimum Operating Temperature | -40 °C | |
Select all | ||
---|---|---|
Brand onsemi | ||
Maximum Output Current 1.6A | ||
Maximum Output Voltage 3.3 V | ||
Regulator Function Step Down | ||
Minimum Output Voltage 0.9 V | ||
Minimum Input Voltage 2.7 V | ||
Maximum Input Voltage 5.5 V | ||
Output Type Adjustable | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 2.25 MHz | ||
Pin Count 10 | ||
Package Type UDFN | ||
Switching Regulator Yes | ||
Line Regulation 0.05 % | ||
Load Regulation -0.6 % | ||
Dimensions 3 x 3 x 0.5mm | ||
Height 0.5mm | ||
Length 3mm | ||
Efficiency 97% | ||
Maximum Operating Temperature +85 °C | ||
Width 3mm | ||
Minimum Operating Temperature -40 °C | ||
- COO (Country of Origin):
- TH
The NCP1532 dual step down DCDC converter is a monolithic integrated circuit dedicated to supply core and I/O voltages of new multimedia design in portable applications powered from 1-cell Li-ion or 3 cell Alkaline/NiCd/NiMH batteries. Both channels are externally adjustable from 0.9V to 3.3V and can source totally up to 1.6A, 1.0A maximum per channel. Converters are running at 2.25MHz switching frequency which reduces component size by allowing the use of small inductor (down to 1uH) and capacitors and operates 180 degrees out of phase to reduce large amount of current demand on the battery.
97% efficiency, 50uA quiescent current, 0.3 uA shutdown current
2.25MHz switching frequency
Mode pin operation : Auto-switching PWM/PFM mode at light loading or PWM mode only
Adjustable outputs voltage from 0.9V to 3.3V
POR on reset output pin
Can source up to 1.6A, 1.0A max per channel (800mA/800mA or 1.0A/600mA)
Extends battery life and 'play-time'
Allows use of smaller inductor and capacitor
2.25MHz switching frequency
Mode pin operation : Auto-switching PWM/PFM mode at light loading or PWM mode only
Adjustable outputs voltage from 0.9V to 3.3V
POR on reset output pin
Can source up to 1.6A, 1.0A max per channel (800mA/800mA or 1.0A/600mA)
Extends battery life and 'play-time'
Allows use of smaller inductor and capacitor
