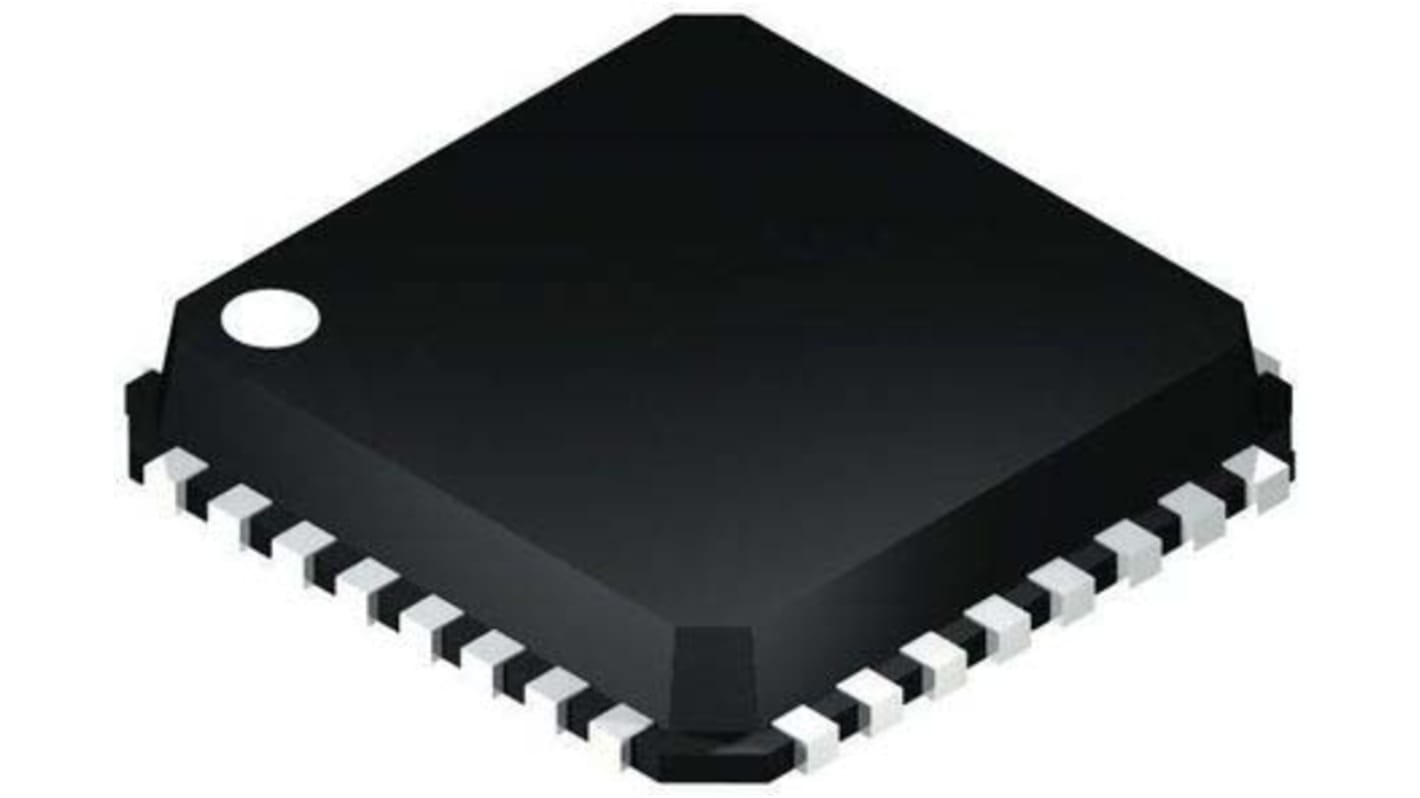

Analog Devices, ADP2116ACPZ-R7 Step-Down Switching Regulator Dual-Channel 6A Adjustable 32-Pin, LFCSP

View all Buck Converters
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
153-3216
Mfr. Part No.:
ADP2116ACPZ-R7
Brand:
Analog Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Analog Devices

Maximum Output Current

6A

Maximum Output Voltage

3.3 V

Regulator Function

Step Down

Minimum Output Voltage

0.6 V

Minimum Input Voltage

2.75 V

Maximum Input Voltage

5.5 V

Output Type

Adjustable

Mounting Type

Surface Mount

Number of Outputs

2

Maximum Switching Frequency

2 MHz

Pin Count

32

Package Type

LFCSP

Switching Regulator

Yes

Line Regulation

0.05 %/V

Load Regulation

0.03 %/A

Maximum Operating Temperature

+85 °C

Length

5.1mm

Height

0.75mm

Width

5.1mm

Efficiency

95%

Minimum Operating Temperature

-40 °C

Dimensions

5.1 x 5.1 x 0.75mm

The ADP2116 is a versatile, synchronous, step-down switching regulator that satisfies a wide range of customer point-of-load requirements. The two PWM channels can be configured to deliver independent outputs at 3 A and 3 A (or at 3 A and 2 A) or can be configured as a single interleaved output capable of delivering 6 A. The two PWM channels are 180° phase shifted to reduce input ripple current and input capacitance.The ADP2116 provides high efficiency and can operate at switching frequencies of up to 2 MHz.

Configurable 3 A/3 A or 3 A/2 A dual-output load combinations or 6 A combined single-output load
High efficiency: up to 95%
Selectable switching frequency of 300 kHz, 600 kHz, 1.2 MHz, or synchronized from 200 kHz to 2 MHz
Optimized gate slew rate for reduced EMI
External synchronization input or internal clock output
Dual-phase, 180° phase-shifted PWM channels
Current mode for fast transient response
Pulse skip mode with light loads or forced PWM operation
