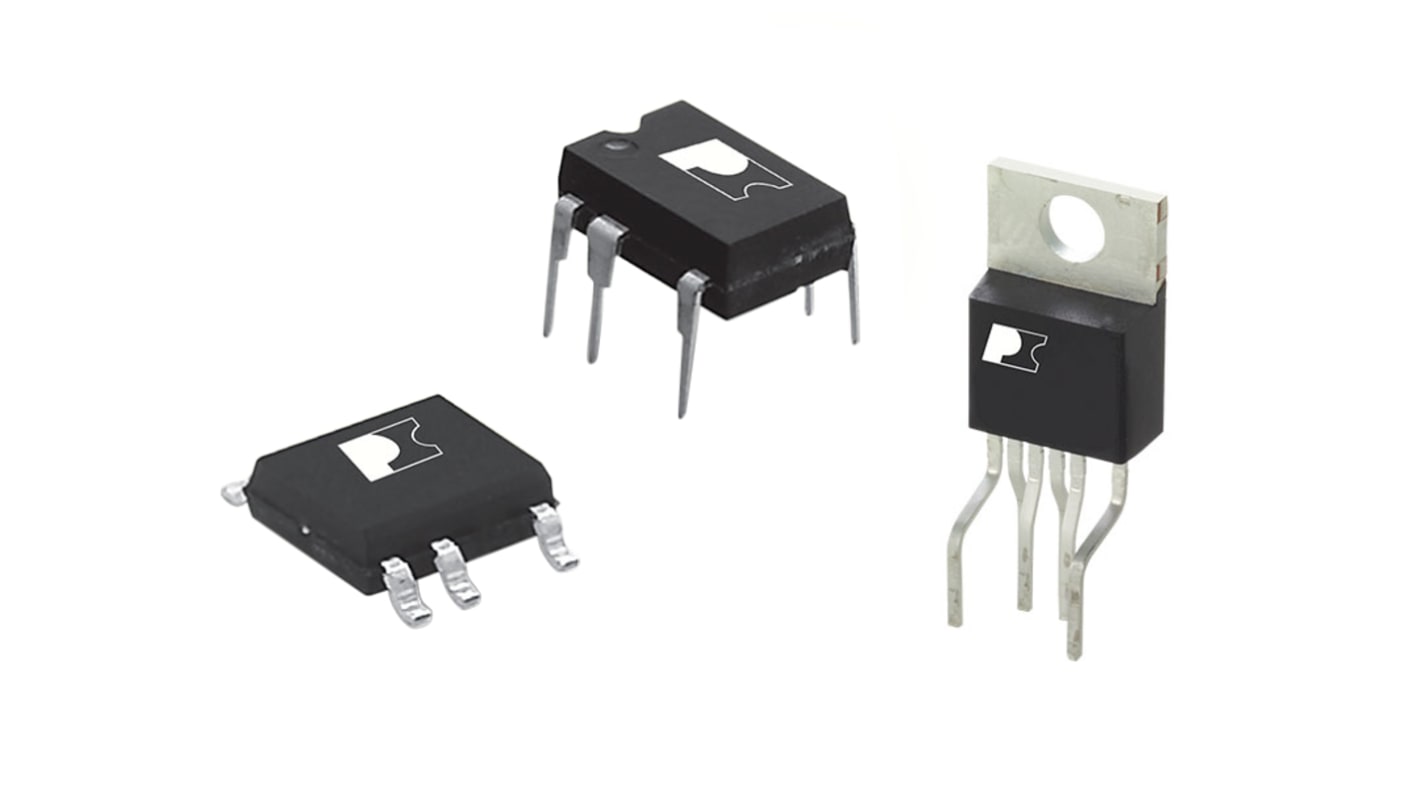

Power Integrations, TNY267GNStep-Down Switching Regulator, 1-Channel 8-Pin, SMDC
- RS Stock No.:
- 146-5673
- Mfr. Part No.:
- TNY267GN
- Brand:
- Power Integrations
Discontinued
- RS Stock No.:
- 146-5673
- Mfr. Part No.:
- TNY267GN
- Brand:
- Power Integrations
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Power Integrations | |
| Regulator Function | Buck | |
| Minimum Input Voltage | 85 V ac | |
| Maximum Input Voltage | 265 V ac | |
| Output Type | Fixed | |
| Mounting Type | Surface Mount | |
| Number of Outputs | 1 | |
| Maximum Switching Frequency | 140 kHz | |
| Pin Count | 8 | |
| Package Type | SMDC | |
| Minimum Operating Temperature | -40 °C | |
| Efficiency | 78% | |
| Width | 6.6mm | |
| Height | 3.6mm | |
| Length | 9.83mm | |
| Dimensions | 9.83 x 6.6 x 3.68mm | |
| Maximum Operating Temperature | +150 °C | |
| Select all | ||
|---|---|---|
Brand Power Integrations | ||
Regulator Function Buck | ||
Minimum Input Voltage 85 V ac | ||
Maximum Input Voltage 265 V ac | ||
Output Type Fixed | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Maximum Switching Frequency 140 kHz | ||
Pin Count 8 | ||
Package Type SMDC | ||
Minimum Operating Temperature -40 °C | ||
Efficiency 78% | ||
Width 6.6mm | ||
Height 3.6mm | ||
Length 9.83mm | ||
Dimensions 9.83 x 6.6 x 3.68mm | ||
Maximum Operating Temperature +150 °C | ||
RoHS Status: Not Applicable
TinySwitch™-II integrates a 700 V power MOSFET, oscillator, high voltage switched current source, current limit and thermal shutdown circuitry onto a monolithic device. The start-up and operating power are derived directly from the voltage on the DRAIN pin, eliminating the need for a bias winding and associated circuitry. In addition, the TinySwitch-II devices incorporate auto-restart, line undervoltage sense, and frequency jittering.
Fully integrated auto-restart for short circuit and open loop fault protection – saves external component costs
Programmable line under-voltage detect feature prevents power on/off glitches – saves external components
Frequency jittering dramatically reduces EMI (∼10 dB) – minimizes EMI filter component costs
132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size
Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer
Programmable line under-voltage detect feature prevents power on/off glitches – saves external components
Frequency jittering dramatically reduces EMI (∼10 dB) – minimizes EMI filter component costs
132 kHz operation reduces transformer size – allows use of EF12.6 or EE13 cores for low cost and small size
Built-in circuitry practically eliminates audible noise with ordinary dip-varnished transformer
