Step-Down (Buck) Regulators, Internal Power Switch, Linear Technology

Linear Technology offers a selection of step down (buck) switching regulators with both synchronous and non-synchronous internal switches. They are capable of offering 2.25V up to 30V input voltages and a variety of switching frequencies. Distributed power systems, battery powered instruments and point of load power supply are amongst several applications they may be used.

Switching Voltage Regulators, Linear Technology

Linear Technology product series of synchronous and non-synchronous internal switching regulator ICs offer high efficiency plus a wide input voltage range and switching frequencies up to 4MHz.
The controllers span over several types of configurations from buck (step-down), boost (step-up), buck-boost, forward, Isolated, Inverting and flyback controllers. The Flyback, Forward and Isolated Controllers primary and secondary side provide a solution to help replace the DC/DC bricks that get used in back-plane power conversion.

Select all	Attribute	Value
	Brand	Analog Devices
	Maximum Output Current	5A
	Maximum Output Voltage	5.5 V
	Regulator Function	Step Down
	Minimum Output Voltage	0.6 V
	Minimum Input Voltage	4 V
	Maximum Input Voltage	20 V dc
	Output Type	Adjustable
	Mounting Type	Surface Mount
	Number of Outputs	1
	Pin Count	25
	Maximum Switching Frequency	1 MHz
	Package Type	BGA
	Switching Regulator	Yes
	Line Regulation	0.15 %/V
	Load Regulation	1.5 %
	Dimensions	6.25 x 6.25 x 5.21mm
	Minimum Operating Temperature	-40 °C
	Length	6.25mm
	Width	6.25mm
	Height	5.21mm
	Maximum Operating Temperature	+125 °C

	Select all
	Brand Analog Devices
	Maximum Output Current 5A
	Maximum Output Voltage 5.5 V
	Regulator Function Step Down
	Minimum Output Voltage 0.6 V
	Minimum Input Voltage 4 V
	Maximum Input Voltage 20 V dc
	Output Type Adjustable
	Mounting Type Surface Mount
	Number of Outputs 1
	Pin Count 25
	Maximum Switching Frequency 1 MHz
	Package Type BGA
	Switching Regulator Yes
	Line Regulation 0.15 %/V
	Load Regulation 1.5 %
	Dimensions 6.25 x 6.25 x 5.21mm
	Minimum Operating Temperature -40 °C
	Length 6.25mm
	Width 6.25mm
	Height 5.21mm
	Maximum Operating Temperature +125 °C

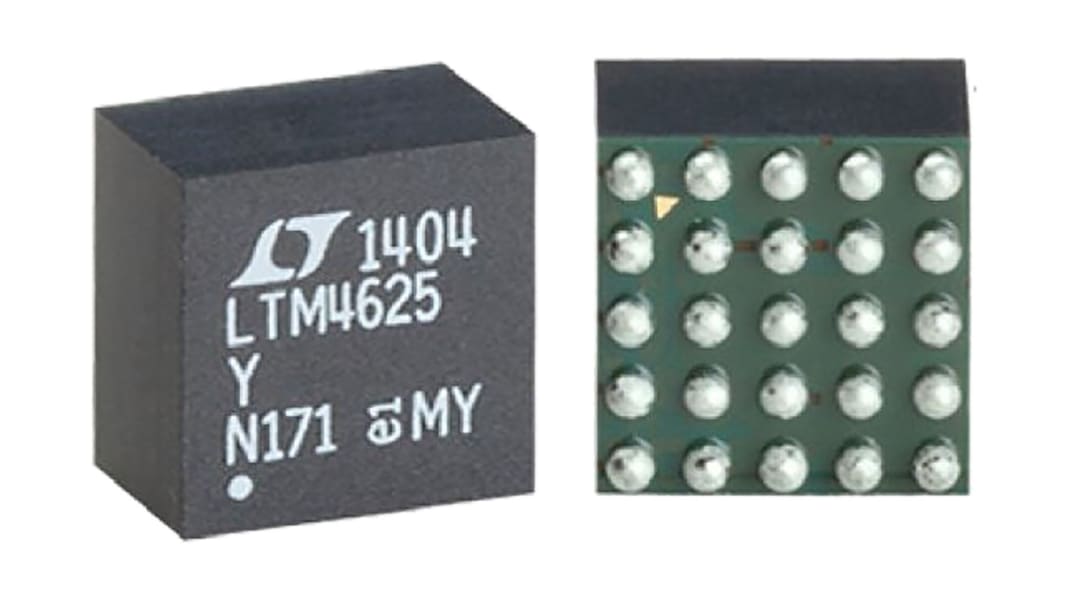

Analog Devices, LTM4625EY#PBF Switching Regulator, 1-Channel 5A Adjustable 25-Pin, BGA

Step-Down (Buck) Regulators, Internal Power Switch, Linear Technology
