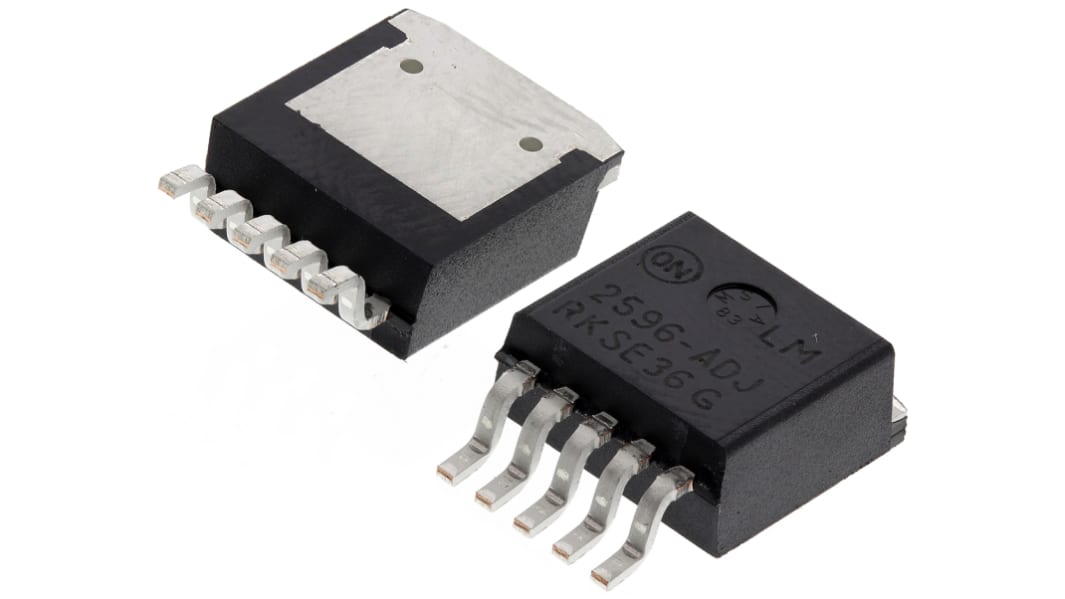

onsemi, LM2596DSADJR4G Switching Regulator, 1-Channel 3A Adjustable 5-Pin, D2PAK
- RS Stock No.:
- 121-6369
- Mfr. Part No.:
- LM2596DSADJR4G
- Brand:
- onsemi
800 In stock - FREE next working day delivery available
Added
Price Each (On a Reel of 800)
£0.98
(exc. VAT)
£1.18
(inc. VAT)
| Units | Per unit | Per Reel* |
| 800 + | £0.98 | £784.00 |
| *price indicative | ||
- RS Stock No.:
- 121-6369
- Mfr. Part No.:
- LM2596DSADJR4G
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- MY
Product Details
Switching Regulators, Step-Down DC-DC Converters, ON Semiconductor
Current mode and voltage mode DC-DC Converters for buck (Step-down), boost (step-up) and flyback applications.
Specifications
Attribute | Value |
|---|---|
| Maximum Output Current | 3A |
| Maximum Output Voltage | 37 V |
| Regulator Function | Buck Controller |
| Minimum Output Voltage | 1.23 V |
| Minimum Input Voltage | 4.5 V |
| Maximum Input Voltage | 40 V |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Pin Count | 5 |
| Maximum Switching Frequency | 150 kHz |
| Package Type | D2PAK |
| Switching Regulator | Yes |
| Height | 9.347mm |
| Width | 4.572mm |
| Dimensions | 10.236 x 4.572 x 9.347mm |
| Maximum Operating Temperature | +125 °C |
| Length | 10.24mm |
| Minimum Operating Temperature | -40 °C |
