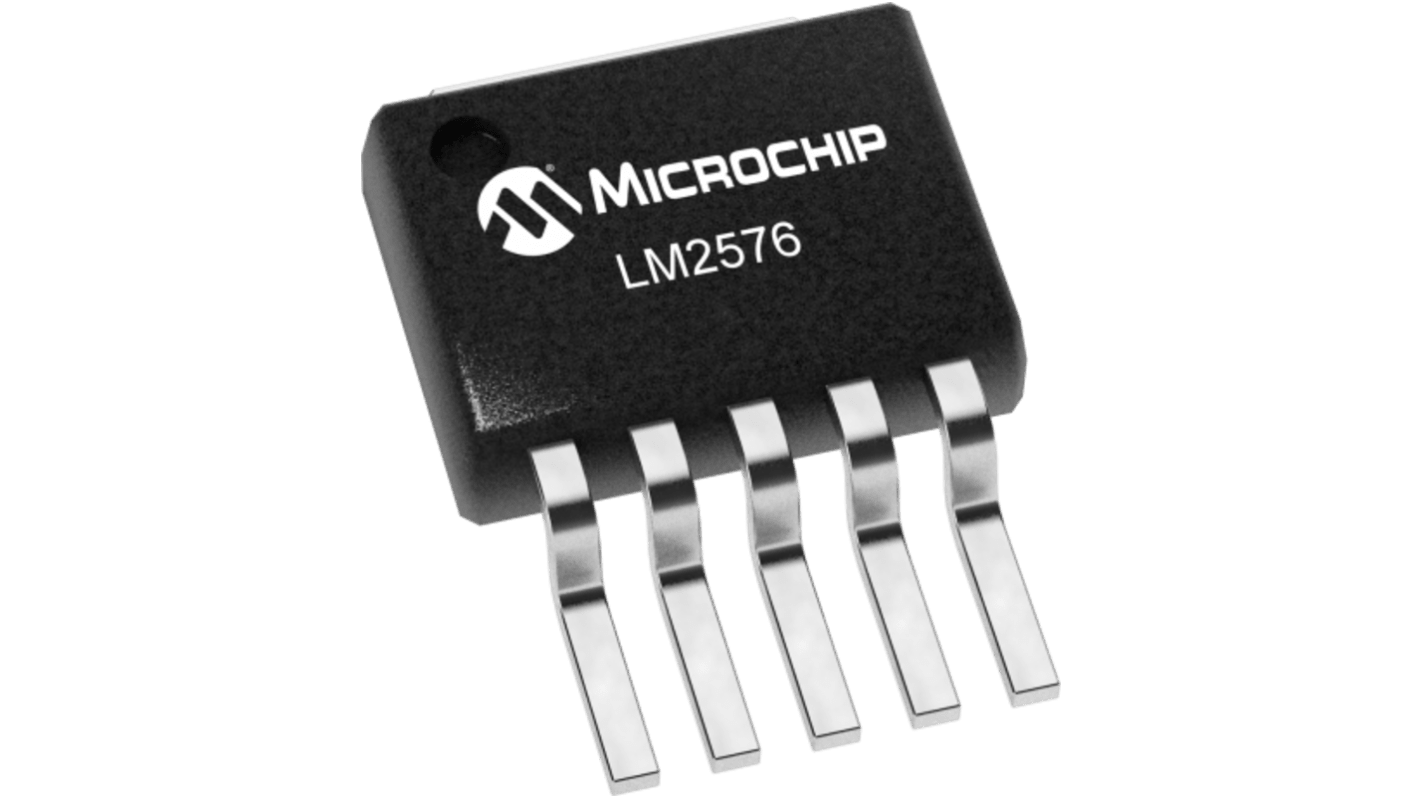

Microchip, LM2576WU Step-Down Switching Regulator, 1-Channel 0.003A Adjustable 5-Pin, DDPAK
- RS Stock No.:
- 649-437
- Mfr. Part No.:
- LM2576WU
- Brand:
- Microchip
Bulk discount available
Subtotal (1 pack of 2 units)*
£2.84
(exc. VAT)
£3.40
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
2 - 18 | £1.42 | £2.84 |
20 - 48 | £1.25 | £2.50 |
50 - 198 | £1.125 | £2.25 |
200 - 998 | £0.91 | £1.82 |
1000 + | £0.89 | £1.78 |
*price indicative
- RS Stock No.:
- 649-437
- Mfr. Part No.:
- LM2576WU
- Brand:
- Microchip
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Microchip | |
Maximum Output Current | 0.003A | |
Maximum Output Voltage | 37 V | |
Regulator Function | Buck Converter | |
Minimum Output Voltage | 1.23 V | |
Minimum Input Voltage | 4 V | |
Output Type | Adjustable | |
Number of Outputs | 1 | |
Pin Count | 5 | |
Package Type | DDPAK | |
Select all | ||
---|---|---|
Brand Microchip | ||
Maximum Output Current 0.003A | ||
Maximum Output Voltage 37 V | ||
Regulator Function Buck Converter | ||
Minimum Output Voltage 1.23 V | ||
Minimum Input Voltage 4 V | ||
Output Type Adjustable | ||
Number of Outputs 1 | ||
Pin Count 5 | ||
Package Type DDPAK | ||
- COO (Country of Origin):
- CN
The Microchip Monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, or 12V fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving a 3A load with excellent line and load regulation. These regulators are simple to use because they require a minimum number of external components and include internal frequency compensation and a fixed-frequency oscillator.
Uses readily available standard inductors
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
Thermal shutdown and current limit protection
100% electrical thermal limit burn-in
