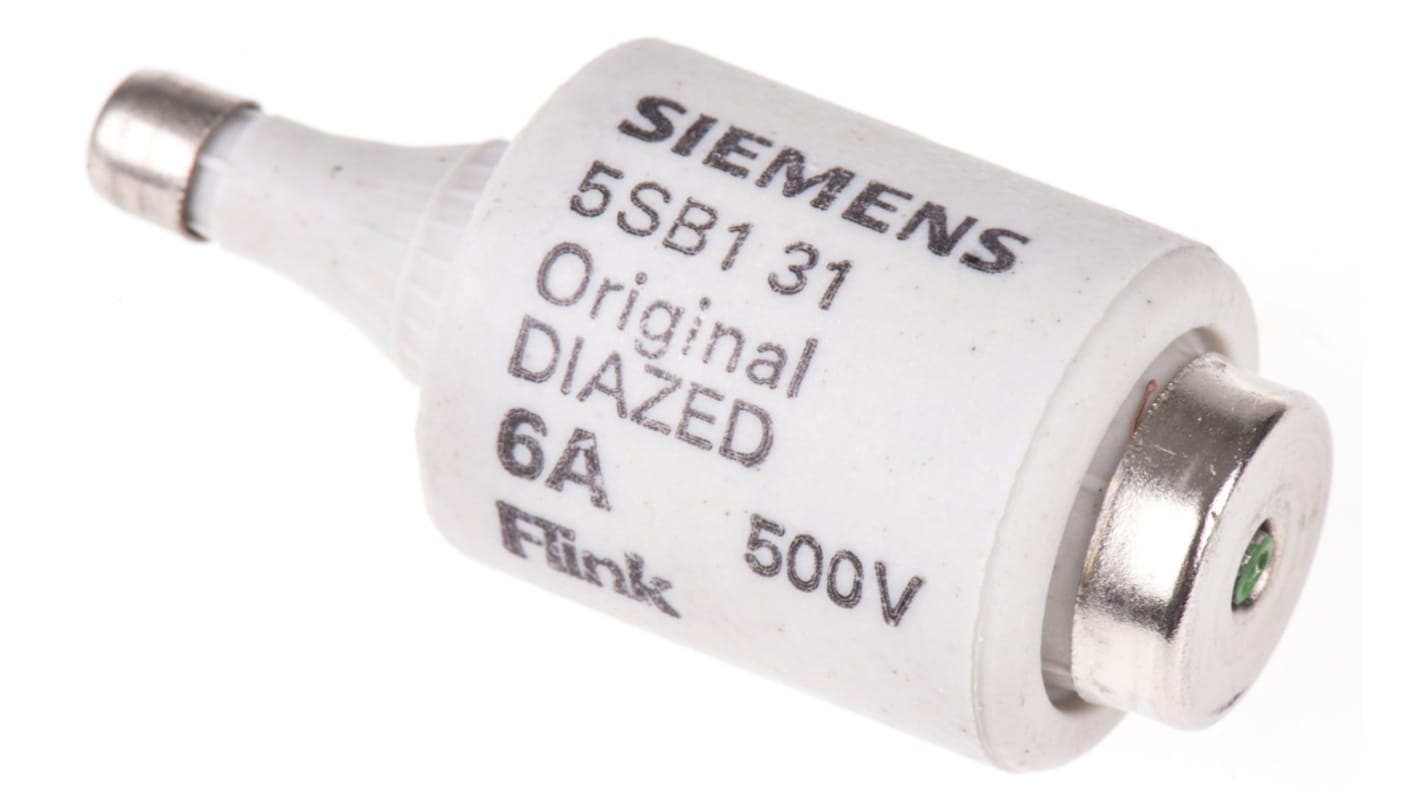

Siemens 6A DII Diazed Fuse, E27 Thread Size, gG, 500V ac

  • RS Stock No. 395-591
  • Mfr. Part No. 5SB131
  • Brand Siemens
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
COO (Country of Origin): SI
Product Details

DIAZED Fuses, Size DII, Type gG Quick-Acting

DIAZED fuse links, 5SB1 Series
Operating class gG
Characteristic: quick-acting

Note

1) Use with 6 A fitting screw

Standards

IEC 60269, DIN VDE 0635, DIN VDE 0636-3, CEE 16

Standards

IEC 60269, DIN VDE 0635, DIN VDE 0636-3, CEE 16

Specifications
Attribute Value
Current Rating 6 A
Bottle Fuse Size DII
Voltage Rating 500 V ac
Application Category GG
Thread Size E27
Breaking Capacity at Maximum Voltage Rating 8 kA @ 500 V dc, 50 kA @ 500 V ac
Minimum Operating Temperature -5°C
Maximum Operating Temperature +40°C
Gauge/Cap Colour Green
Body Material Ceramic
Available to back order for despatch when stock is available
Price Each (In a Pack of 5)
£ 3.13
(exc. VAT)
£ 3.76
(inc. VAT)
Units
Per unit
Per Pack*
5 - 120
£3.13
£15.65
125 - 495
£2.984
£14.92
500 - 1245
£2.852
£14.26
1250 - 2495
£2.772
£13.86
2500 +
£2.694
£13.47
*price indicative
