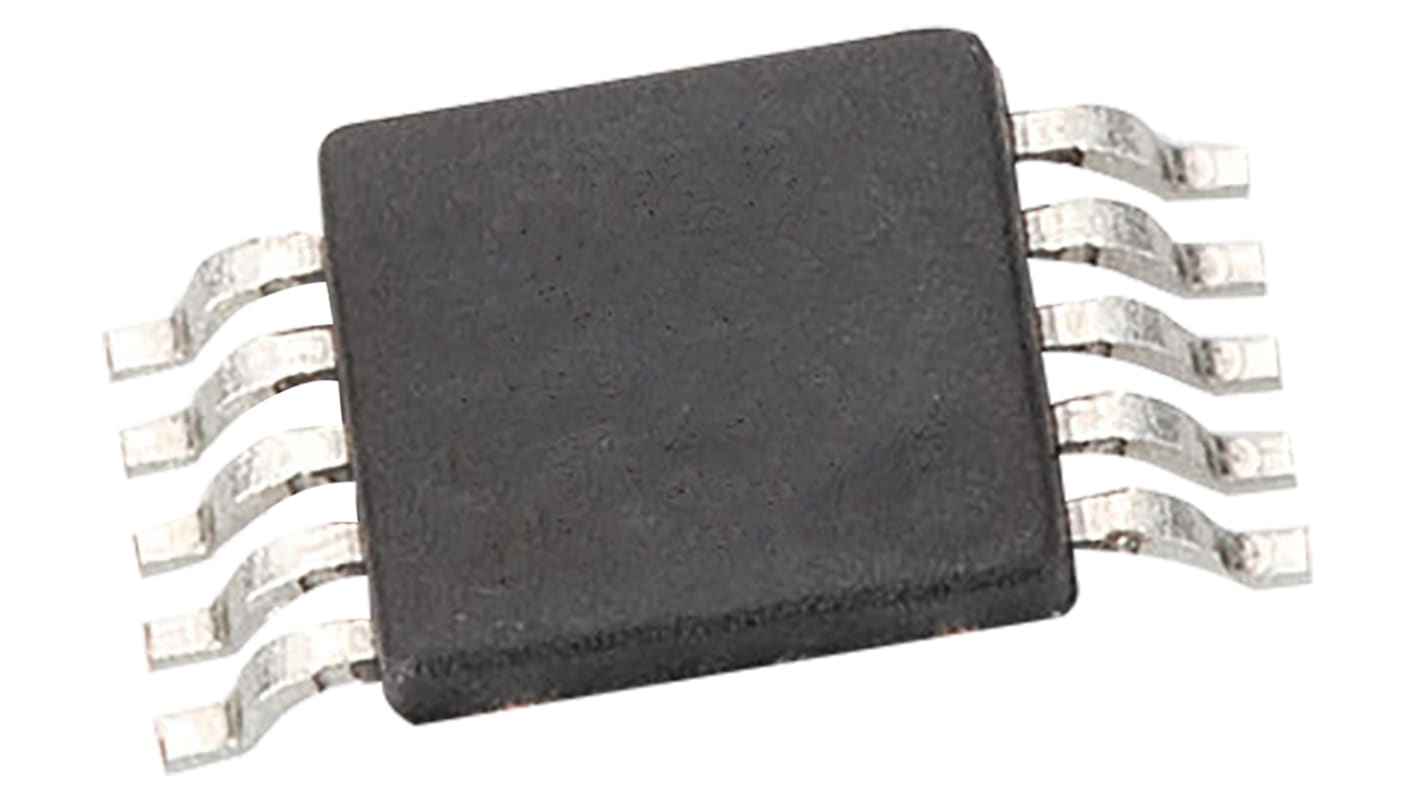

DiodesZetex AP6714M10G-13, Boost Converter, Step Up 5μA Adjustable, 1.8 MHz 10-Pin, MSOP
- RS Stock No.:
- 751-3020P
- Mfr. Part No.:
- AP6714M10G-13
- Brand:
- DiodesZetex
Available to back order for despatch 16/01/2025
Added
Price Each (Supplied on a Reel) Quantities below 150 on continuous strip
£0.606
(exc. VAT)
£0.727
(inc. VAT)
| Units | Per unit |
| 50 - 240 | £0.606 |
| 250 - 1240 | £0.41 |
| 1250 - 2490 | £0.348 |
| 2500 + | £0.339 |
- RS Stock No.:
- 751-3020P
- Mfr. Part No.:
- AP6714M10G-13
- Brand:
- DiodesZetex
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Step-Up Switching Regulators, Diodes Inc
Switching Voltage Regulators, Diodes Inc
Specifications
Attribute | Value |
|---|---|
| Regulator Function | Step Up |
| Maximum Output Current | 5µA |
| Maximum Input Voltage | 5.5 V |
| Number of Outputs | 1 |
| Line Regulation | 5 mV |
| Load Regulation | 10 mV |
| Mounting Type | Surface Mount |
| Package Type | MSOP |
| Pin Count | 10 |
| Output Type | Adjustable |
| Maximum Switching Frequency | 1.8 MHz |
| Efficiency | 94% |
| Dimensions | 2.95 x 2.95 x 0.95mm |
| Maximum Output Voltage | 5.5 V |
| Height | 0.95mm |
| Minimum Input Voltage | 0.9 V |
| Minimum Output Voltage | 1.8 V |
| Minimum Operating Temperature | -40 °C |
| Width | 2.95mm |
| Length | 2.95mm |
| Maximum Operating Temperature | +125 °C |
