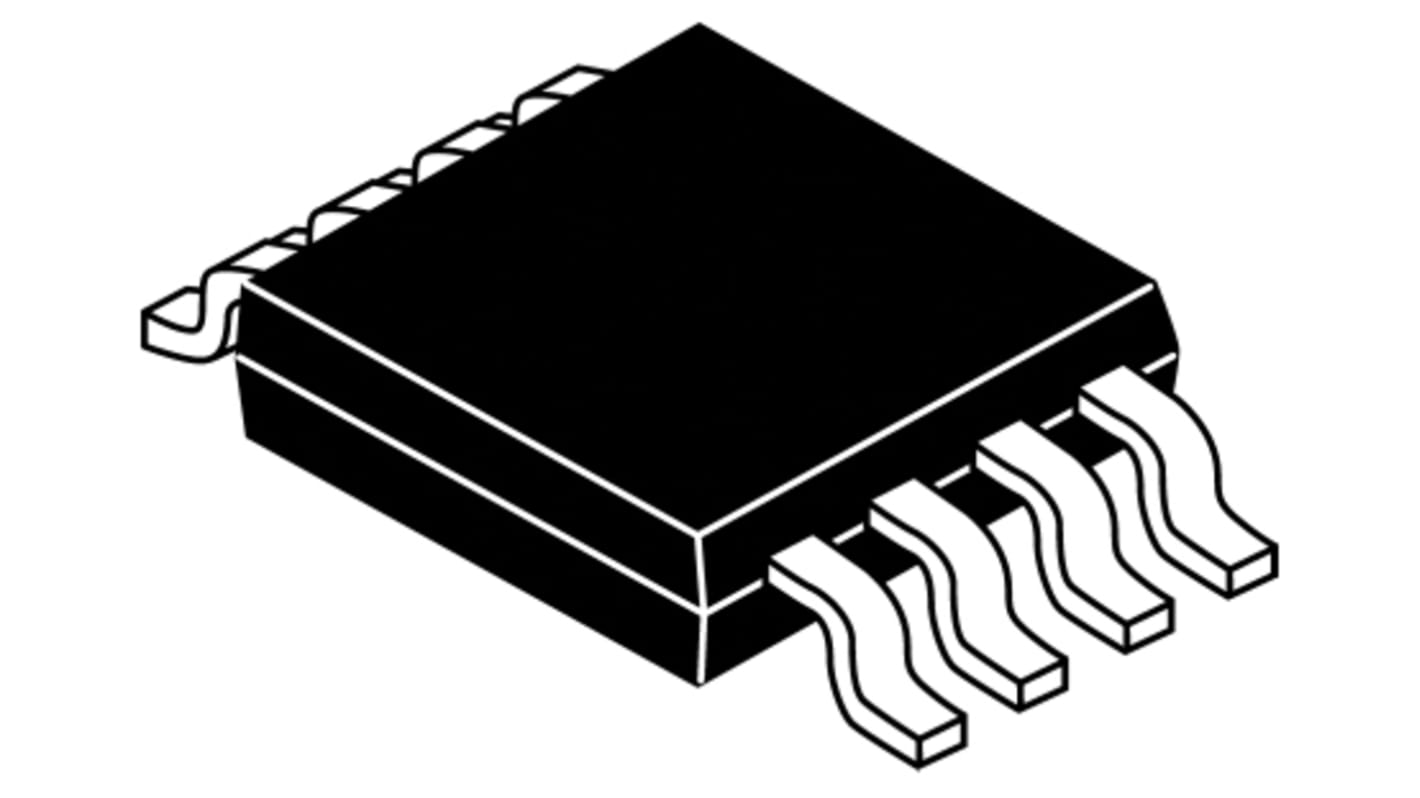

onsemi NCP1421DMR2G, Boost Converter, Boost Converter 600mA Adjustable, 1.2 MHz 8-Pin, Micro

View all Boost Converters
Discontinued
Packaging Options:
RS Stock No.:
161-2674P
Mfr. Part No.:
NCP1421DMR2G
Brand:
ON Semiconductor
Find similar products by selecting one or more attributes.
Select all

Brand

ON Semiconductor

Regulator Function

Boost Converter

Maximum Output Current

600mA

Maximum Input Voltage

5 V

Number of Outputs

1

Line Regulation

1 mV/V

Load Regulation

1 mV/V

Mounting Type

Surface Mount

Package Type

Micro

Pin Count

8

Output Type

Adjustable

Maximum Switching Frequency

1.2 MHz

Switching Regulator

Yes

Efficiency

94%

Dimensions

3.1 x 3.1 x 0.95mm

Height

0.95mm

Maximum Output Voltage

5 V

Width

3.1mm

Maximum Operating Temperature

85 °C

Minimum Input Voltage

1 V

Minimum Operating Temperature

-40 °C

Minimum Output Voltage

1.5 V

Length

3.1mm

NCP1421 is a monolithic micropower high-frequency step-up switching converter IC specially designed for battery- operated hand-held electronic products up to 600 mA loading. It integrates Sync-Rect to improve efficiency and to eliminate the external Schottky Diode. High switching frequency (up to 1.2 MHz) allows for a low profile, small sized inductor and output capacitor to be used.

High Efficiency
High Switching Frequency, up to 1.2 MHz
True-Cutoff Function Reduces Device Shutdown Current to typically 50nA
Anti-Ringing Ring-Killer for Discontinuous Conduction Mode
High Accuracy Reference Output
Low Quiescent Current of 8.5 μA
Integrated Low-Battery Detector
Open Drain Low -Battery Detector Output
Output Voltage from 1.5V to 5.0V Adjustable
Multi-function Logic Controlled Shutdown Pin
On Chip Thermal Shutdown with Hysteresis
Housed in Space Saving and Low Profile Micro8 package
