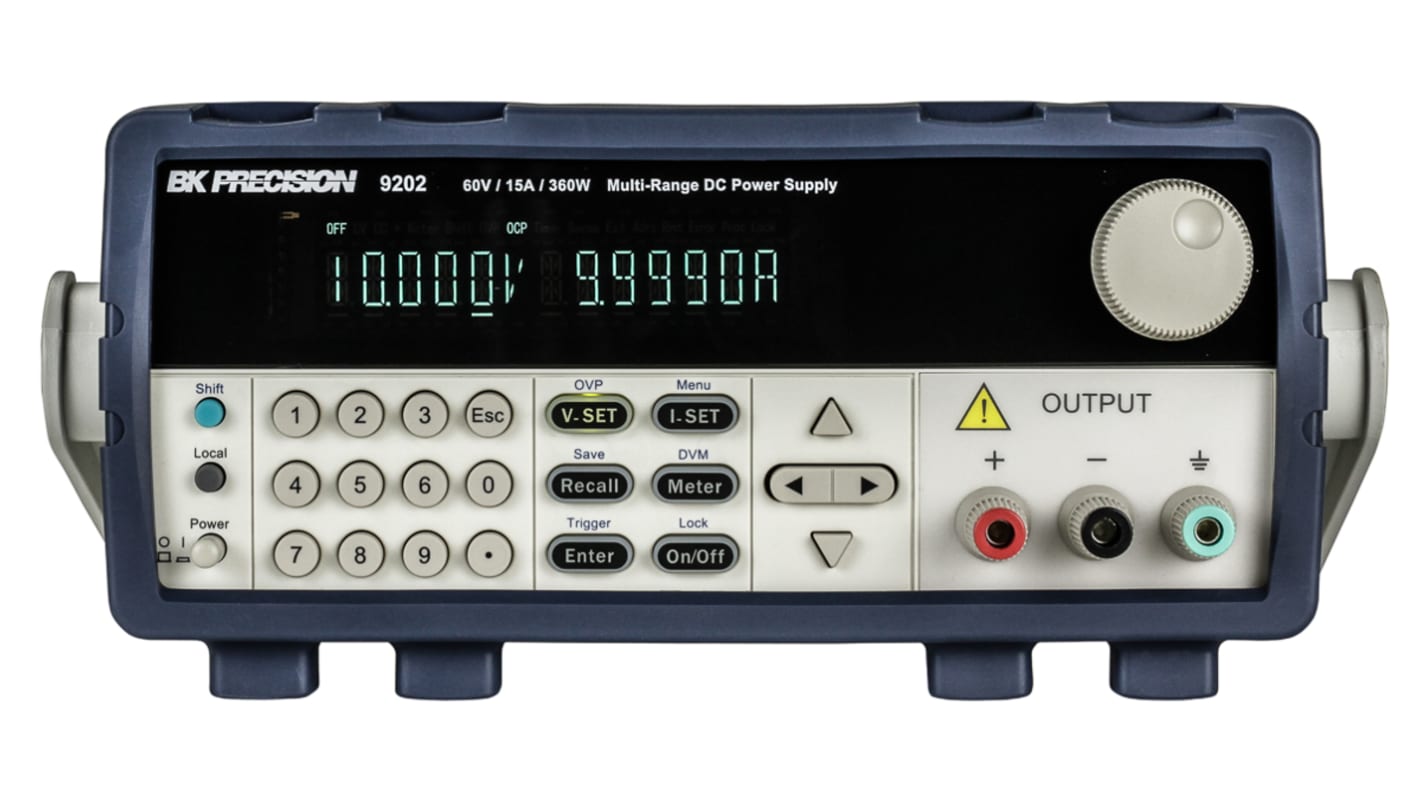

BK Precision Digital Bench Power Supply, 60V, 15A, 1-Output, 360W
- RS Stock No.:
- 878-2066
- Mfr. Part No.:
- BK9202
- Brand:
- BK Precision
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£1,004.44
(exc. VAT)
£1,205.33
(inc. VAT)
- RS Stock No.:
- 878-2066
- Mfr. Part No.:
- BK9202
- Brand:
- BK Precision
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | BK Precision | |
| Number of Outputs | 1 | |
| Supply Voltage | 110 V ac, 220V ac | |
| Output Voltage | 60V | |
| Output Current | 15A | |
| Power Rating | 360W | |
| Number of Displays | 1 | |
| Type | Digital | |
| Bench Power Supply Type | Programmable DC Power Supply | |
| Digital/Analogue | Digital | |
| Output Connector | Binding Post Terminal | |
| Input Connector | IEC 320 | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand BK Precision | ||
Number of Outputs 1 | ||
Supply Voltage 110 V ac, 220V ac | ||
Output Voltage 60V | ||
Output Current 15A | ||
Power Rating 360W | ||
Number of Displays 1 | ||
Type Digital | ||
Bench Power Supply Type Programmable DC Power Supply | ||
Digital/Analogue Digital | ||
Output Connector Binding Post Terminal | ||
Input Connector IEC 320 | ||
Minimum Temperature 0°C | ||
Maximum Temperature +40°C | ||
Non Compliant
- COO (Country of Origin):
- CN
BK Precision DC Power Supply
The BK Precision 360W multi-range single output DC power supply has an output voltage rating of 0V to 60V and a current rating of 0A to 15A. Unlike conventional supplies with fixed output ratings, these multi-range power supplies automatically recalculate voltage and current limits for each setting. This provides a full output power in any V/amp combination within the rated voltage and the current limits. The power supply has a LabVIEW driver and a soft panel for remote control, test sequence generation and data logging. Users can control the power supply, execute test sequences or log measurements using the provided PC software application by using interfaces. This software also integrates with Data Dashboard for LabVIEW apps enabling iOS android, or Windows 8 compatible tablets or smartphones to remotely monitor select measurement indicators.
Inclusions:
User manual, power cord, test report and a certificate of calibration.
Inclusions:
User manual, power cord, test report and a certificate of calibration.
Features and Benefits
High programming and read back resolution of 1mV/ 0.1mA
Store and recall up to 72 instrument settings
Output timer function
List mode programming
Standard USB (USBTMC-compliant), RS232 and GPIB interfaces supporting SCPI commands for remote control
Remote sense
Thermostatically controlled fan
Built-in digital voltmeter (DVM)
Overvoltage protection
Overpower protection
Over temperature protection
Key-lock function
Compact, 19in half-rack form factor for side-by-side rack mounting of 2 units
Supply voltage rating ranging from 110VAC to 220VAC
Store and recall up to 72 instrument settings
Output timer function
List mode programming
Standard USB (USBTMC-compliant), RS232 and GPIB interfaces supporting SCPI commands for remote control
Remote sense
Thermostatically controlled fan
Built-in digital voltmeter (DVM)
Overvoltage protection
Overpower protection
Over temperature protection
Key-lock function
Compact, 19in half-rack form factor for side-by-side rack mounting of 2 units
Supply voltage rating ranging from 110VAC to 220VAC
Applications
Production testing
Telecommunications
R&D
Service
University labs
Telecommunications
R&D
Service
University labs
Certifications
CE certified
IEC 320
