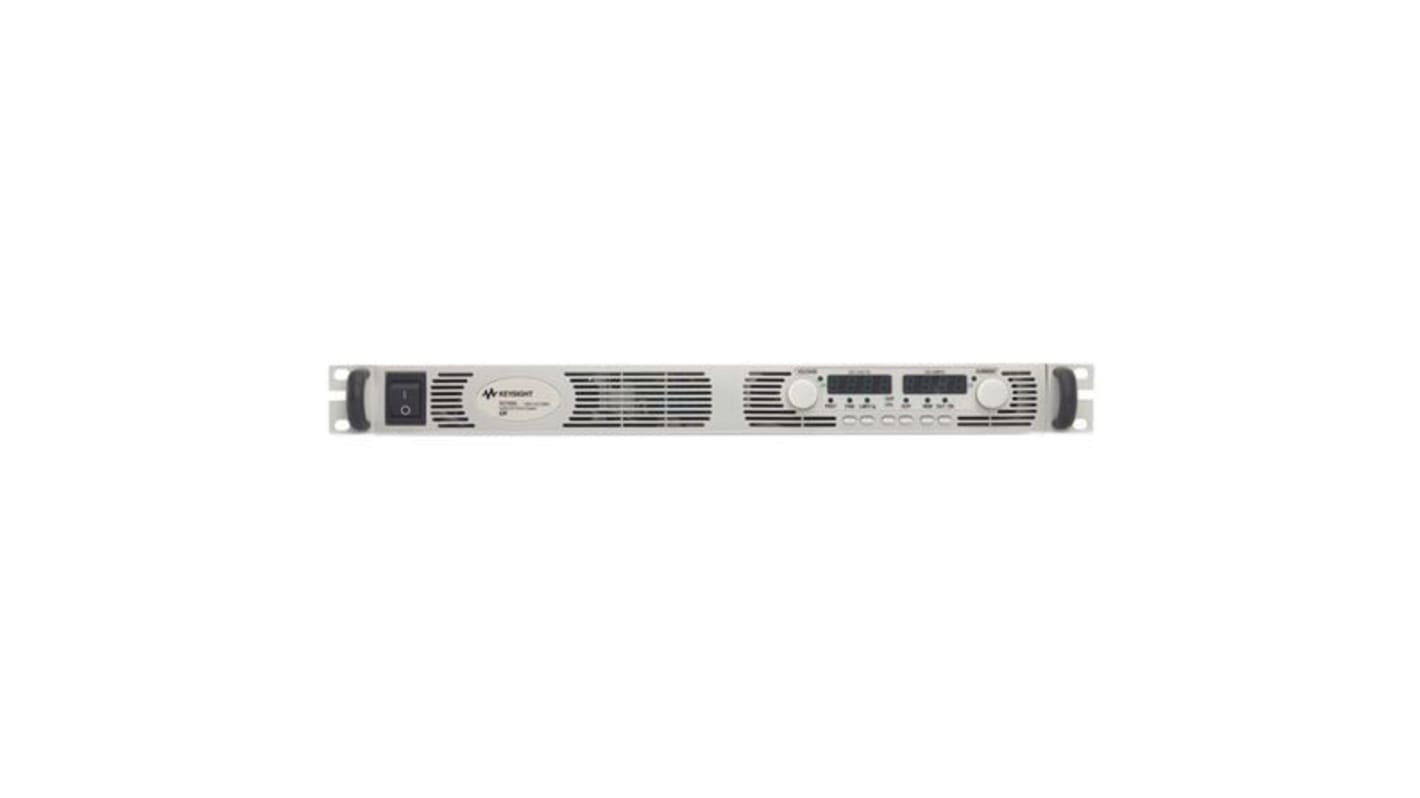

Keysight Technologies N5700 Series Digital Bench Power Supply, 0 → 100V, 15A, 1-Output, 1.5kW
- RS Stock No.:
- 671-8760
- Distrelec Article No.:
- 169-85-608
- Mfr. Part No.:
- N5769A
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£3,579.44
(exc. VAT)
£4,295.33
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £3,579.44 |
*price indicative
- RS Stock No.:
- 671-8760
- Distrelec Article No.:
- 169-85-608
- Mfr. Part No.:
- N5769A
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Series | N5700 | |
| Model Number | N5769A | |
| Rack Units | 1 U | |
| Number of Outputs | 1 | |
| Output Voltage | 0 → 100V | |
| Supply Voltage | 85 → 265V ac | |
| Output Current | 15A | |
| Power Rating | 1.5kW | |
| Number of Displays | 2 | |
| Bench Power Supply Type | Programmable DC Power Supply | |
| Type | Digital | |
| Digital/Analogue | Digital | |
| Output Connector | Screw Terminal | |
| Input Connector | Wire Clamp | |
| Minimum Temperature | 0°C | |
| Maximum Temperature | +55°C | |
Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Series N5700 | ||
Model Number N5769A | ||
Rack Units 1 U | ||
Number of Outputs 1 | ||
Output Voltage 0 → 100V | ||
Supply Voltage 85 → 265V ac | ||
Output Current 15A | ||
Power Rating 1.5kW | ||
Number of Displays 2 | ||
Bench Power Supply Type Programmable DC Power Supply | ||
Type Digital | ||
Digital/Analogue Digital | ||
Output Connector Screw Terminal | ||
Input Connector Wire Clamp | ||
Minimum Temperature 0°C | ||
Maximum Temperature +55°C | ||
Non Compliant
- COO (Country of Origin):
- US
Keysight N5700 Series
Keysight N5700 Series system DC power supplies provide exactly the required performance in a compact (1U) package at an attractive price. They offer stable output power, built-in voltage and current measurement, and output voltage and current from 6V to 600V and 1.3A to 180A. Air vents to the front, side and rear facilitate stacking. These power supplies are used throughout R&D, design validation and manufacturing engineering activities in the aerospace/defence, automotive, electronic component and communications industries.
• Small high density 1 U package
• Built-in voltage and current measurement
• Full protection from over-voltage and over-current
• 85-265 Vac Universal AC input
• Supports the easy-to-use SCPI (Standard Commands for Programmable Instruments)
• Command compatibility for Sorensen DLM and Xantrex XFR DC Supplies
• LAN, USB, and GPIB interfaces standard
• Fully compliant to LXI Class C specification
• Built-in voltage and current measurement
• Full protection from over-voltage and over-current
• 85-265 Vac Universal AC input
• Supports the easy-to-use SCPI (Standard Commands for Programmable Instruments)
• Command compatibility for Sorensen DLM and Xantrex XFR DC Supplies
• LAN, USB, and GPIB interfaces standard
• Fully compliant to LXI Class C specification
