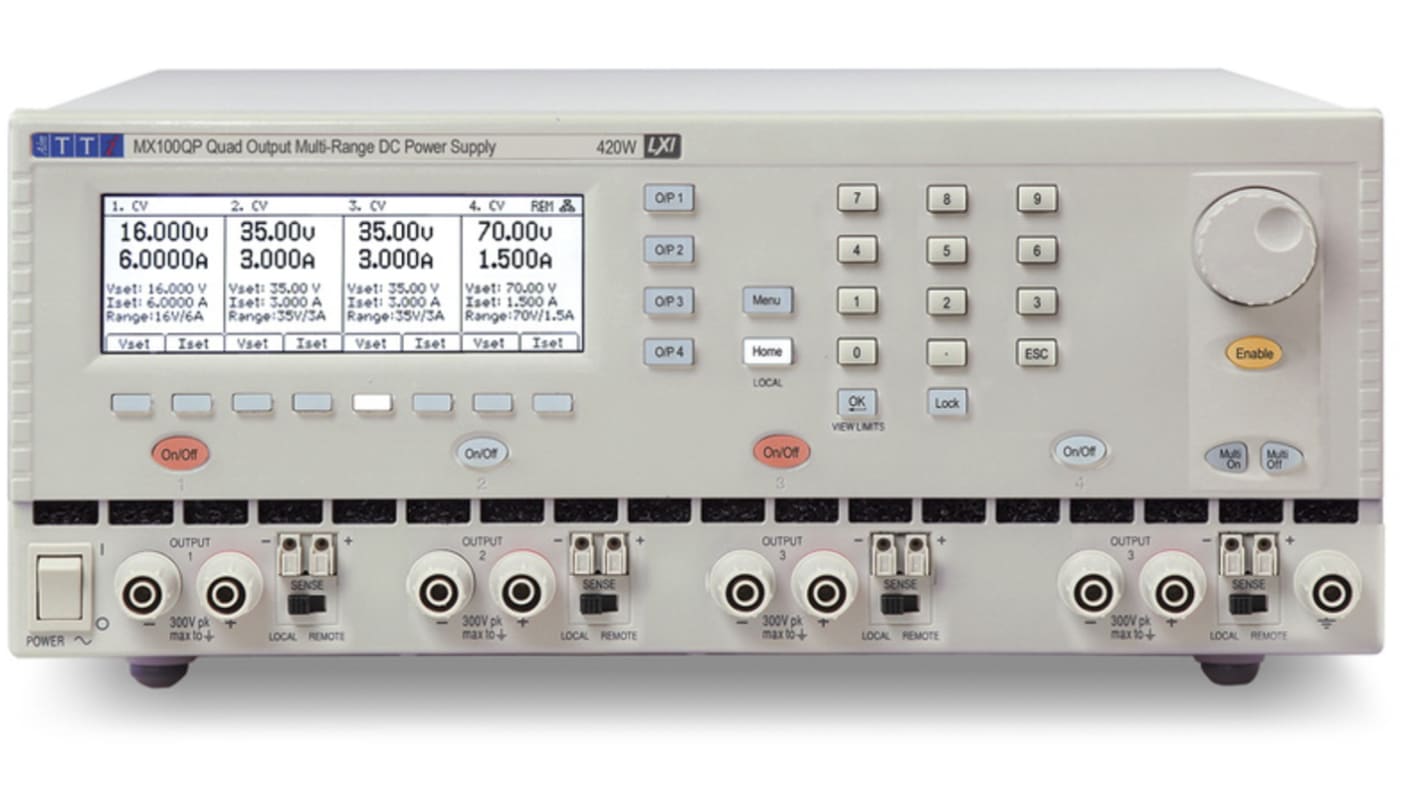

Aim-TTi MX Series Digital Bench Power Supply, 0 → 35V, 0 → 3A, 4-Output, 420W - UKAS Calibrated
- RS Stock No.:
- 183-3481
- Mfr. Part No.:
- MX100QP
- Brand:
- Aim-TTi
Discontinued
- RS Stock No.:
- 183-3481
- Mfr. Part No.:
- MX100QP
- Brand:
- Aim-TTi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Aim-TTi | |
| Series | MX | |
| Model Number | MX100QP | |
| Number of Outputs | 4 | |
| Calibrated | UKAS | |
| Output Voltage | 0 → 35V, , 0 →70V | |
| Supply Voltage | 110 → 240V ac | |
| Output Current | 0 → 3 A, 0 →6A | |
| Power Rating | 420W | |
| Number of Displays | 4 | |
| Bench Power Supply Type | Programmable DC Power Supply | |
| Type | Digital | |
| Digital/Analogue | Digital | |
| Input Connector | IEC 320 | |
| Output Connector | Binding Post Terminal | |
| Minimum Temperature | +5°C | |
| Maximum Temperature | +40°C | |
Select all | ||
|---|---|---|
Brand Aim-TTi | ||
Series MX | ||
Model Number MX100QP | ||
Number of Outputs 4 | ||
Calibrated UKAS | ||
Output Voltage 0 → 35V, , 0 →70V | ||
Supply Voltage 110 → 240V ac | ||
Output Current 0 → 3 A, 0 →6A | ||
Power Rating 420W | ||
Number of Displays 4 | ||
Bench Power Supply Type Programmable DC Power Supply | ||
Type Digital | ||
Digital/Analogue Digital | ||
Input Connector IEC 320 | ||
Output Connector Binding Post Terminal | ||
Minimum Temperature +5°C | ||
Maximum Temperature +40°C | ||
- COO (Country of Origin):
- GB
Aim-TTi Power Supply
The MX series uses mixed mode regulation to provide up to 420W of power split across up to four outputs, this series differs from most other multi-output power supplies in offering full capabilities on all outputs. Outputs can also be combined internally to provide up to 210 watts of power as either 35V/6A or 70V/3A from a single output. MX-P models have LAN /LXi, USB and RS232 as standard.
For an optional GPIB module see stock number 144-5481.
For an optional GPIB module see stock number 144-5481.
Features and Benefits
• Range switching to give variable current-voltage combinations
• Graphic LCD with simultaneous display of outputs and settings for each channel
• Instant single as well as multiple channels ON/OFF control
• Instant access for current and voltage setting of an output
• High setting resolution of up to 1mV for voltage and 0.1mA for current
• Overvoltage and over current protection
• Switchable remote sensing
• Up to 250 settings memories for individual or multiple outputs
• Rack-mountable
• Graphic LCD with simultaneous display of outputs and settings for each channel
• Instant single as well as multiple channels ON/OFF control
• Instant access for current and voltage setting of an output
• High setting resolution of up to 1mV for voltage and 0.1mA for current
• Overvoltage and over current protection
• Switchable remote sensing
• Up to 250 settings memories for individual or multiple outputs
• Rack-mountable
Applications
• Laboratories
• Educational institutions
• Industrial applications
• Production and manufacturing units
• Workshops
• Educational institutions
• Industrial applications
• Production and manufacturing units
• Workshops
Supplied with
Test Bridge Logging and sequencing software
