Keysight Technologies Digital, Bench Power Supply, 36W, 1 Output , 60V dc 600mA With UKAS Calibration

Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): MY
Product Details

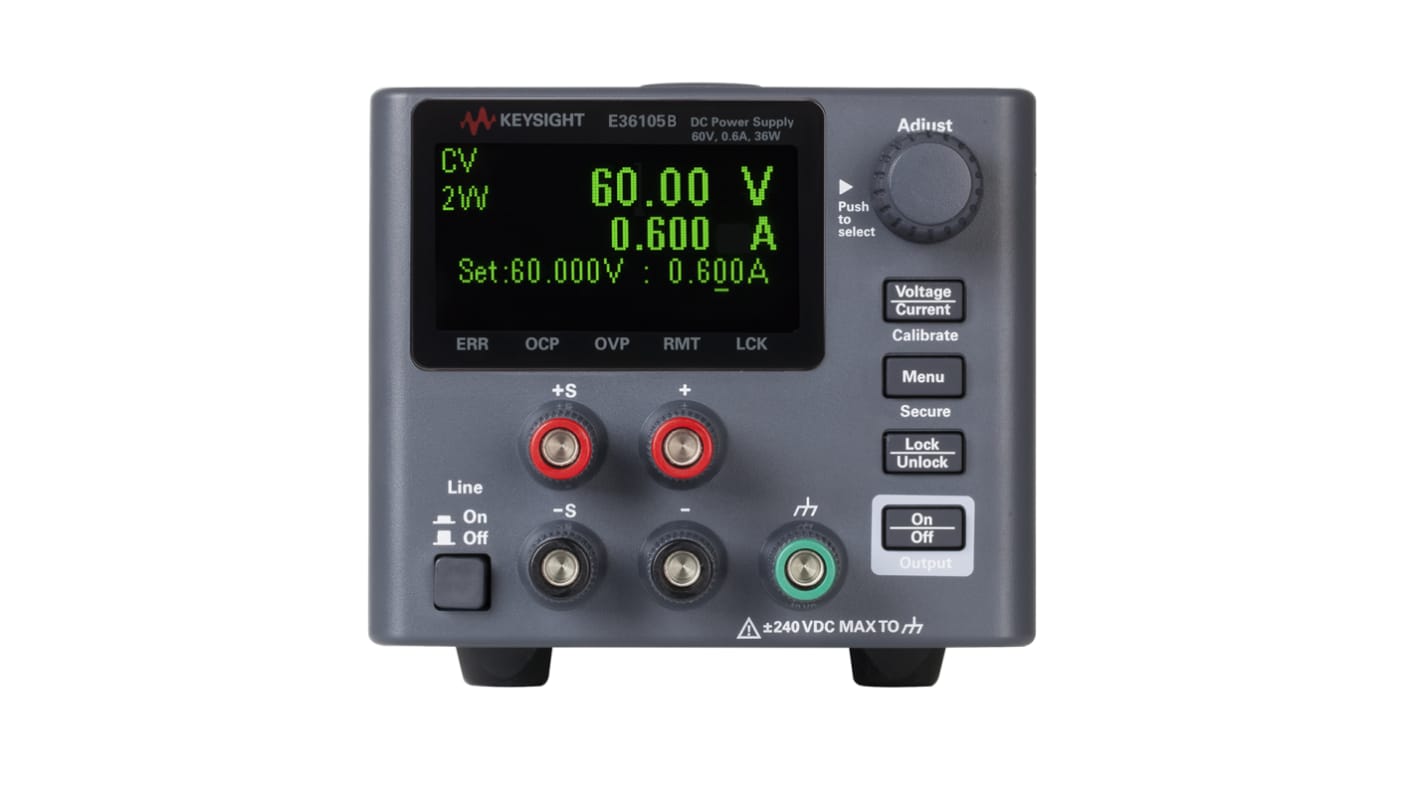

Keysight Technologies Bench Power Supply

The Keysight Technologies E36100B series 36W bench power supply has a single channel, an output voltage rating of 60V and a current rating of 0.6A. Its low current measure feature enables highly accurate measurements. This is well equipped with multiple features for efficient supply and measurement applications.

Features and Benefits

• Compact size
• High contrast OLED display
• Overvoltage and overcurrent protection
• Integrated free PC software Benchvue for easy monitoring and control of the supply and its related data
• Two interfacing options like USB and LAN (LXI Core)
• Over temperature protection
• Intuitive on-screen menu
• Rack-mountable
• Easy power and I/O connection

Applications

• General laboratories
• Educational institutions
• Industrial applications
• Production
• Workshops

Specifications
Attribute Value
Output Voltage 60V dc
Output Current 600mA
Number of Outputs 1
Type Digital
Power Rating 36W
Supply Voltage 100 V ac, 115 V ac, 230 V ac
Number of Displays 1
Output Connector USB
Calibrated UKAS
Minimum Temperature 0°C
Maximum Temperature +40°C
Available to back order for despatch 30/11/2020
Price Each
£ 858.00
(exc. VAT)
£ 1,029.60
(inc. VAT)
Units
Per unit
1 +
£858.00
Not available for guaranteed pre 9am/10am delivery
