4 Hole Flange Bearing Unit, FY 512 M, 110mm ID
- RS Stock No.:
- 212-4560
- Mfr. Part No.:
- FY 512 M
- Brand:
- SKF
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 212-4560
- Mfr. Part No.:
- FY 512 M
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 110mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Cast Iron | |
| Length | 175mm | |
| Width | 52mm | |
| Mount Hole Size | 18 mm | |
| Mount Hole Centre-to-Centre | 143mm | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 110mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Cast Iron | ||
Length 175mm | ||
Width 52mm | ||
Mount Hole Size 18 mm | ||
Mount Hole Centre-to-Centre 143mm | ||
- COO (Country of Origin):
- IT

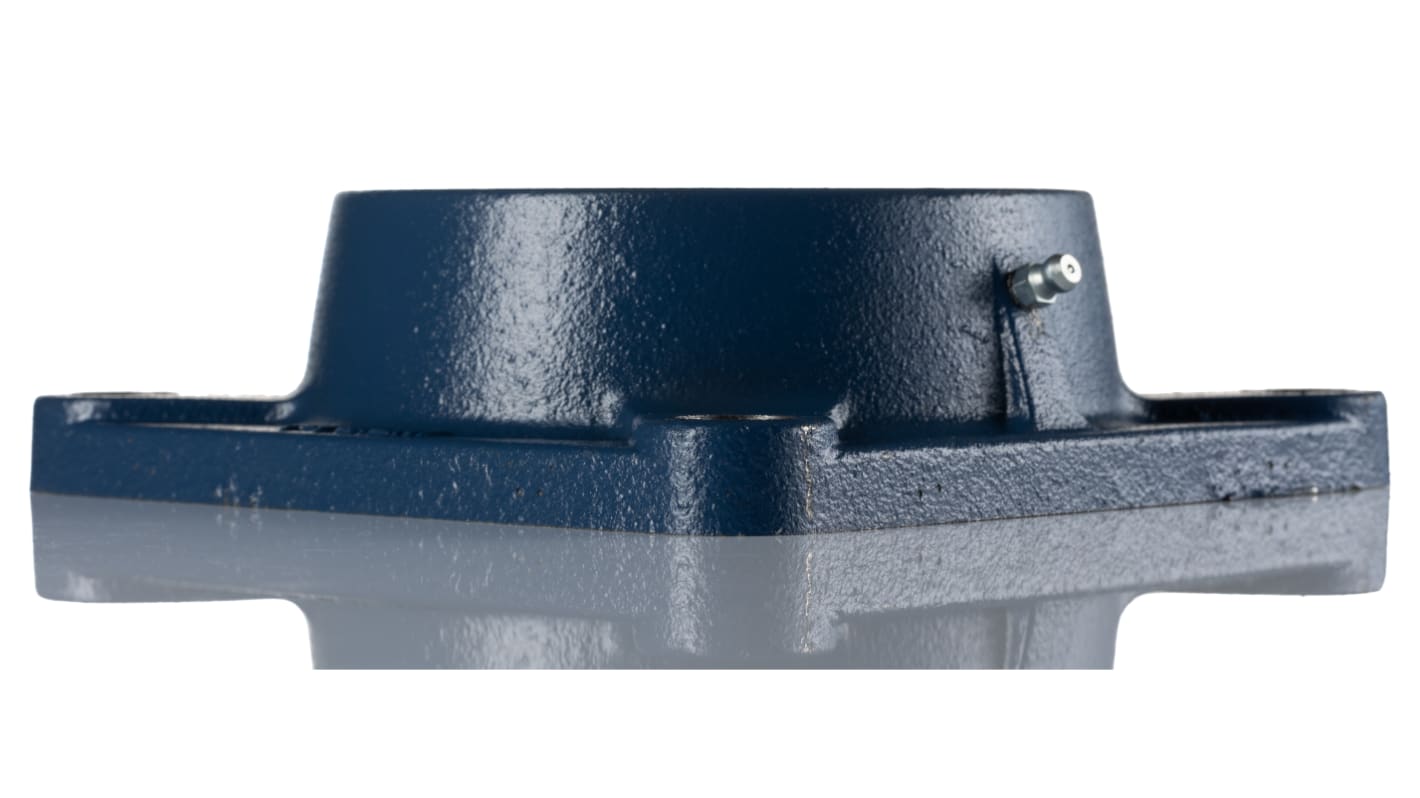

SKF Flanged Bearing Housing, Square Housing Shape, 175 (L) x 175 (W) x 52mm (D) - FY 512 M
To keep your machines working hard, even in tough conditions, choose this flanged bearing housing from SKF. It stops dust and moisture from getting to your insert, blocking out damage from contamination. A hard-wearing cast iron body means it shrugs off impacts, helping your components stand up to shocks. Mounting this frame to your support is done in no time thanks to its four simple bolt holes. The unit comes without an insert bearing, so you can choose the right one for your application.
Features & Benefits
• Built-in relubrication hole helps make quick work of maintenance, with no need for dismounting
• Narrow measurements of 175 (L) x 175 (W) x 52mm (D) make it easy to fit in busy systems
• Body treated with corrosion-resistant paint and coating to stay strong in damp environments
• Narrow measurements of 175 (L) x 175 (W) x 52mm (D) make it easy to fit in busy systems
• Body treated with corrosion-resistant paint and coating to stay strong in damp environments
Applications
• Cement processing
• Manufacturing industry
• Paper production
• Manufacturing industry
• Paper production
Does this housing affect the loads my bearing can handle?
No, this unit's cast iron body is strong enough to take the loads your insert bearing can handle.
