4 Hole Flange Bearing Unit, F4BC 40M-CPSS-DFH, 40mm ID
- RS Stock No.:
- 212-4522
- Mfr. Part No.:
- F4BC 40M-CPSS-DFH
- Brand:
- SKF
Subtotal (1 unit)*
£259.35
(exc. VAT)
£311.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £259.35 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 212-4522
- Mfr. Part No.:
- F4BC 40M-CPSS-DFH
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SKF | |
| Inside Diameter | 40mm | |
| Bearing Unit Type | Flange Bearing Unit | |
| Number of Mount Holes | 4 | |
| Material | Stainless Steel | |
| Length | 135mm | |
| Width | 67.9mm | |
| Depth | 67.9mm | |
| Mount Hole Size | 14.2 mm | |
| Mount Hole Centre-to-Centre | 102mm | |
| Better World Claim | Extended product life | |
| Better World Product | Yes | |
Select all | ||
|---|---|---|
Brand SKF | ||
Inside Diameter 40mm | ||
Bearing Unit Type Flange Bearing Unit | ||
Number of Mount Holes 4 | ||
Material Stainless Steel | ||
Length 135mm | ||
Width 67.9mm | ||
Depth 67.9mm | ||
Mount Hole Size 14.2 mm | ||
Mount Hole Centre-to-Centre 102mm | ||
Better World Claim Extended product life | ||
Better World Product Yes | ||
- COO (Country of Origin):
- IT

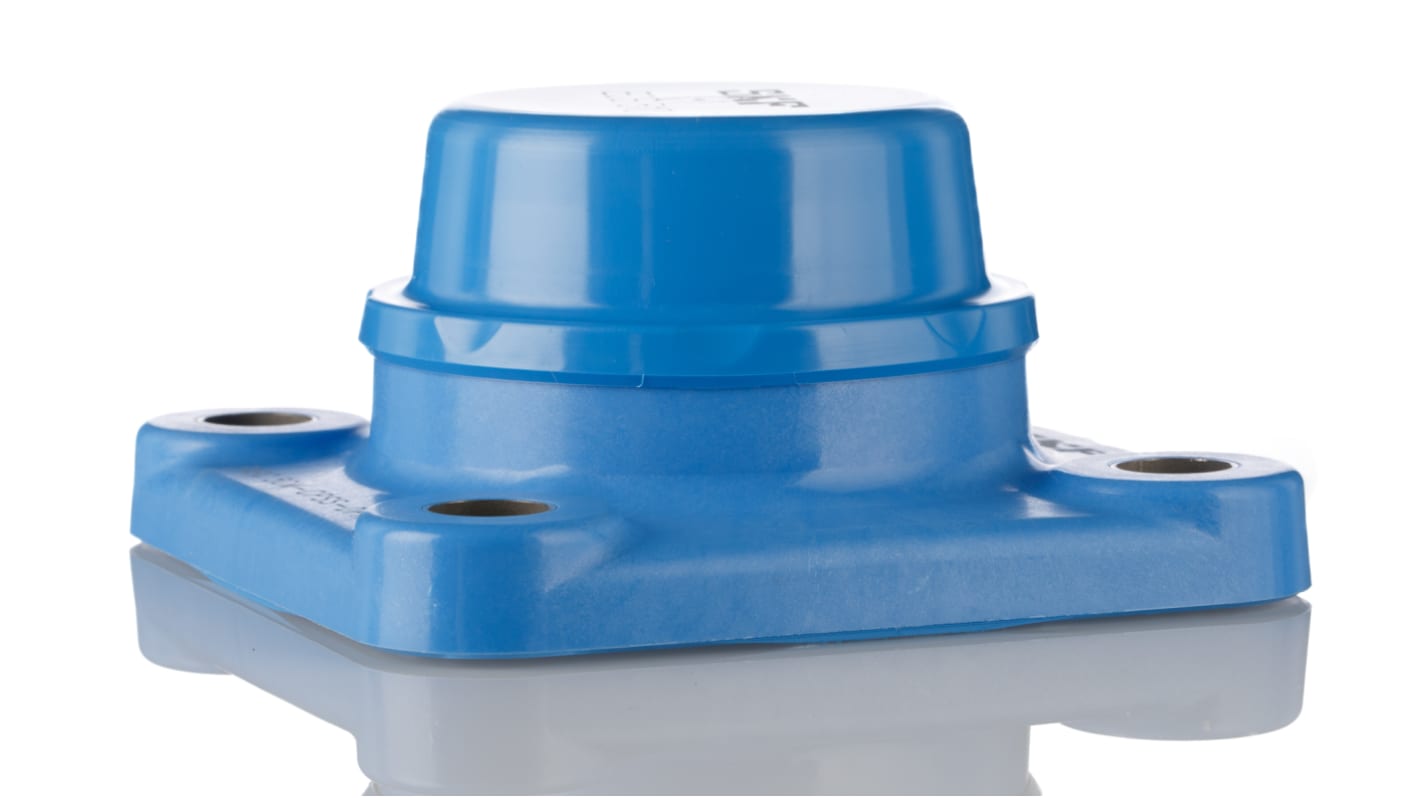

SKF 4-Hole Bearing Unit, 40mm ID, 135mm Length - F4BC 40M-CPSS-DFH
Ensure the efficient operation of your rotary components with this bearing unit from SKF. It's made from a food-safe composite material that's easy to clean and resistant to corrosion, so it can withstand the frequent washdowns needed in hygienic environments. Pre-fitted gutter seals and an end cover keep lubricant in and contaminants out of the workings for improved performance. The unit is also pre-lubricated with food-safe grease and doesn't need frequent regreasing, making it simple to maintain.
• Limiting speed of 500rpm (rotations per minute) for use in fast-moving applications
• Dynamic load rating of 24.7kN and static load rating of 19kN to support heavy-duty machinery
• Light weight of 0.91kg for easy handling
• Compact dimensions of 135 (length) x 67.9 (width) x 67.9mm (height) including end cover, so adds minimal bulk
• Dynamic load rating of 24.7kN and static load rating of 19kN to support heavy-duty machinery
• Light weight of 0.91kg for easy handling
• Compact dimensions of 135 (length) x 67.9 (width) x 67.9mm (height) including end cover, so adds minimal bulk
Applications
• Extractor fans
• Pharmaceutical equipment
• Food processing machinery
• Conveyors
• Pharmaceutical equipment
• Food processing machinery
• Conveyors
How do I secure this bearing unit in place?
This bearing unit has four pre-drilled mounting holes. You can use set screws to fix the unit securely in place and prevent it from coming loose, even in high-vibration applications.
