Subtotal (1 pack of 5 units)*
£38.77
(exc. VAT)
£46.525
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £7.754 | £38.77 |
*price indicative
- RS Stock No.:
- 260-0031
- Mfr. Part No.:
- IR12X16X20-XL
- Brand:
- INA
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | INA | |
Type | Inner Ring | |
Inner Diameter | 12mm | |
Outer Diameter | 16mm | |
Series | IR..-XL | |
Select all | ||
---|---|---|
Brand INA | ||
Type Inner Ring | ||
Inner Diameter 12mm | ||
Outer Diameter 16mm | ||
Series IR..-XL | ||

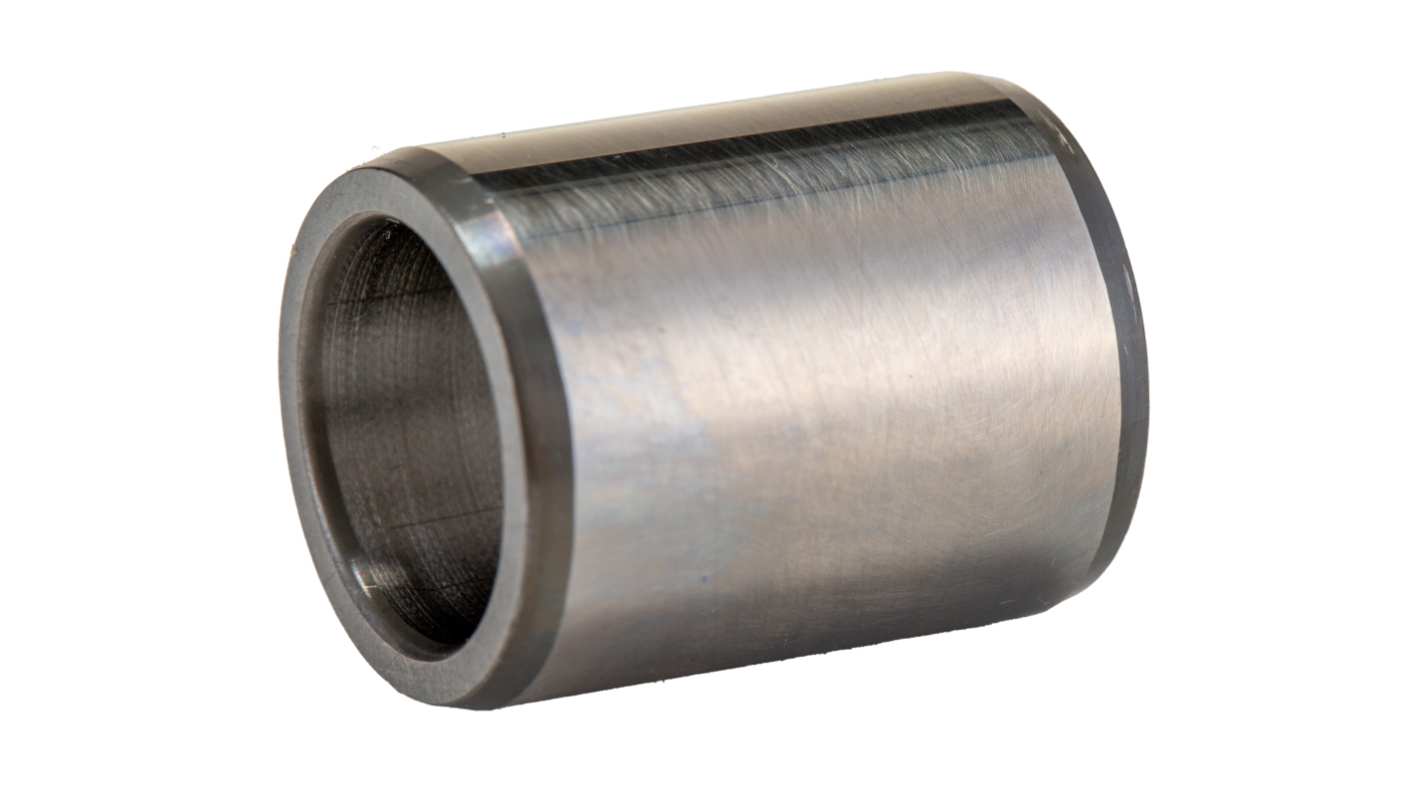

Schaeffler IR..-XL Series Roller Bearing Inner Ring, 12mm Inner Diameter, 16mm Outer Diameter - IR12X16X20-XL
This roller bearing inner ring is a vital component designed to optimise the performance of various machinery. Featuring an inner diameter of 12mm and an outer diameter of 16mm, it is specifically engineered as part of the Schaeffler range, adhering to the IR..-XL series. The inner ring's cylindrical design and precise dimensions ensure superior fitting and functionality in your applications.
Features & Benefits
• Robust design supports sustained heavy loads
• Tapered raceway improves operational efficiency
• Precise tolerances reduce wear and tear
• Lightweight construction aids in simplified handling
• Tapered raceway improves operational efficiency
• Precise tolerances reduce wear and tear
• Lightweight construction aids in simplified handling
Applications
• Used with electric motors in automation systems
• Integral for linear motion bearings in machinery
• Ideal for in industrial equipment maintenance
• Utilised in precision engineering setups
• Employed in manufacturing lines for optimal throughput
• Integral for linear motion bearings in machinery
• Ideal for in industrial equipment maintenance
• Utilised in precision engineering setups
• Employed in manufacturing lines for optimal throughput
What are the tolerance specifications for this component?
The inner ring features upper and lower tolerances of -0.004mm and -0.018mm for the raceway diameter, allowing for precise fit and functionality.
How does the lightweight design impact overall machinery performance?
The weight of 14.4g contributes to less inertia, enabling quicker response times and improved efficiency in dynamic applications without compromising strength.
What benefits come from the tapered raceway design?
The tapered raceway facilitates smoother movement and reduces friction during operation, which diminishes heat generation and prolongs the lifespan of adjacent components.
