Subtotal (1 unit)*
£12.94
(exc. VAT)
£15.53
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 85 unit(s) ready to ship
- Plus 26 unit(s) ready to ship from another location
- Plus 110 unit(s) shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £12.94 |
*price indicative
- RS Stock No.:
- 237-2195
- Mfr. Part No.:
- KM 10
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Type | Lock Nut | |
Inner Diameter | 50mm | |
Outer Diameter | 70mm | |
Dimensions | 50 x 70 x 11mm | |
Series | KM | |
For Use With | Plain Shaft | |
Select all | ||
---|---|---|
Brand SKF | ||
Type Lock Nut | ||
Inner Diameter 50mm | ||
Outer Diameter 70mm | ||
Dimensions 50 x 70 x 11mm | ||
Series KM | ||
For Use With Plain Shaft | ||
- COO (Country of Origin):
- LT

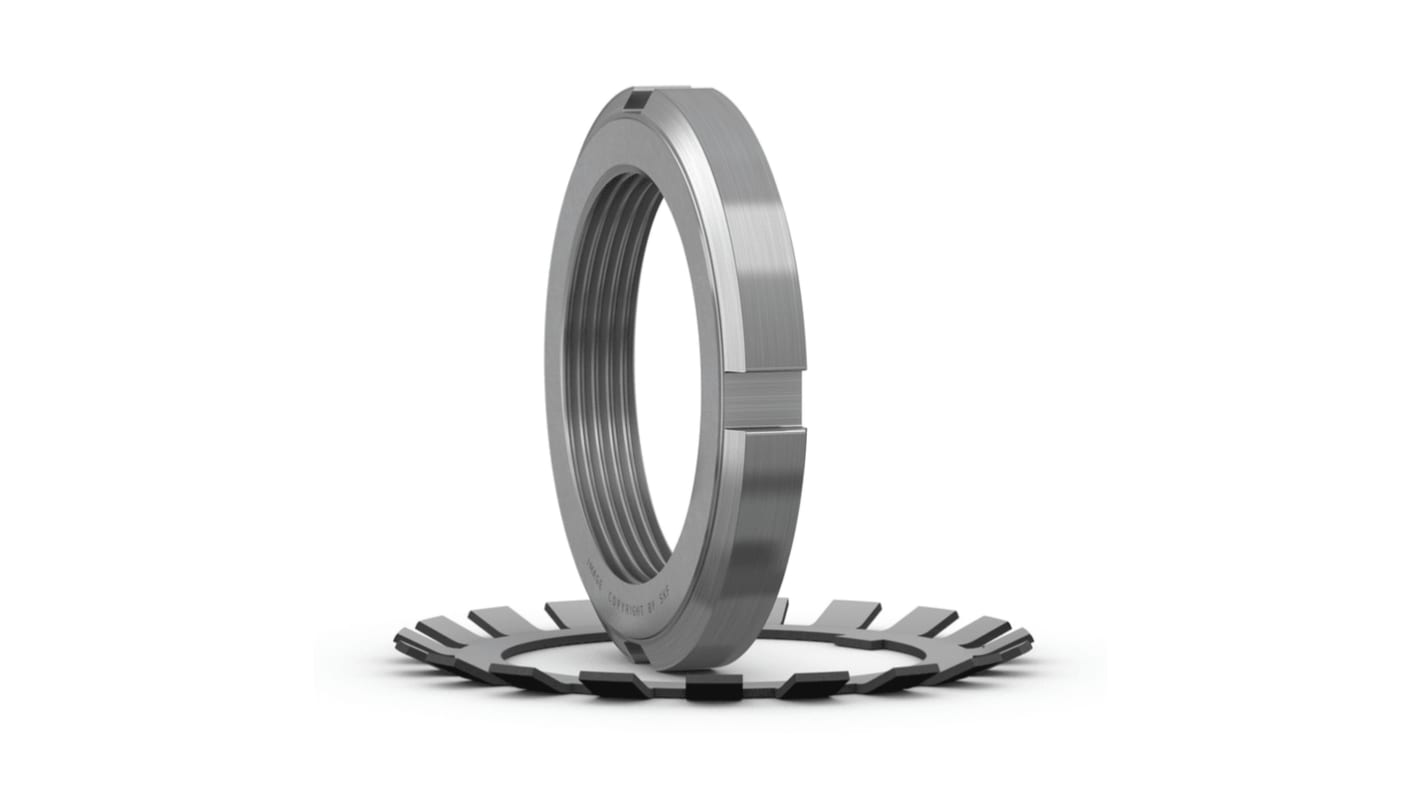

SKF Bearing Assembly, Lock Nut Type For Use With MB 10 Lock Washer, 140g Weight - KM 10
Need to mount a bearing on a shaft or axle? Choose this lock nut from SKF to complete your bearing assembly. There are slots along the outer edge that let you tighten it up fully using a compatible hook spanner (204-4542). For a tight fit on your rotary element, mount the nut along with an MB 10 lock washer (237-2221). Simply secure it by bending four of the washer's tabs into the grooves on the outer edge of the nut.
Features & Benefits
• Reusable, so cuts down on wastage
• 91.5kN static load rating in the axial direction indicates it's suitable for use with large rotating elements
• Compatible with adapter sleeves, meaning you can use it to mount bearings on a plain or stepped shaft for greater versatility
• 91.5kN static load rating in the axial direction indicates it's suitable for use with large rotating elements
• Compatible with adapter sleeves, meaning you can use it to mount bearings on a plain or stepped shaft for greater versatility
Applications
• Automotive industry
• Agricultural machinery
• Mining equipment
• Agricultural machinery
• Mining equipment
What size is this lock nut?
This lock nut has a width of 11mm and an outside diameter of 70mm. The diameter of its locating side face is 61mm, while its slots are 6mm wide and 2.5mm deep.
