Subtotal (1 unit)*
£45.30
(exc. VAT)
£54.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £45.30 |
*price indicative
- RS Stock No.:
- 209-3814
- Mfr. Part No.:
- KM 20
- Brand:
- SKF
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SKF | |
Type | Bearing Lock Nut And Locking Device | |
Outer Diameter | 130mm | |
Select all | ||
---|---|---|
Brand SKF | ||
Type Bearing Lock Nut And Locking Device | ||
Outer Diameter 130mm | ||

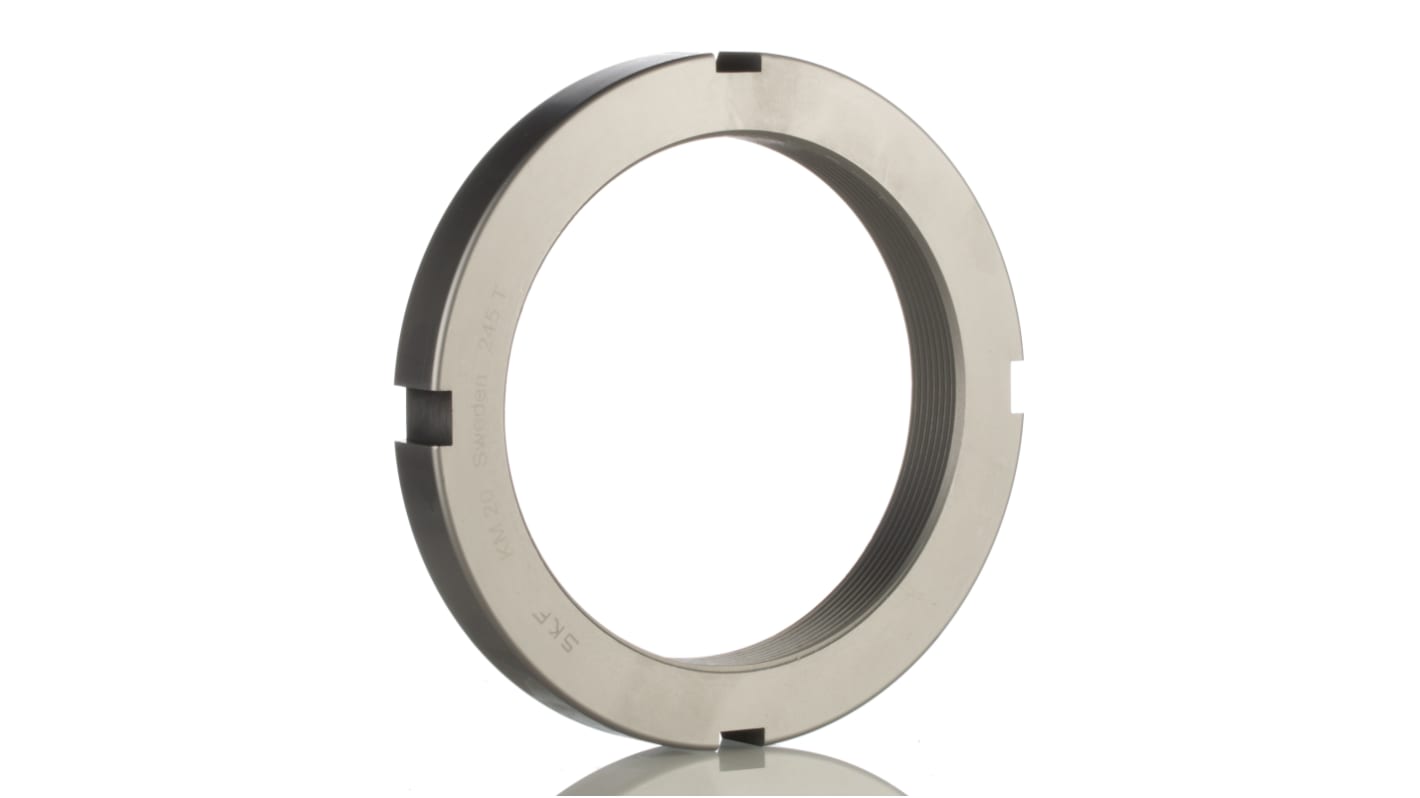

SKF Bearing Assembly Lock Nut And Locking Device, 255kN Axial Load Carrying Capacity, 640g Weight - KM 20
To securely mount bearings onto machine shafts, choose this lock nut and keyway set from SKF. When used together, the components help to stop bearings from coming loose in the event of heavy machine vibrations. They're designed to accommodate axial loads and have a static load capacity of up to 255kN, so are suitable for use in heavy-duty applications. The lock nut has four equally spaced slots around its circumference to accommodate impact hooks and spanners, making installation simple.
• Light weight of 640g for minimal strain on your equipment
• Metal construction for resistance to corrosion and wear
• Metal construction for resistance to corrosion and wear
Applications
• Manufacturing industry
• Mechanical workshops
• Robotics and automation
• Mechanical workshops
• Robotics and automation
How do I install this lock nut?
First, coat the sliding surfaces of the shaft with light oil to reduce friction, then slide the adapter sleeve onto the bearing. Next, manually screw the lock nut onto the sleeve's thread and tighten it with a hook spanner to the angle specified in the installation manual. Remove the nut and place the keyway, then replace the lock nut and secure it in place using the keyway's tabs.
