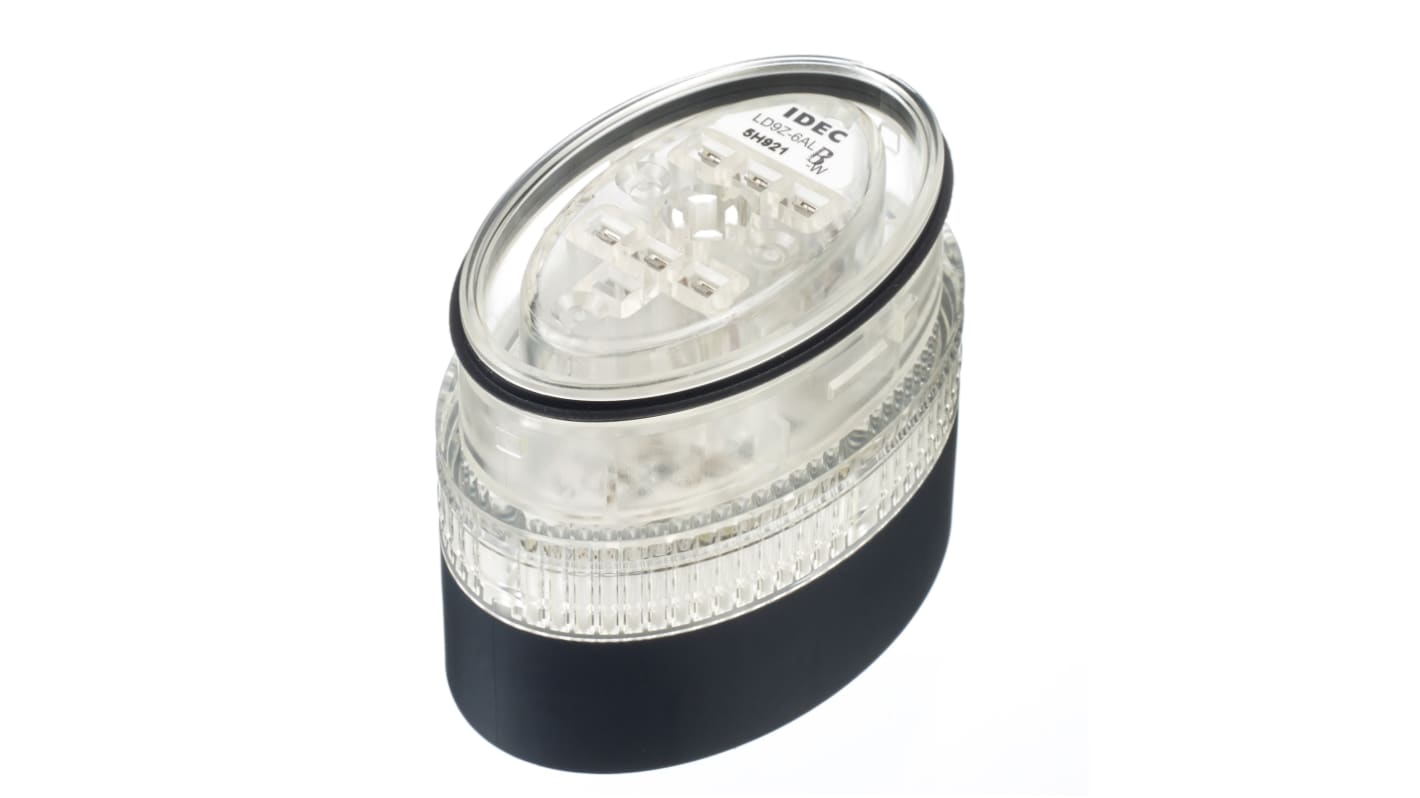

Idec LD9Z Series White Multiple Effect Beacon, 24 V ac/dc, Wall Mount, LED Bulb, IP54, IP65
- RS Stock No.:
- 179-4786
- Mfr. Part No.:
- LD9Z-6ALB-W
- Brand:
- Idec
Discontinued
- RS Stock No.:
- 179-4786
- Mfr. Part No.:
- LD9Z-6ALB-W
- Brand:
- Idec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Idec | |
| Supply Voltage | 24 V ac/dc | |
| Light Effect | Flashing, Steady | |
| Lens Colour | White | |
| Mounting Style | Wall Mount | |
| Bulb Type | LED | |
| Current Type | AC, DC | |
| Current Consumption | 20mA | |
| Base Diameter | 60mm | |
| Housing Colour | Black | |
| Lamp Included | Yes | |
| Series | LD9Z | |
| IP Rating | IP54, IP65 | |
| Base Width | 60mm | |
| Minimum Temperature | -25°C | |
| Maximum Temperature | +55°C | |
| Select all | ||
|---|---|---|
Brand Idec | ||
Supply Voltage 24 V ac/dc | ||
Light Effect Flashing, Steady | ||
Lens Colour White | ||
Mounting Style Wall Mount | ||
Bulb Type LED | ||
Current Type AC, DC | ||
Current Consumption 20mA | ||
Base Diameter 60mm | ||
Housing Colour Black | ||
Lamp Included Yes | ||
Series LD9Z | ||
IP Rating IP54, IP65 | ||
Base Width 60mm | ||
Minimum Temperature -25°C | ||
Maximum Temperature +55°C | ||
- COO (Country of Origin):
- JP
LD6A SignaLight combines the latest LED technology with IDEC’s safety technology. Provides a new concept and innovative design, ideal for factory automation and other various applications.
Striped design with non-illuminating area between the lenses. Built-in super bright LEDs reduce light disturbance to make the illuminating color stand out.
IDEC’s unique lens shape enables high-visibility from different directions.
Five different mounting styles available. Easy mounting to aluminum frames, wall mounting, direct mounting, and pole mounting (with base or with L-shaped bracket).
Clear lens type available.
Flashing cycle: 1.75 Hz (approx. 105 flashes per second)
Ergonomically designed alarm sound (3.3 kHz, 2 different sounds) spreads 360º degrees. Adjustable volume (70 to 90 dB).
IDEC’s unique lens shape enables high-visibility from different directions.
Five different mounting styles available. Easy mounting to aluminum frames, wall mounting, direct mounting, and pole mounting (with base or with L-shaped bracket).
Clear lens type available.
Flashing cycle: 1.75 Hz (approx. 105 flashes per second)
Ergonomically designed alarm sound (3.3 kHz, 2 different sounds) spreads 360º degrees. Adjustable volume (70 to 90 dB).
