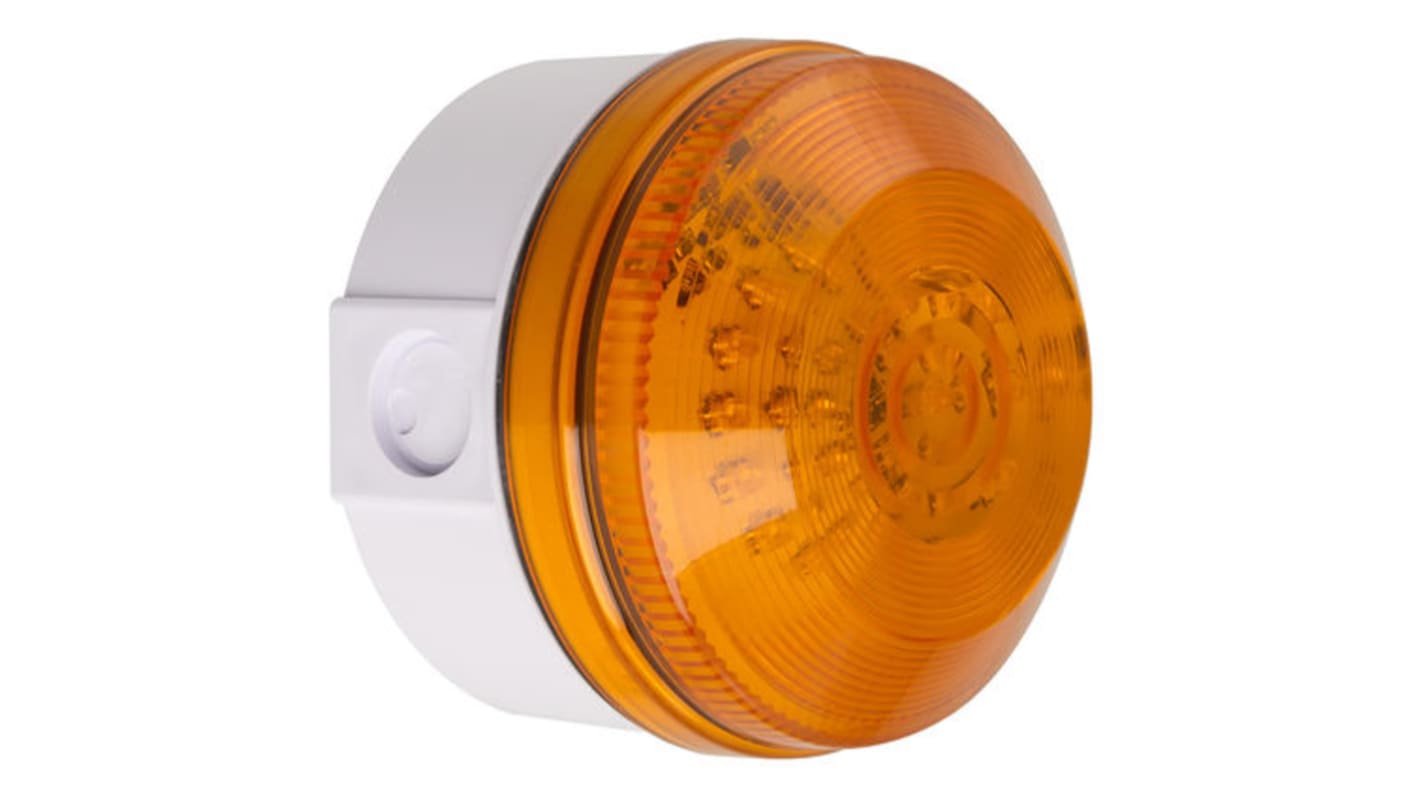

Moflash LED195 Amber LED Beacon, 35 → 85 V ac/dc, Flashing, Surface Mount, Wall Mount

  • RS Stock No. 122-6666
  • Mfr. Part No. LED195-03WH-01
  • Brand Moflash
Technical Reference
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): GB
Product Details

Moflash Industrial LED Beacon - LED195 Series

Professional range of Moflash industrial LED beacons from the LED195 series. The LED beacons are designed for industrial or commercial applications where low maintenance, long life and cost effective solutions are required. The LED beacons have two stages of alarm. Flashing or continuous modes can be changed via a jumper link.

Continuously rated
LED long life
Low current consumption
Dustproof
Weatherproof
Cable termination inside the enclosure
Deep or Shallow base options

Specifications
Attribute Value
Supply Voltage 35 → 85 V ac/dc
Light Effect Flashing
Lens Colour Amber
Mounting Style Surface Mount, Wall Mount
Bulb Type LED
Current Type AC, DC
Base Diameter 104mm
Housing Colour White
Lamp Included Yes
Series LED195
Height 73mm
Minimum Temperature -25°C
Standards Met CE Certified
Special Features 120° Prime Light Output Above the Vertical Axis
IP Rating IP65
Maximum Temperature +55°C
7 In stock - FREE next working day delivery available
Price Each
£ 60.82
(exc. VAT)
£ 72.98
(inc. VAT)
Units
Per unit
1 +
£60.82
