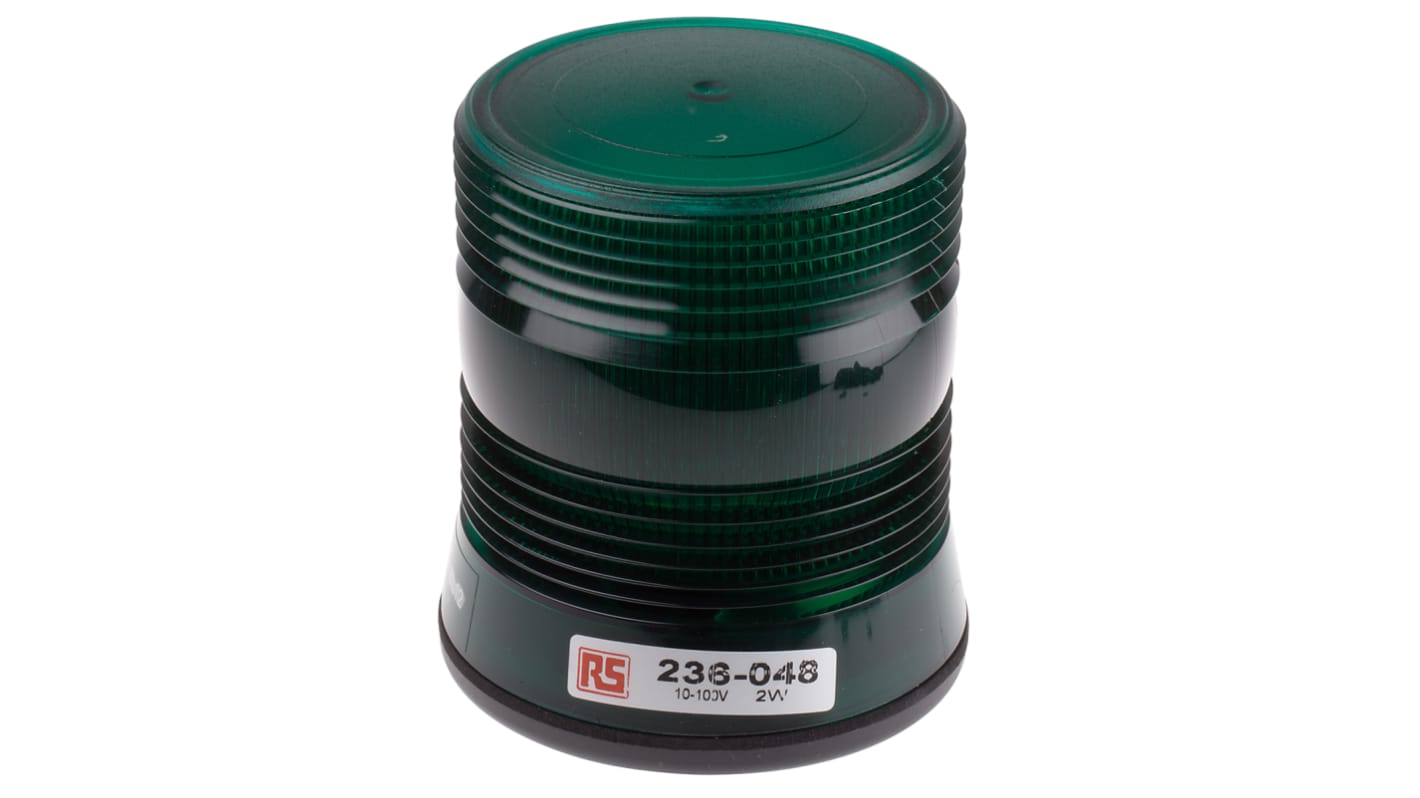

RS PRO Green Flashing Beacon, 10 → 100 V dc, Surface Mount, Xenon Bulb, IP56
- RS Stock No.:
- 236-048
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 236-048
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Supply Voltage | 10 → 100 V dc | |
| Light Effect | Flashing | |
| Lens Colour | Green | |
| Mounting Style | Surface Mount | |
| Bulb Type | Xenon | |
| Current Type | DC | |
| Current Consumption | 20 mA, 30 mA, 55 mA, 150 mA, 175 mA | |
| Base Diameter | 108mm | |
| Housing Colour | Black | |
| Lamp Included | Yes | |
| Series | V10991 | |
| Height | 130mm | |
| IP Rating | IP56 | |
| Minimum Temperature | -30°C | |
| Maximum Temperature | +50°C | |
| Standards Met | EMC, RoHS Compliant | |
| Special Features | Low Profile & Compact Design | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Supply Voltage 10 → 100 V dc | ||
Light Effect Flashing | ||
Lens Colour Green | ||
Mounting Style Surface Mount | ||
Bulb Type Xenon | ||
Current Type DC | ||
Current Consumption 20 mA, 30 mA, 55 mA, 150 mA, 175 mA | ||
Base Diameter 108mm | ||
Housing Colour Black | ||
Lamp Included Yes | ||
Series V10991 | ||
Height 130mm | ||
IP Rating IP56 | ||
Minimum Temperature -30°C | ||
Maximum Temperature +50°C | ||
Standards Met EMC, RoHS Compliant | ||
Special Features Low Profile & Compact Design | ||
- COO (Country of Origin):
- GB
RS PRO Multi-Voltage Xenon Beacons
This low current consumption Multi-Voltage Xenon Beacon from our own RS PRO brand is ideal for battery powered vehicles such as forklifts. The weatherproof Multi -Voltage Xenon Beacon is IP65 rated and supports side entry surface cables making it ideal for industrial applications.
Features and Benefits
• Broad voltage range: 10-100Vdc
• Low power consumption
• High output xenon beacon
• Rugged design that will ensure its durability
• Nominal flash rate: 75 per minute
• Operating temperature range: -30°C to + 50 °C
• Height: 130mm
• Three-point mount version (optional wire guard available)
• Low power consumption
• High output xenon beacon
• Rugged design that will ensure its durability
• Nominal flash rate: 75 per minute
• Operating temperature range: -30°C to + 50 °C
• Height: 130mm
• Three-point mount version (optional wire guard available)
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
Note
Sealed units
Supplied with
Lens and bulb
