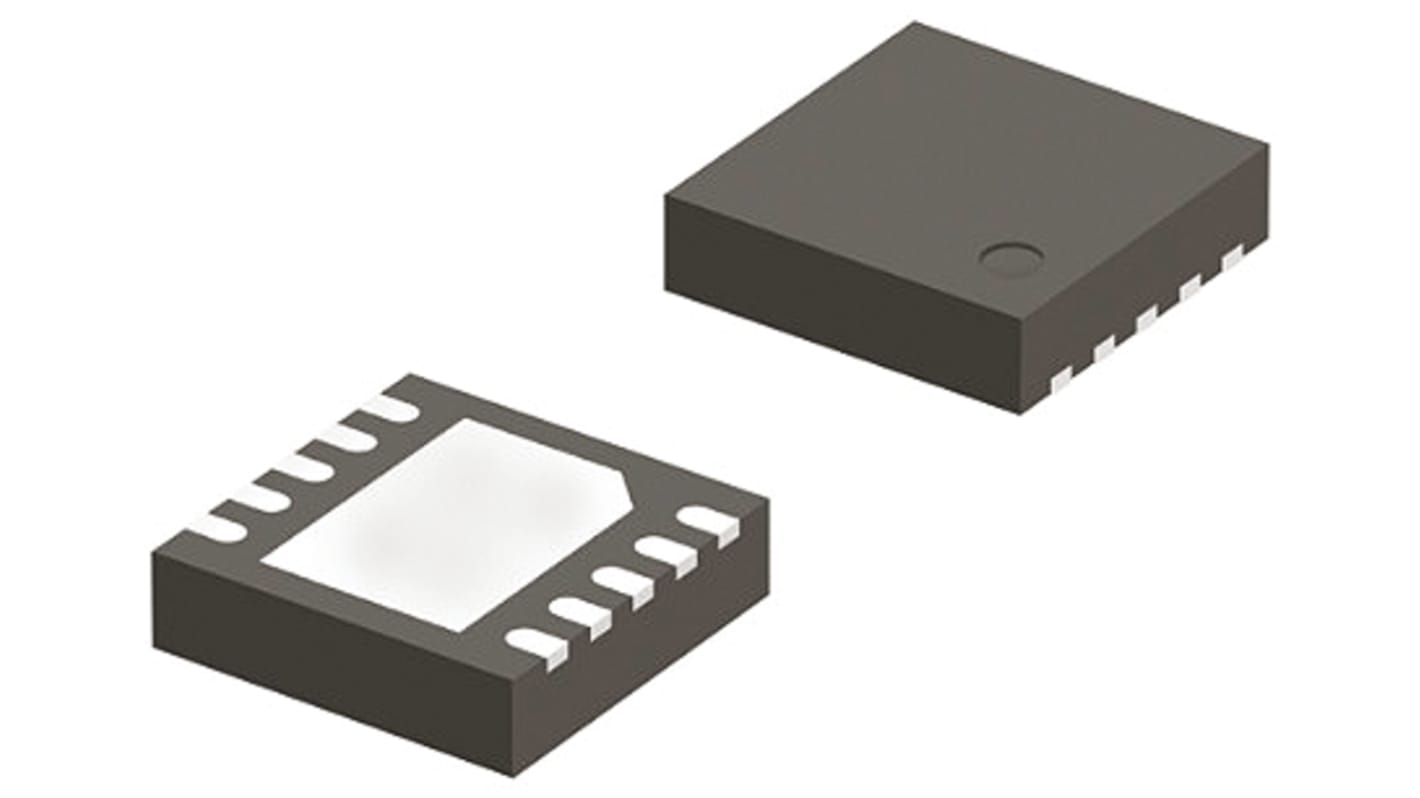

Analog Devices LTC4062EDD#PBF, Battery Charge Controller IC, 4.3 to 8 V, 5mA 10-Pin, D2PAK
- RS Stock No.:
- 823-0142
- Mfr. Part No.:
- LTC4062EDD#PBF
- Brand:
- Analog Devices
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 823-0142
- Mfr. Part No.:
- LTC4062EDD#PBF
- Brand:
- Analog Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Analog Devices | |
| Battery Type | Lithium-Ion | |
| Mounting Type | Surface Mount | |
| IC Type | Battery Charge Controller IC | |
| Package Type | D2PAK | |
| Pin Count | 10 | |
| Typical Operating Supply Voltage | 4.3 to 8 V | |
| Dimensions | 3 x 3 x 0.7mm | |
| Length | 3mm | |
| Width | 3mm | |
| Height | 0.7mm | |
| Maximum Operating Temperature | +85 °C | |
| Maximum Output Current | 5mA | |
| Maximum Output Voltage | 4.225 V | |
| Minimum Operating Temperature | -40 °C | |
| Minimum Output Voltage | 4.175 V | |
Select all | ||
|---|---|---|
Brand Analog Devices | ||
Battery Type Lithium-Ion | ||
Mounting Type Surface Mount | ||
IC Type Battery Charge Controller IC | ||
Package Type D2PAK | ||
Pin Count 10 | ||
Typical Operating Supply Voltage 4.3 to 8 V | ||
Dimensions 3 x 3 x 0.7mm | ||
Length 3mm | ||
Width 3mm | ||
Height 0.7mm | ||
Maximum Operating Temperature +85 °C | ||
Maximum Output Current 5mA | ||
Maximum Output Voltage 4.225 V | ||
Minimum Operating Temperature -40 °C | ||
Minimum Output Voltage 4.175 V | ||
Battery Charging & Monitoring Controllers, Linear Technology
Linear Technology created a wide range of battery charger IC offered in linear or switching topologies. They are suitable for any rechargeable battery chemistry this includes Lithium-Ion (Li-Ion), as well as Nickel Cadmium (NiCD) and Nickel metal hydride (NiMH). LTC monolithic switching regulator Xenon Photoflash chargers will allow you to trigger a Xenon flash lamp.
Battery monitoring ICs such as the multicell battery stack monitors incorporate 12-bit ADCs, precision voltage references, multiplexer and a serial interface. Applications may include backup battery systems, high voltage data acquisition systems, hybrid electric vehicles and high power portable.
Battery monitoring ICs such as the multicell battery stack monitors incorporate 12-bit ADCs, precision voltage references, multiplexer and a serial interface. Applications may include backup battery systems, high voltage data acquisition systems, hybrid electric vehicles and high power portable.
Battery Management, Linear Technology
