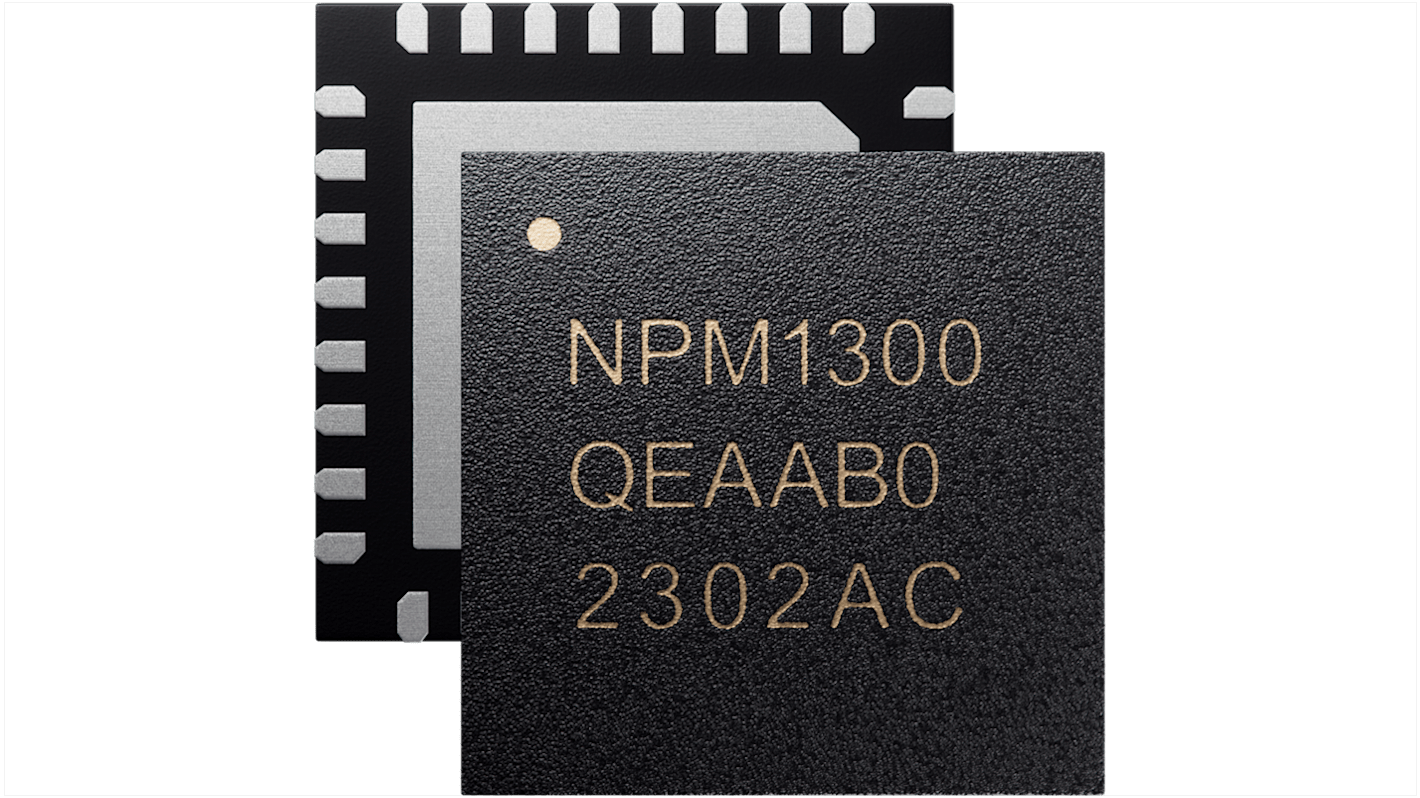

Nordic Semiconductor nPM1300-QEAA-R7, Li Ion Charger IC, 5.5 V, 50mA 32-Pin, QFN32

RS Stock No.:: 279-6401
Mfr. Part No.:: nPM1300-QEAA-R7
Brand:: Nordic Semiconductor

Nordic Semiconductor nPM1300-QEAA-R7, Li Ion Charger IC, 5.5 V, 50mA 32-Pin, QFN32

1500 In stock - FREE next working day delivery available

Added

Price Each (In a Pack of 2)

£2.85

(exc. VAT)

£3.42

(inc. VAT)

Units	Per unit	Per Pack*
2 - 98	£2.85	£5.70
100 - 248	£2.33	£4.66
250 - 498	£2.22	£4.44
500 - 998	£2.00	£4.00
1000 +	£1.90	£3.80
*price indicative

RS Stock No.:: 279-6401
Mfr. Part No.:: nPM1300-QEAA-R7
Brand:: Nordic Semiconductor

Technical Reference

Datasheet - nPM1300-QEAA-R7

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

The Nordic Semiconductor Power Management IC (PMIC) is designed compatible with an nRF52, nRF53, or nRF54 Series System on Chip (SoC) for developing low-power wireless solutions. The power management is achieved through flexible power regulation and a linear-mode lithium-ion (Li-ion), lithium-polymer (Li-poly), and lithium iron phosphate (LiFePO4) battery charger in a compact 5x5 mm QFN32 package. It is optimized for maximum efficiency and compact size, and is configurable through an I2C compatible Two Wire Interface (TWI). This interface enables easy access and configure a range of advanced system management functions, including a two-button hard reset, battery fuel gauging, system-level watchdog, power loss warning, and recovery from failed boot.

System-level watchdog and failed-boot recovery
Intelligent power-loss warning
Controlled via I2C compatible TWI
USB-C compatible
Reel packaging

Specifications

Attribute	Value
Battery Type	Lithium-Ion, Lithium-Polymer
Mounting Type	Surface Mount
Package Type	QFN32
IC Type	Power Management IC
Pin Count	32
Typical Operating Supply Voltage	5.5 V
Maximum Output Current	50mA
