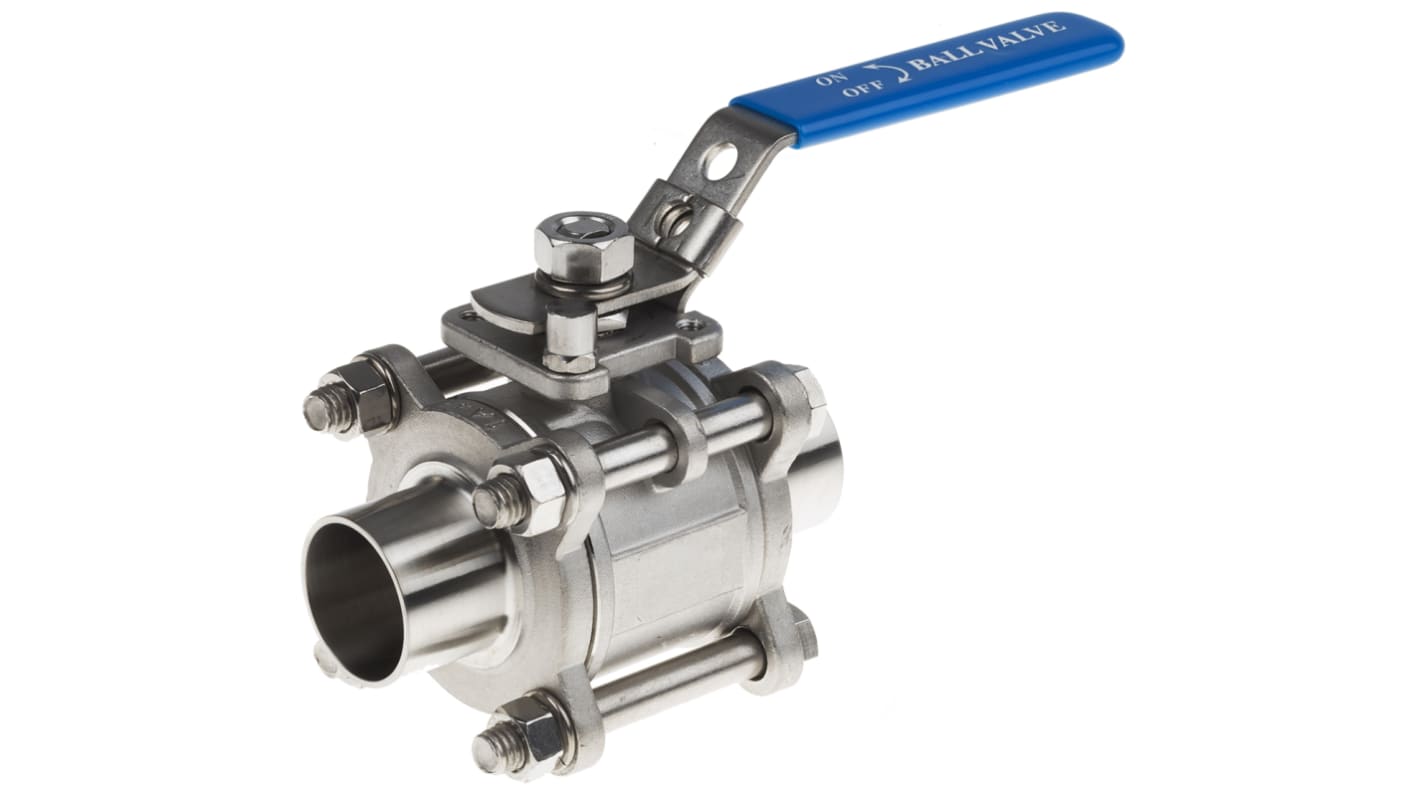

RS PRO Stainless Steel 2 Way, High Pressure Ball Valve
- RS Stock No.:
- 918-6368
- Brand:
- RS PRO
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 918-6368
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Type | 2 Way | |
| Ball Material | ASTM A351-CF8M | |
| Attachment Type | Compression | |
| Body Material | Stainless Steel | |
| Safe for Use With | Gas, Oil, Water | |
| Handle Type | Lever | |
| Handle Material | Stainless Steel | |
| Maximum Working Pressure psi | 232psi | |
| Handle Colour | Blue | |
| Maximum Working Pressure bar | 14bar | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Type 2 Way | ||
Ball Material ASTM A351-CF8M | ||
Attachment Type Compression | ||
Body Material Stainless Steel | ||
Safe for Use With Gas, Oil, Water | ||
Handle Type Lever | ||
Handle Material Stainless Steel | ||
Maximum Working Pressure psi 232psi | ||
Handle Colour Blue | ||
Maximum Working Pressure bar 14bar | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW
Clean Ball Valve 2012CM
The RS Pro 2012CM clean sanitary ball valve has been designed to a high standard. Its full tube bore allows maximum flow capacity with minimum pressure drop across the valve.
Features and Benefits
• Tube port 1/2”-4” (DN15-DN100)
• Body W.P. 1000 WOG (PN63
• Tube end W.P. 200 WOG
• W.T. -20°C-200°C (-4°F-392°F)
• Investment casting
• Blow-out proof stem
• Locking device
• ISO 5211 mounting pad
• Body W.P. 1000 WOG (PN63
• Tube end W.P. 200 WOG
• W.T. -20°C-200°C (-4°F-392°F)
• Investment casting
• Blow-out proof stem
• Locking device
• ISO 5211 mounting pad
Application Information
Ideal for applications within the pharmaceutical, biotech, semiconductor, vacuum and drinking water industries.
Standards
ASME BPE 2005, ANSI B16.34 and API598
