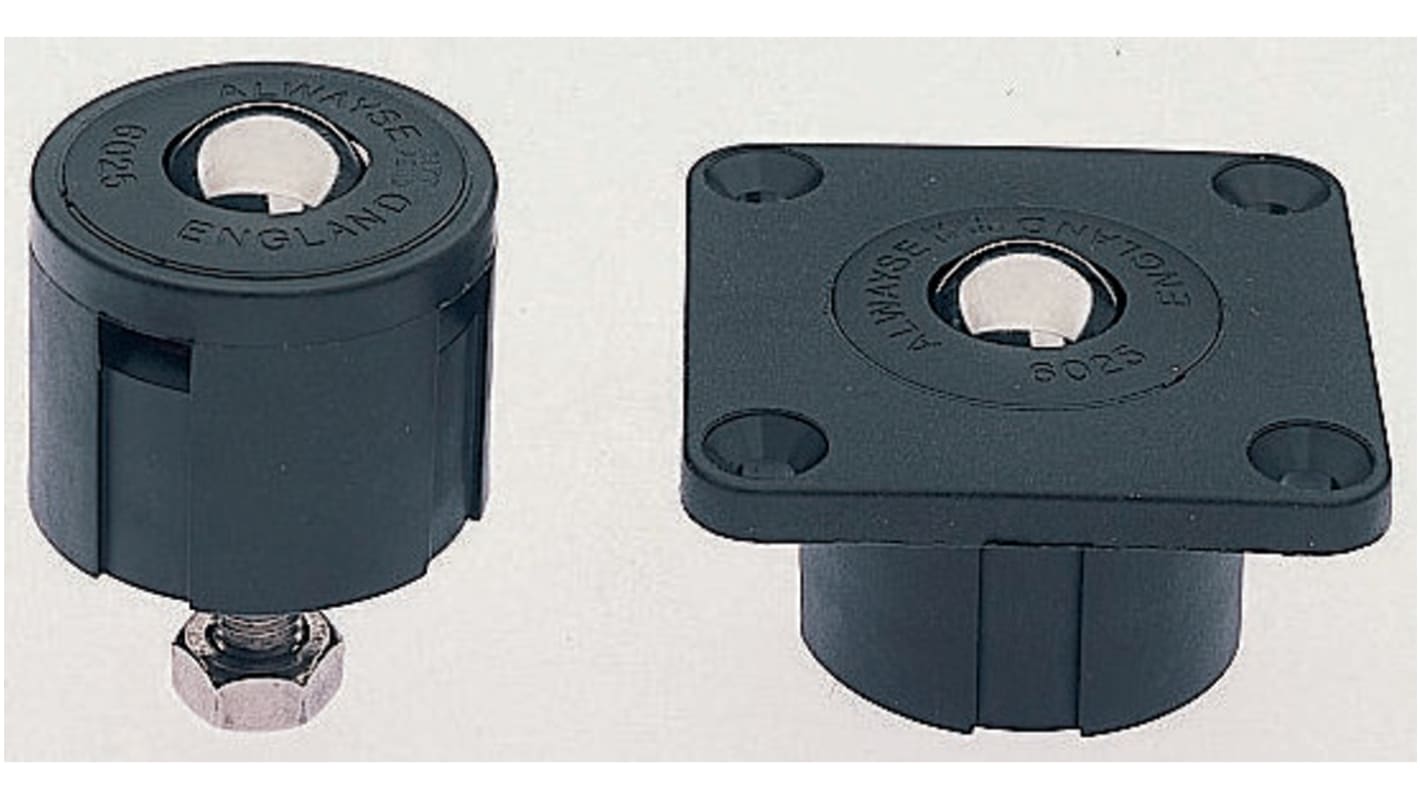

ALWAYSE Ball Transfer Unit with 25.4mm diameter Stainless Steel ball
- RS Stock No.:
- 445-9800
- Mfr. Part No.:
- 6025215
- Brand:
- ALWAYSE
Discontinued product
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 445-9800
- Mfr. Part No.:
- 6025215
- Brand:
- ALWAYSE
Legislation and Compliance
RoHS Status: Not Applicable
Product Details
Hi-Tech Ball Transfer Units
Pre-lubricated ball transfer units to move or transfer loads in any direction. Max speed 1m/sec. Manufactured to general tolerance of ±0.3mm. Plated with zinc/iron alloy finish for protection in use. Operating temperature -30°C to +70°C (continuous use, depending on seals used).
Double-sealed to prevent dirt ingress
Rust-proof materials to prevent corrosion
Re-circulating ball mechanism with hardened track ensures long life
Rust-proof materials to prevent corrosion
Re-circulating ball mechanism with hardened track ensures long life
Specifications
Attribute | Value |
|---|---|
| Ball Diameter | 25.4mm |
| Mounting Type | 4-Hole Flange |
| Maximum Load | 240kg |
| Load Ball Material | Stainless Steel |
| Case Material | Steel |
| Flange Length | 76mm |
| Flange Width | 76mm |
