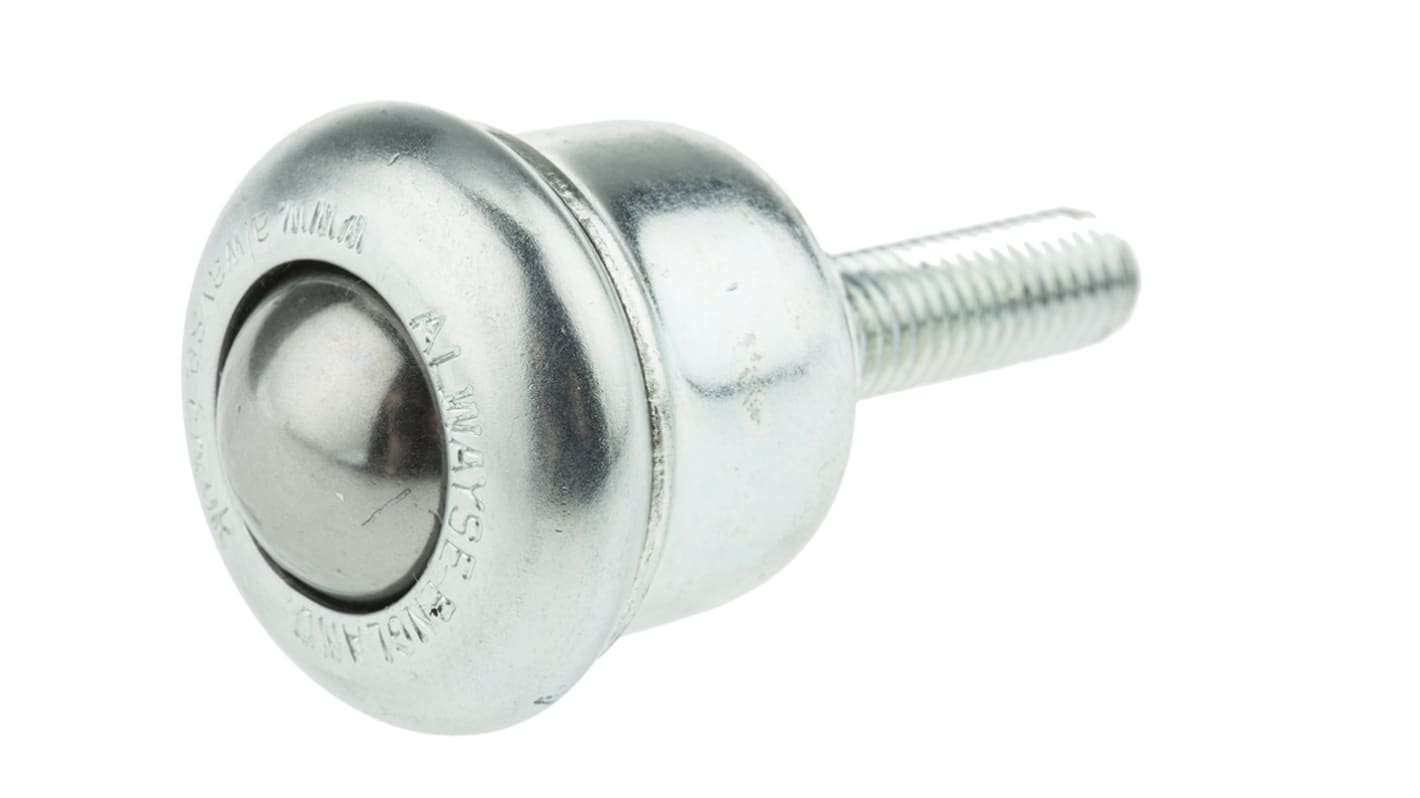

ALWAYSE Ball Transfer Unit with 19mm diameter Steel ball
- RS Stock No.:
- 687-635
- Mfr. Part No.:
- 30021330
- Brand:
- ALWAYSE
Bulk discount available
Subtotal (1 unit)*
£3.97
(exc. VAT)
£4.76
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 3 unit(s), ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | £3.97 |
| 5 - 9 | £3.81 |
| 10 - 24 | £3.72 |
| 25 + | £3.64 |
*price indicative
- RS Stock No.:
- 687-635
- Mfr. Part No.:
- 30021330
- Brand:
- ALWAYSE
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ALWAYSE | |
| Ball Diameter | 19mm | |
| Mounting Type | Stud | |
| Maximum Load | 25kg | |
| Load Ball Material | Steel | |
| Case Material | Steel | |
| Stud Diameter | M8 | |
| Stud Length | 30mm | |
Select all | ||
|---|---|---|
Brand ALWAYSE | ||
Ball Diameter 19mm | ||
Mounting Type Stud | ||
Maximum Load 25kg | ||
Load Ball Material Steel | ||
Case Material Steel | ||
Stud Diameter M8 | ||
Stud Length 30mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
ALWAYSE Bolt Fixing Ball Transfer Unit
The ALWAYSE stud mount bolt fixing ball transfer unit is a highly efficient device with a maximum load capacity is 25kg. This unit is used to move or transfer loads in all direction with a maximum speed of 1m/second. It is available in a wide choice of load capacities, sizes and fixings.
Features and Benefits
Ball diameter is 19mm
Flange type fitting
Large support area
Case material is steel with zinc plated
Load ball material is steel
Stud diameter is M8
Stud length is 30mm
Operating temperature ranging between -30°C and 70°C
Flange type fitting
Large support area
Case material is steel with zinc plated
Load ball material is steel
Stud diameter is M8
Stud length is 30mm
Operating temperature ranging between -30°C and 70°C
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
