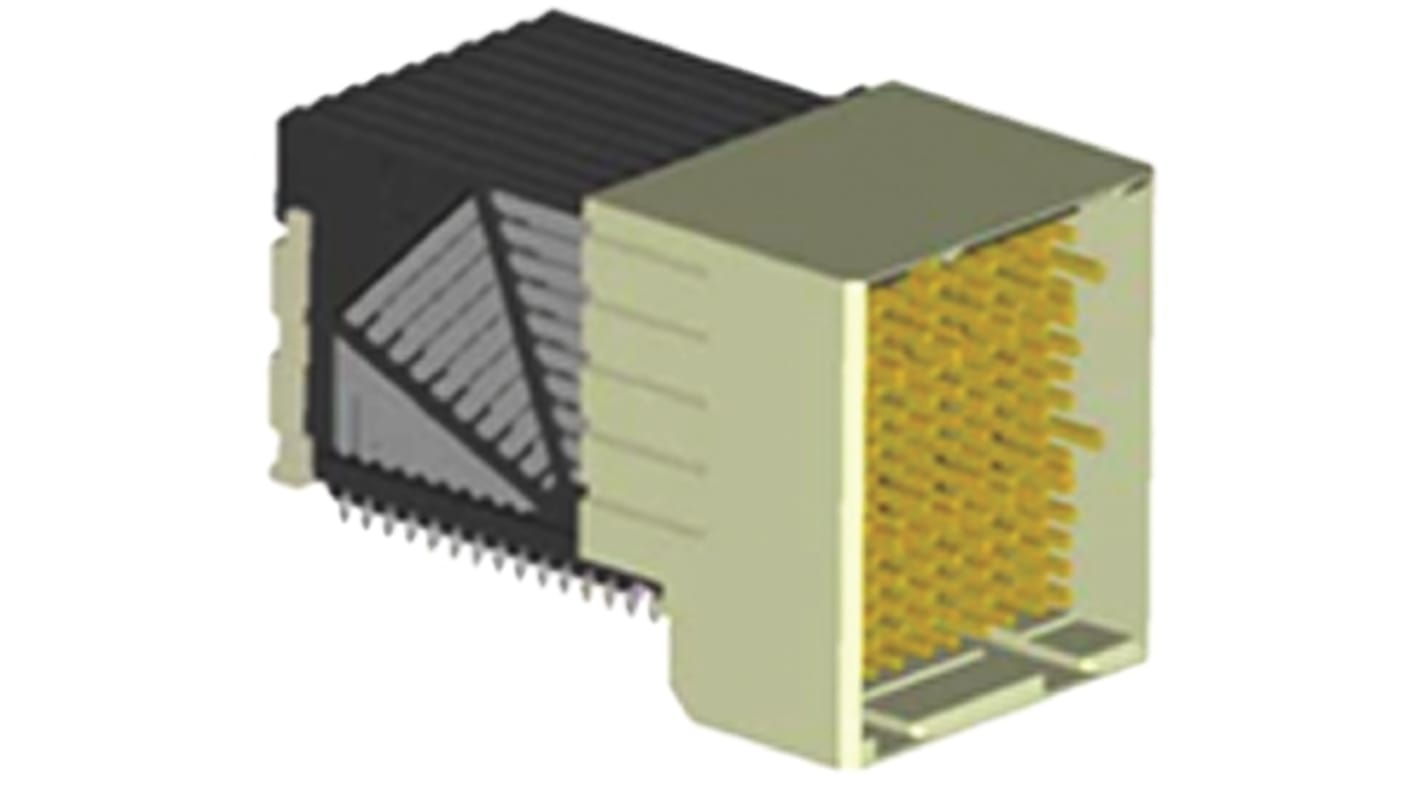

Amphenol Communications Solutions, Airmax VS 2mm Pitch High Speed Backplane Connector, Female, Right Angle, 10 Column,
- RS Stock No.:
- 714-1316
- Mfr. Part No.:
- 10035754-101LF
- Brand:
- Amphenol FCI
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 714-1316
- Mfr. Part No.:
- 10035754-101LF
- Brand:
- Amphenol FCI
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Amphenol FCI | |
| Backplane Connector Type | High Speed | |
| Gender | Female | |
| Number of Contacts | 120 | |
| Number of Columns | 10 | |
| Number of Rows | 12 | |
| Body Orientation | Right Angle | |
| Housing Material | Thermoplastic | |
| Pitch | 2mm | |
| Mounting Type | Through Hole | |
| Contact Material | Copper Alloy | |
| Contact Plating | Gold over Nickel | |
| Termination Method | Press-In | |
| Series | Airmax VS | |
Select all | ||
|---|---|---|
Brand Amphenol FCI | ||
Backplane Connector Type High Speed | ||
Gender Female | ||
Number of Contacts 120 | ||
Number of Columns 10 | ||
Number of Rows 12 | ||
Body Orientation Right Angle | ||
Housing Material Thermoplastic | ||
Pitch 2mm | ||
Mounting Type Through Hole | ||
Contact Material Copper Alloy | ||
Contact Plating Gold over Nickel | ||
Termination Method Press-In | ||
Series Airmax VS | ||
- COO (Country of Origin):
- MY
Airmax - receptacle
FCI - Airmax
The FCI AirMax VS® Hard Metric Connectors use a shield-less design with an air di-electric between conductors and are designed to provide options for the protected receptacle to be on the backplane/midplane or on the daughter card. Options for the FCI AirMax VS® Hard Metric Connectors include a range of differential pairs/column, column pitches, or column counts, optimized for either 100Ω or 85Ω impedance to match channel impedance and reduce loss, halogen-free signal modules, and the availability of power and guide modules to complement the signal connector offering.
