RS PRO Axial Fan, 24 V dc, DC Operation, 68m³/h, 2.41W, 100mA Max, 80 x 80 x 25mm
- RS Stock No.:
- 619-7138
- Distrelec Article No.:
- 304-03-342
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£18.82
(exc. VAT)
£22.58
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 409 unit(s) ready to ship
- Plus 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £18.82 |
5 - 9 | £17.30 |
10 - 24 | £16.56 |
25 - 49 | £15.42 |
50 + | £14.20 |
*price indicative
- RS Stock No.:
- 619-7138
- Distrelec Article No.:
- 304-03-342
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Supply Voltage | 24 V dc | |
Height | 80mm | |
AC or DC Operation | DC | |
Power Consumption | 2.41W | |
Width | 80mm | |
Depth | 25mm | |
Maximum Current | 100mA | |
Dimensions | 80 x 80 x 25mm | |
Air Flow | 68m³/h | |
Termination Type | Lead Wire | |
Noise Level | 35dB | |
Fan Speed | 3000rpm | |
Direction of Curve | Backward | |
Sensor Type | Open Collector | |
Bearing Type | Ball | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Supply Voltage 24 V dc | ||
Height 80mm | ||
AC or DC Operation DC | ||
Power Consumption 2.41W | ||
Width 80mm | ||
Depth 25mm | ||
Maximum Current 100mA | ||
Dimensions 80 x 80 x 25mm | ||
Air Flow 68m³/h | ||
Termination Type Lead Wire | ||
Noise Level 35dB | ||
Fan Speed 3000rpm | ||
Direction of Curve Backward | ||
Sensor Type Open Collector | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- CN

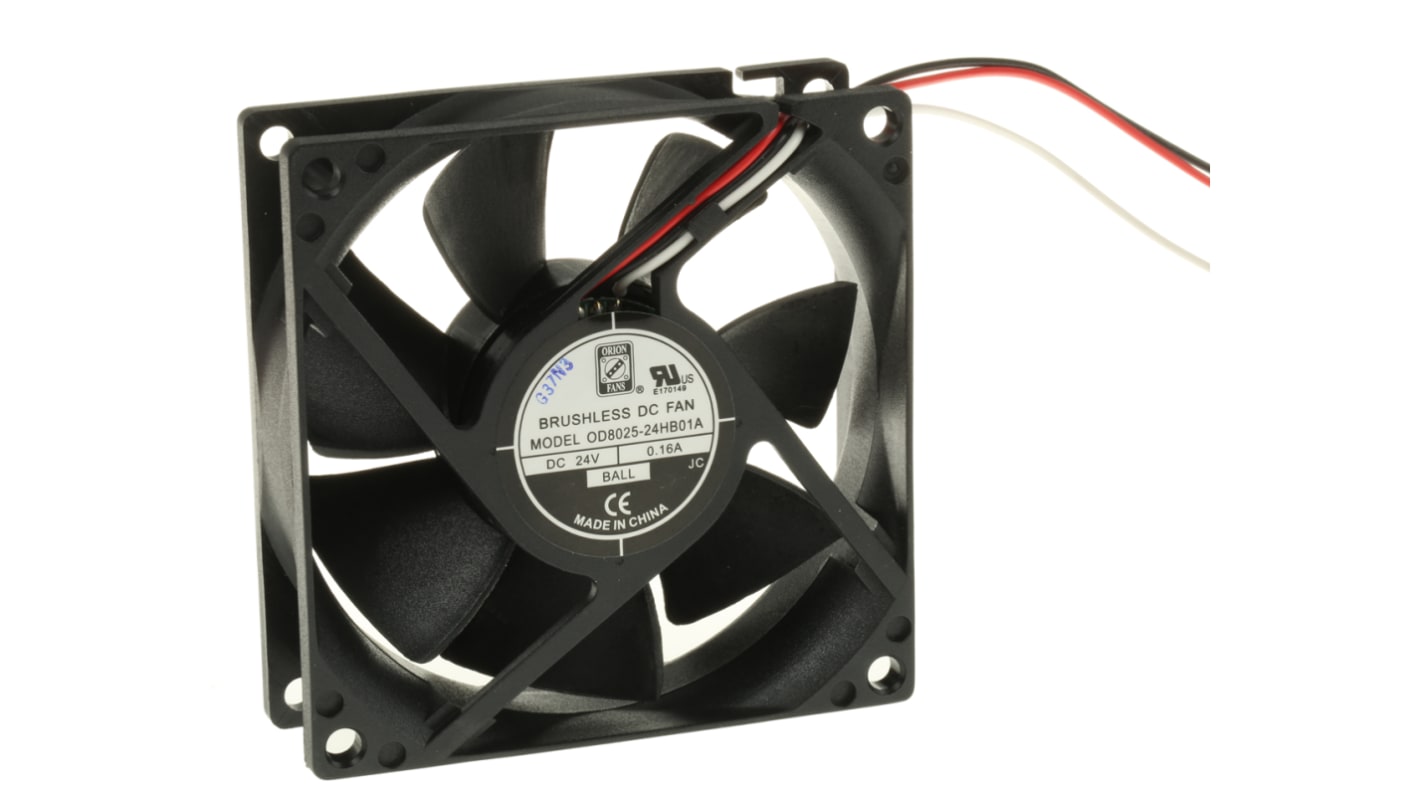

RS PRO 24 V DC, DC Axial Fan, 80 x 80 x 25 mm, 68 m³/h, 2.41 W
Use this RS PRO axial fan to cool and ventilate your instruments or components. It prevents overheating in your cabinets and enclosures by keeping your equipment cool.
It's made of a non-flammable PBT (polybutylene terephthalate) thermoplastic material, ensuring the fan is durable and won't pose a fire hazard. Its resistance to stains and chemicals also means you can easily wipe it clean.
The axial fan meets the Restriction of Hazardous Substances (RoHS) requirements, meaning it contains only trace amounts of any harmful materials. This unit is commonly used in server racks to keep routers, hubs and patch panels cool.
It's made of a non-flammable PBT (polybutylene terephthalate) thermoplastic material, ensuring the fan is durable and won't pose a fire hazard. Its resistance to stains and chemicals also means you can easily wipe it clean.
The axial fan meets the Restriction of Hazardous Substances (RoHS) requirements, meaning it contains only trace amounts of any harmful materials. This unit is commonly used in server racks to keep routers, hubs and patch panels cool.
Features and Benefits
- DC operation
- Airflow of 68 m³/h
- Ball-bearing type
- Dimensions of 80 x 80 x 25 mm
- Backward direction of curve
- Fan speed of 3000 rpm (rotations per minute)
- Maximum current of 100 mA
- Noise level of 35 dB
- Power consumption of 2.41 W
- Open collector sensor output type
- Special features of auto restart, brushless and polarity protected
- Static pressure of 0.16 in/H2O
- Supply voltage of 24 V DC
- Lead wire termination type
