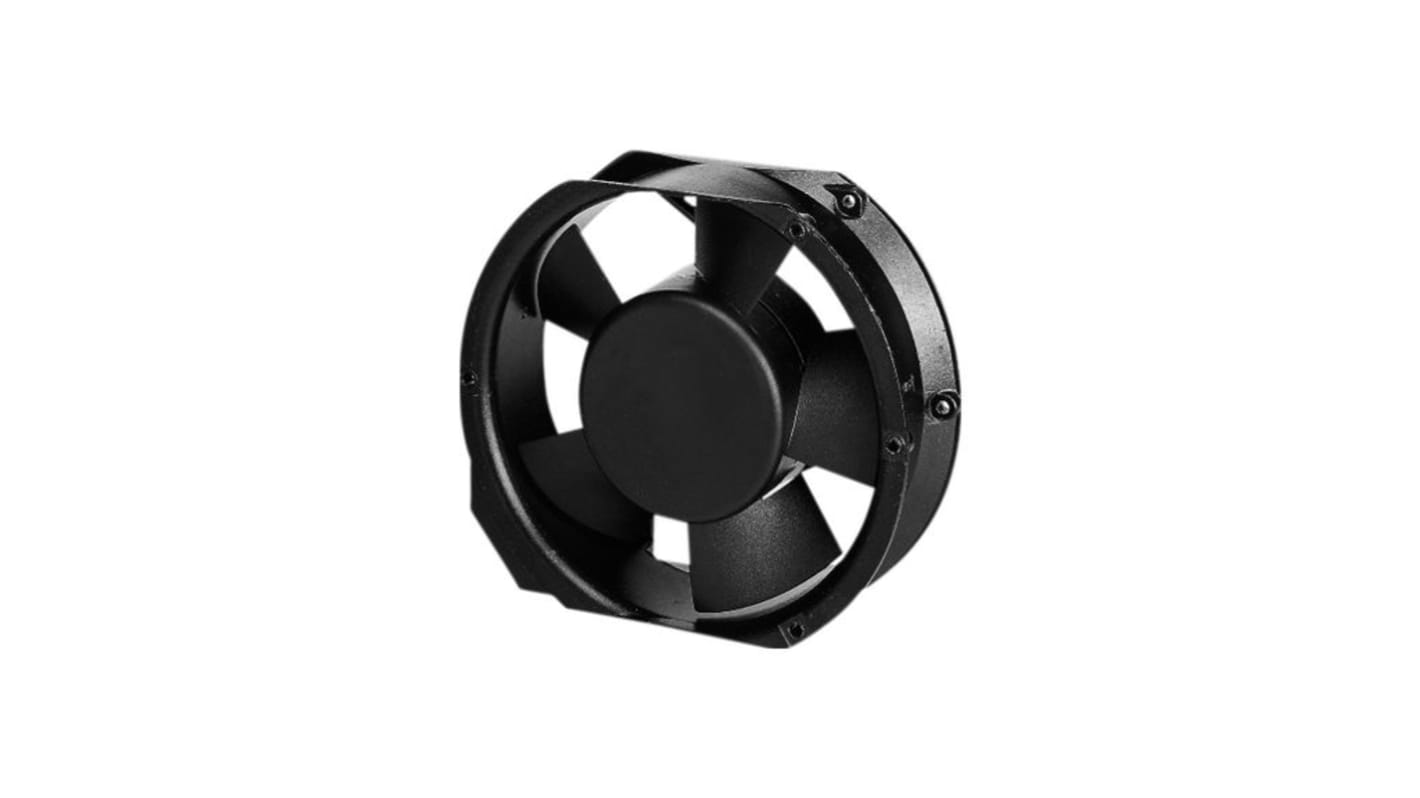

Sunon Axial Fan, 230 V ac, dc Operation, 335cfm, 30W, 150mA Max, 176 x 176 x 89mm
- RS Stock No.:
- 288-4326
- Distrelec Article No.:
- 301-48-044
- Mfr. Part No.:
- A2179-HBL TC.GN
- Brand:
- Sunon
Subtotal (1 unit)*
£119.29
(exc. VAT)
£143.15
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 83 unit(s), ready to ship from another location
Units | Per unit |
---|---|
1 + | £119.29 |
*price indicative
- RS Stock No.:
- 288-4326
- Distrelec Article No.:
- 301-48-044
- Mfr. Part No.:
- A2179-HBL TC.GN
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Sunon | |
Supply Voltage | 230 V ac | |
AC or DC Operation | dc | |
Height | 176mm | |
Width | 176mm | |
Power Consumption | 30W | |
Maximum Current | 150mA | |
Depth | 89mm | |
Dimensions | 176 x 176 x 89mm | |
Air Flow | 335cfm | |
Select all | ||
---|---|---|
Brand Sunon | ||
Supply Voltage 230 V ac | ||
AC or DC Operation dc | ||
Height 176mm | ||
Width 176mm | ||
Power Consumption 30W | ||
Maximum Current 150mA | ||
Depth 89mm | ||
Dimensions 176 x 176 x 89mm | ||
Air Flow 335cfm | ||
- COO (Country of Origin):
- CN
The high-quality axial AC fan with dimensions of 176x176x89 mm. It is designed to provide reliable and efficient cooling for various applications. With its alveolate motor construction and thermal protection, this fan ensures long-lasting performance and motor safety. It operates at a rated voltage of 220-240 VAC with a starting voltage of 150 VAC.
Alveolate motor construction for reliable performance
Insulation Resistance of 500 Megohms minimum for safety
Thermal protection to prevent motor overheating
Low noise level measured in a semi-anechoic chamber
Wide operating voltage range of 150-250 VAC
Precision ball bearing system for smooth operation
Rated power and current with a tolerance of 15%
High air performance with stabilized fan speed
Clockwise rotation viewed from the front of the fan blade
Operating temperature range of -10 to +70 deg. C
Insulation Resistance of 500 Megohms minimum for safety
Thermal protection to prevent motor overheating
Low noise level measured in a semi-anechoic chamber
Wide operating voltage range of 150-250 VAC
Precision ball bearing system for smooth operation
Rated power and current with a tolerance of 15%
High air performance with stabilized fan speed
Clockwise rotation viewed from the front of the fan blade
Operating temperature range of -10 to +70 deg. C
