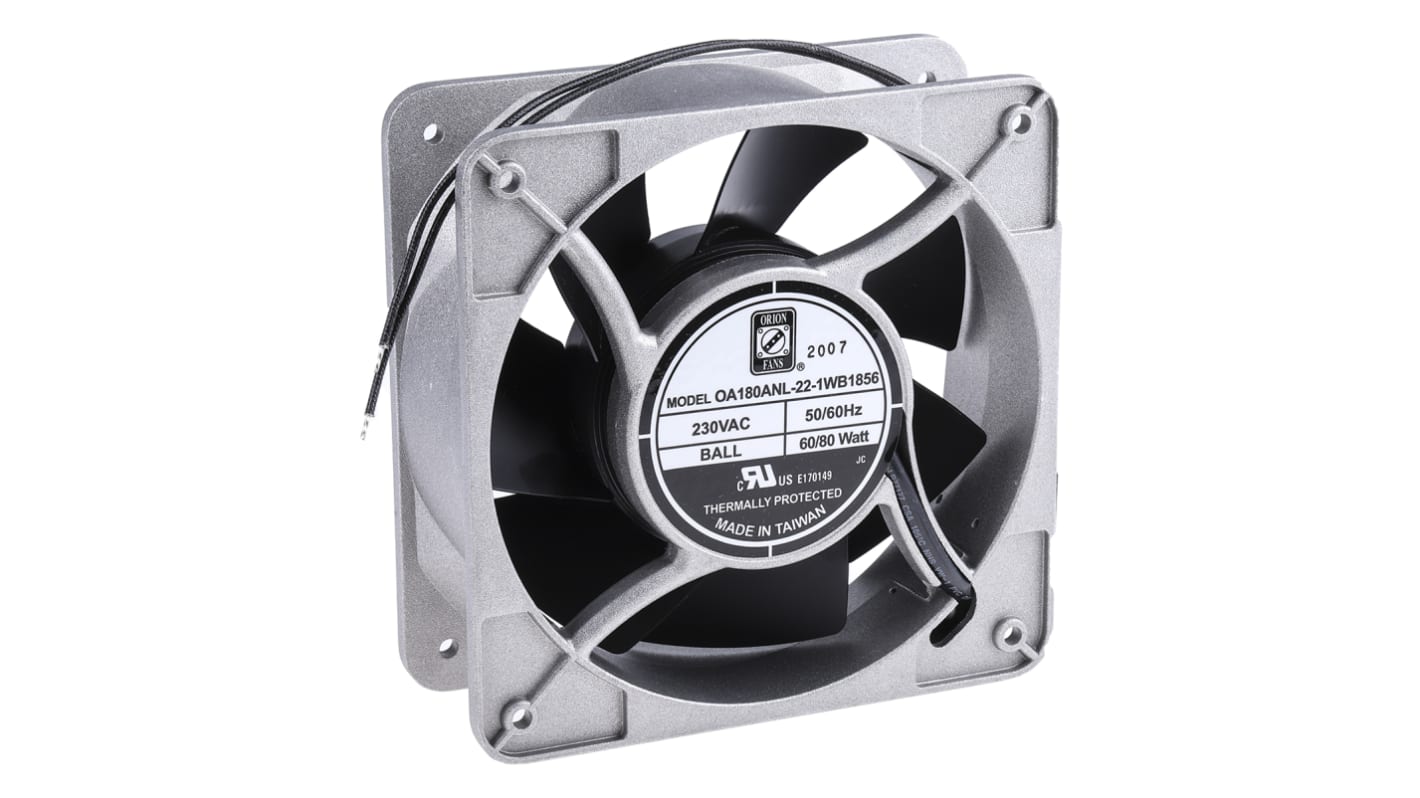

RS PRO Axial Fan, 230 V ac, AC Operation, 679.6m³/h, 80W, IP56, 180 x 180 x 65mm
- RS Stock No.:
- 175-9823
- Distrelec Article No.:
- 304-05-363
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£289.29
(exc. VAT)
£347.15
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 11 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from 09 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £289.29 |
5 - 9 | £275.40 |
10 - 24 | £262.96 |
25 - 49 | £251.68 |
50 + | £240.98 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£128.15
(exc. VAT)
£153.78
(inc. VAT)
- RS Stock No.:
- 175-9823
- Distrelec Article No.:
- 304-05-363
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Supply Voltage | 230 V ac | |
Height | 180mm | |
AC or DC Operation | AC | |
Power Consumption | 80W | |
Width | 180mm | |
Depth | 65mm | |
Termination Type | Lead Wire | |
Air Flow | 679.6m³/h | |
Dimensions | 180 x 180 x 65mm | |
Noise Level | 65dB | |
Fan Speed | 3250rpm | |
Direction of Curve | Backward | |
Bearing Type | Ball | |
IP Rating | IP56 | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Supply Voltage 230 V ac | ||
Height 180mm | ||
AC or DC Operation AC | ||
Power Consumption 80W | ||
Width 180mm | ||
Depth 65mm | ||
Termination Type Lead Wire | ||
Air Flow 679.6m³/h | ||
Dimensions 180 x 180 x 65mm | ||
Noise Level 65dB | ||
Fan Speed 3250rpm | ||
Direction of Curve Backward | ||
Bearing Type Ball | ||
IP Rating IP56 | ||
- COO (Country of Origin):
- TW
RS PRO, 230 V AC, Axial Fan, 180 mm x 180 mm x 65 mm, 679.6 m³/h, 80 W, IP56
Designed to keep your electronic and IT equipment cool, the RS PRO axial fan protects components from breakdowns caused by overheating. This product benefits from a hardwearing dual ball double-sealed bearing system to increase longevity. For added convenience, fans with ball bearings can be mounted in any axis position allowing air to be pushed down and drawn in from different directions for more efficient ventilation.
Featuring a backward curve, this axial fan is best suited to environments in need of a medium air-flow. It will typically provide 60,000 hours of service and has an IP56 rating, meaning it's protected from limited dust ingress, as well as high-pressure water jets from any direction.
You'll primarily find fans such as these used in commercial and industrial settings to cool electrical cabinets and server rooms.
Featuring a backward curve, this axial fan is best suited to environments in need of a medium air-flow. It will typically provide 60,000 hours of service and has an IP56 rating, meaning it's protected from limited dust ingress, as well as high-pressure water jets from any direction.
You'll primarily find fans such as these used in commercial and industrial settings to cool electrical cabinets and server rooms.
Features and Benefits
• Dimensions of 180 mm (H) x 180 mm (W) x 65 mm (D)
• Supply voltage of 230 V AC
• Power consumption of 80 W
• Airflow of 679.6 m³/h
• Noise level of 65 dB
• Fan speed of 3250 rpm
• Backward curve for medium airflow
• Ball-bearing system
• IP56 rated for protection against limited dust ingress and high-pressure water jets
• Supply voltage of 230 V AC
• Power consumption of 80 W
• Airflow of 679.6 m³/h
• Noise level of 65 dB
• Fan speed of 3250 rpm
• Backward curve for medium airflow
• Ball-bearing system
• IP56 rated for protection against limited dust ingress and high-pressure water jets
RS PRO
RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
theyre only given the RS PRO Seal of Approval if were confident of their exceptional quality, which means you can be confident too.
