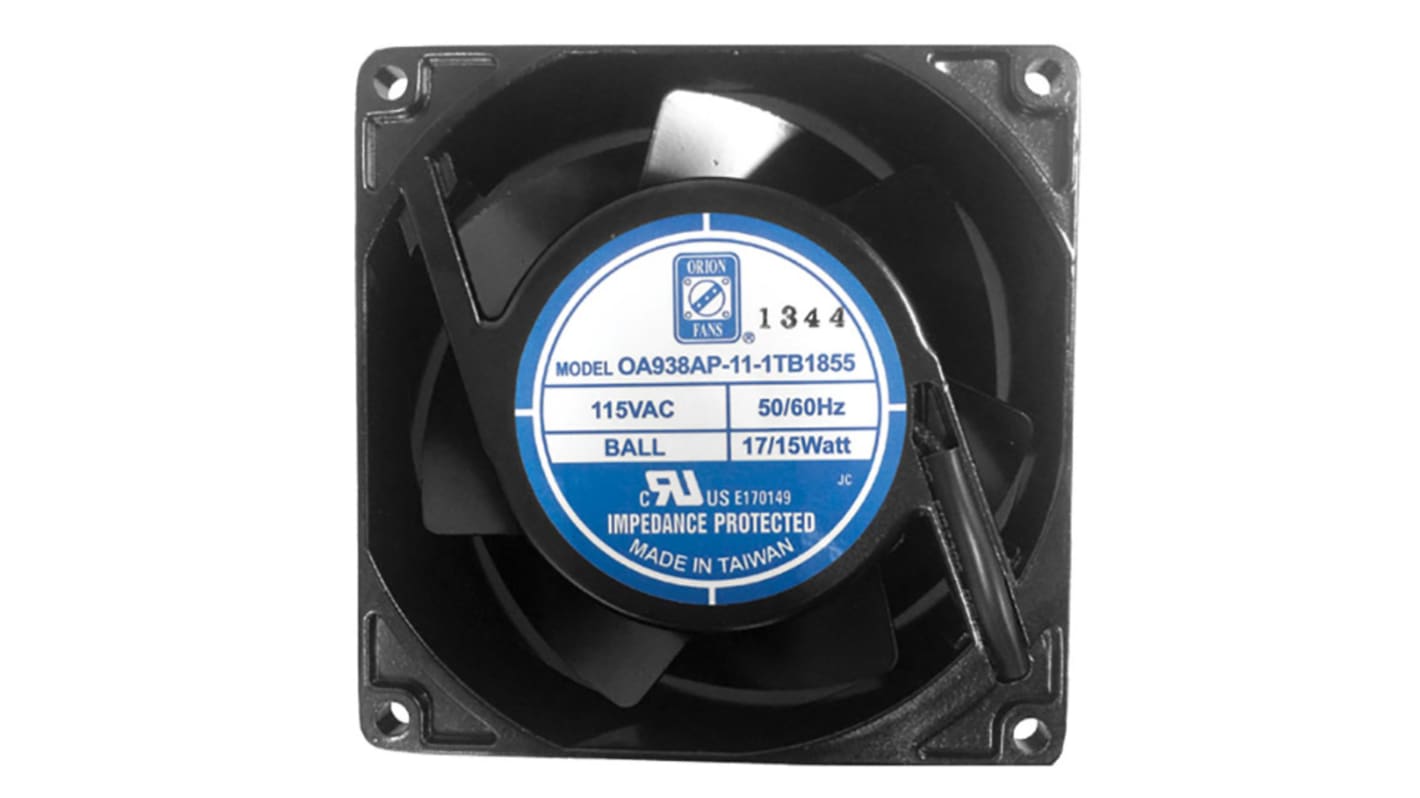

Install this RS PRO AC axial fan with your electrical devices to prevent them from overheating. The forward-curving blades rotate to help air circulation, cooling your work area and machinery down.
The fan's motor is impedance protected, automatically resetting if a voltage problem occurs. This means it won't burn out. The product's die-cast aluminium frame is robust and durable, keeping the fan from loosening once installed.
This fan has a high speed of 3150 rpm (revolutions per minute), but operates at only 40 decibels (dB), just a bit louder than a whisper, so it won't contribute to workplace noise levels. You can use it with a wide range of devices including server racks, electrical cabinets and production line machinery.

• AC operation
• Airflow of 93.4 m³/h
• Dimensions of 92 (height) x 92 (width) x 38 mm (depth)
• Forward direction of curve
• Fan speed of 3150 rpm
• Ingress Protection rating of IP55
• Noise level of 40 dB
• Power consumption of 15 W
• Dual ball bearing
• Impedance protected motor
• Shaded pole motor
• Static pressure of 0.22 in H2O
• Supply voltage of 230 V AC
• Lead wire termination type

The RS PRO AC Axial Fan keeps the temperature of your equipment low and prevents the overheating of motors and instruments. The fan's diecast aluminium frame is lightweight, which makes it easy to install at heights or in ceilings and walls. The frame material is also durable and resistant to corrosion, so you can confidently use it in harsher environments like hot and humid industrial kitchens.

Dual ball bearing
Thermally protected motor
Lead wire termination type
