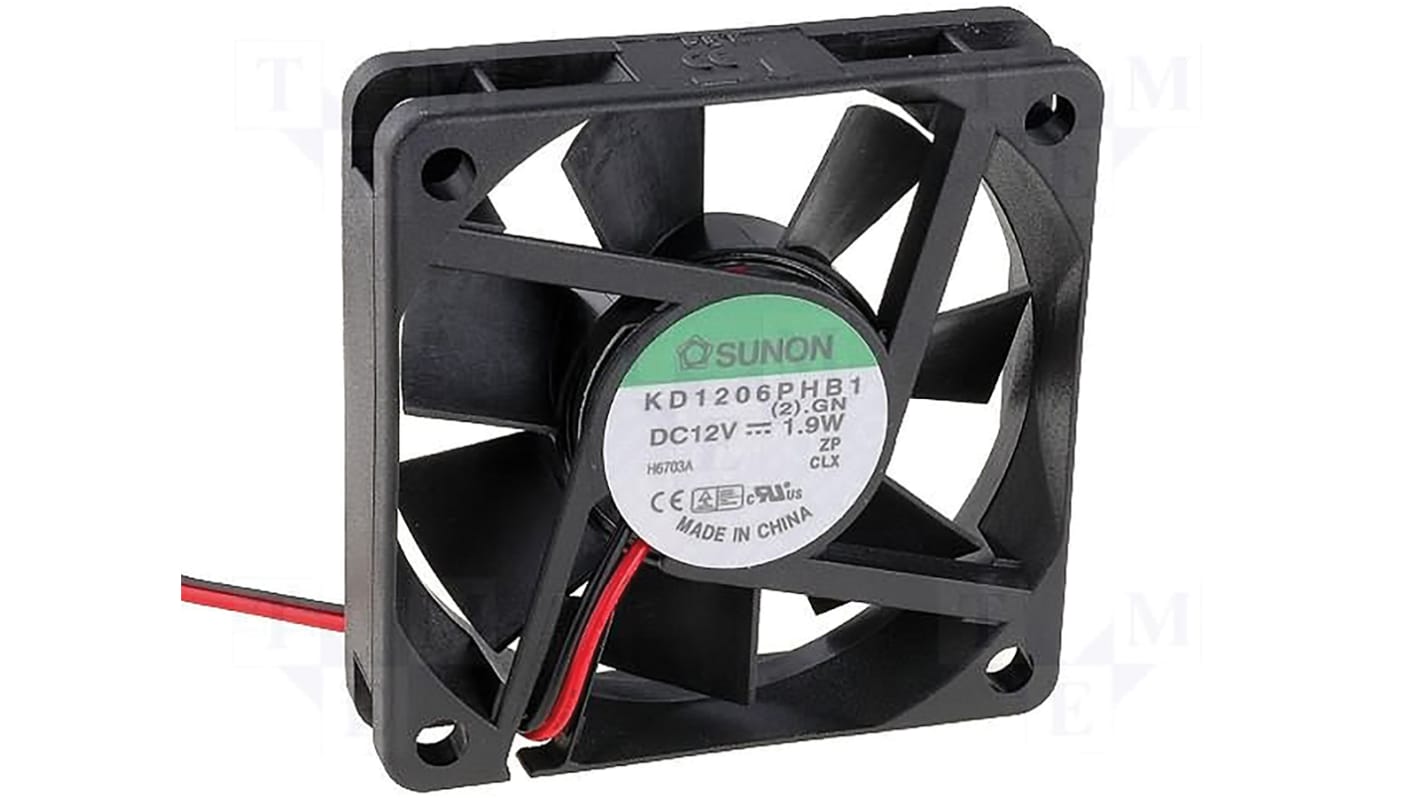

Sunon KD Series Axial Fan, 12 V dc, DC Operation, 35.7m³/h, 1.8W, 154mA Max, 60 x 60 x 15mm
- RS Stock No.:
- 111-8357
- Mfr. Part No.:
- KD1206PHB1(2).GN
- Brand:
- Sunon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£12.76
(exc. VAT)
£15.31
(inc. VAT)
- RS Stock No.:
- 111-8357
- Mfr. Part No.:
- KD1206PHB1(2).GN
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Supply Voltage | 12 V dc | |
| Height | 60mm | |
| AC or DC Operation | DC | |
| Power Consumption | 1.8W | |
| Width | 60mm | |
| Maximum Current | 154mA | |
| Depth | 15mm | |
| Termination Type | Lead Wire | |
| Air Flow | 35.7m³/h | |
| Dimensions | 60 x 60 x 15mm | |
| Noise Level | 37dB | |
| Fan Speed | 4300rpm | |
| Direction of Curve | Forward | |
| Bearing Type | Ball | |
Select all | ||
|---|---|---|
Brand Sunon | ||
Supply Voltage 12 V dc | ||
Height 60mm | ||
AC or DC Operation DC | ||
Power Consumption 1.8W | ||
Width 60mm | ||
Maximum Current 154mA | ||
Depth 15mm | ||
Termination Type Lead Wire | ||
Air Flow 35.7m³/h | ||
Dimensions 60 x 60 x 15mm | ||
Noise Level 37dB | ||
Fan Speed 4300rpm | ||
Direction of Curve Forward | ||
Bearing Type Ball | ||
- COO (Country of Origin):
- CN
Slimline Fans
Thermoplastic frame fans suitable for cooling electronic systems or individual components
Life expectancy 45000 hrs (25°C)
Blow or extract mounting
Life expectancy 45000 hrs (25°C)
Blow or extract mounting
