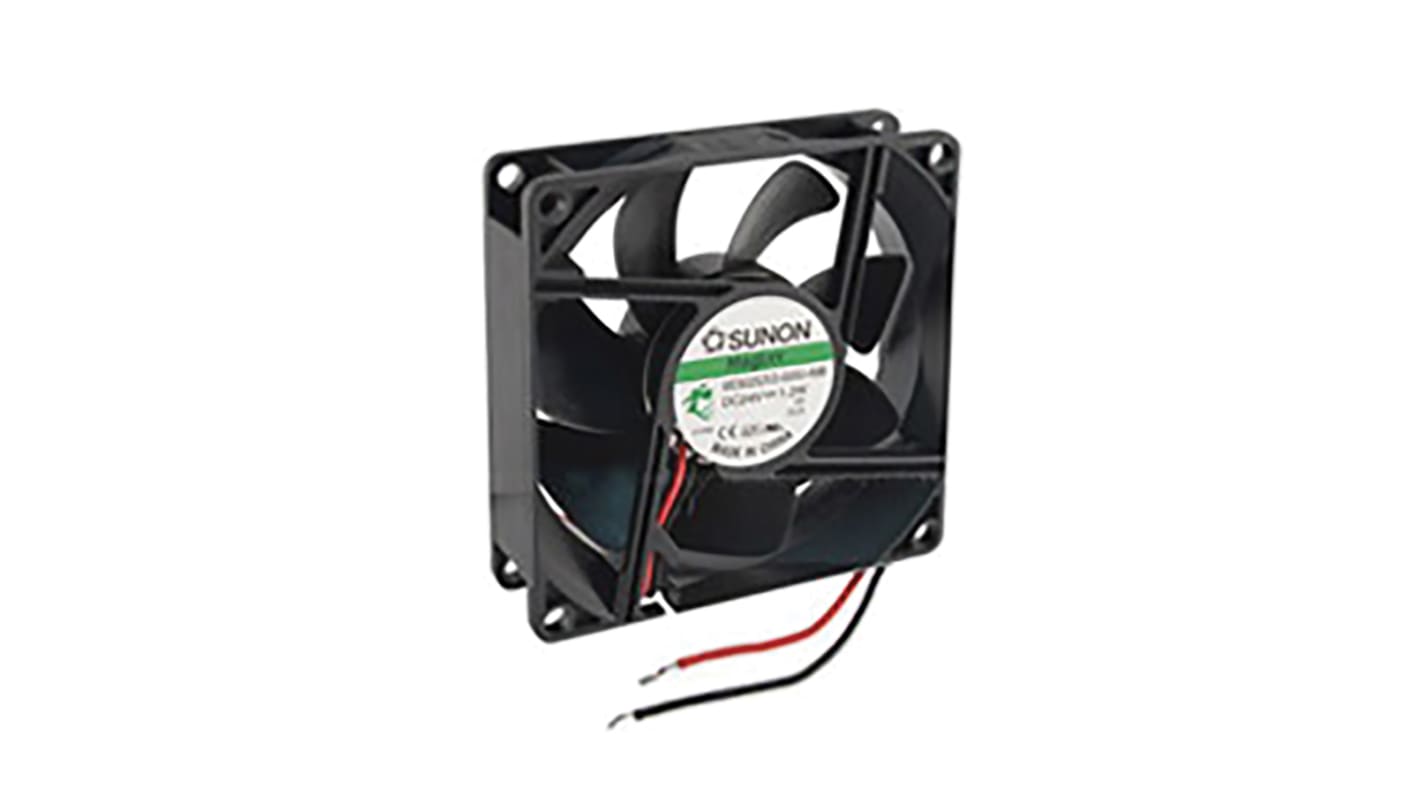

Sunon M Series Axial Fan, 24 V dc, DC Operation, 33cfm, 1.2W, 49mA Max, 80 x 80 x 25mm
- RS Stock No.:
- 111-8317
- Mfr. Part No.:
- ME80252V3-000U-A99
- Brand:
- Sunon
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 111-8317
- Mfr. Part No.:
- ME80252V3-000U-A99
- Brand:
- Sunon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Sunon | |
| Supply Voltage | 24 V dc | |
| Height | 80mm | |
| AC or DC Operation | DC | |
| Power Consumption | 1.2W | |
| Width | 80mm | |
| Depth | 25mm | |
| Maximum Current | 49mA | |
| Dimensions | 80 x 80 x 25mm | |
| Air Flow | 33cfm | |
| Termination Type | Lead Wire | |
| Noise Level | 28dB | |
| Fan Speed | 2600rpm | |
| Direction of Curve | Forward | |
| Bearing Type | Vapo | |
Select all | ||
|---|---|---|
Brand Sunon | ||
Supply Voltage 24 V dc | ||
Height 80mm | ||
AC or DC Operation DC | ||
Power Consumption 1.2W | ||
Width 80mm | ||
Depth 25mm | ||
Maximum Current 49mA | ||
Dimensions 80 x 80 x 25mm | ||
Air Flow 33cfm | ||
Termination Type Lead Wire | ||
Noise Level 28dB | ||
Fan Speed 2600rpm | ||
Direction of Curve Forward | ||
Bearing Type Vapo | ||
Sunon DR MagLev Power Series DC Fans
Sunon DR MagLev Power series DC fans utilise MagLev technology to produce a fan with superior performance, low noise and long life. MagLev achieves this through zero friction – no contact between shaft and bearing. With excellent rotational stability, the MagLev fan eliminates vibration and typical wobble and shaking typically experienced in fan motors. MagLev also provides excellent high temperature endurance that results in long life. Additionally, MagLev fans also feature all-plastic manufacture of major items for optimal insulation resistance and electrostatic discharge (ESD) performance. The DR MagLev Power series also feature two innovations to further enhance performance and life span. Seal and Clip (S&C) and Blanked and Seamless (B&S) technologies both add additional benefits such as dust invasion resistance, prevention of oil leakage and increased resistance to movement due to temperature changes.
Extended motor life
Prevention of oil leakage
High quality construction
Prevention of oil leakage
High quality construction
