Micronel F41 Series Axial Fan, 24 V dc, DC Operation, 8.4m³/h, 864mW, 55mA Max, 41 x 41 x 12mm
- RS Stock No.:
- 498-148
- Distrelec Article No.:
- 154-21-324
- Mfr. Part No.:
- F41MM-024XK-9
- Brand:
- Micronel
Bulk discount available
Subtotal (1 unit)*
£41.86
(exc. VAT)
£50.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 309 unit(s) ready to ship
- Plus 108 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £41.86 |
5 - 9 | £38.50 |
10 - 24 | £36.83 |
25 - 49 | £34.32 |
50 + | £30.13 |
*price indicative
- RS Stock No.:
- 498-148
- Distrelec Article No.:
- 154-21-324
- Mfr. Part No.:
- F41MM-024XK-9
- Brand:
- Micronel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Micronel | |
Supply Voltage | 24 V dc | |
AC or DC Operation | DC | |
Height | 41mm | |
Power Consumption | 864mW | |
Width | 41mm | |
Maximum Current | 55mA | |
Depth | 12mm | |
Dimensions | 41 x 41 x 12mm | |
Air Flow | 8.4m³/h | |
Noise Level | 20dB | |
Fan Speed | 5400rpm | |
Bearing Type | Ball, Sleeve | |
Select all | ||
---|---|---|
Brand Micronel | ||
Supply Voltage 24 V dc | ||
AC or DC Operation DC | ||
Height 41mm | ||
Power Consumption 864mW | ||
Width 41mm | ||
Maximum Current 55mA | ||
Depth 12mm | ||
Dimensions 41 x 41 x 12mm | ||
Air Flow 8.4m³/h | ||
Noise Level 20dB | ||
Fan Speed 5400rpm | ||
Bearing Type Ball, Sleeve | ||
- COO (Country of Origin):
- VN

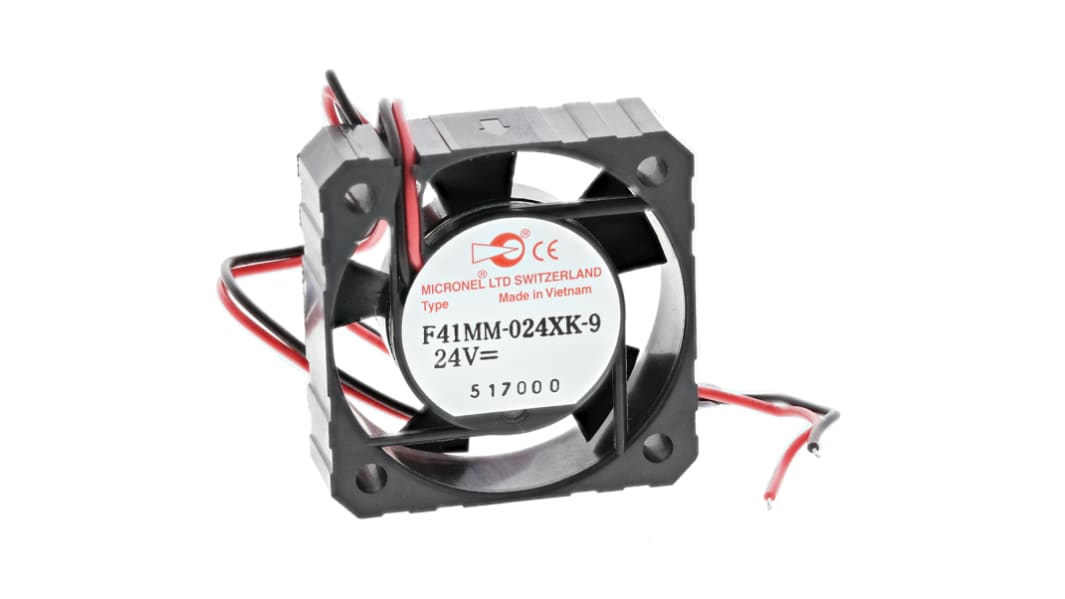

Micronel Ultra Slim Axial Fan
The Micronel sleeve bearing axial fan is 41mm x 41mm x 12mm in size. It has a supply voltage rating of 24VDC. This fan has 5400rpm motor speed. It has a maintenance-free double ball bearing life, which ensures fault-free use for a significant period of time. It also ensures that AC fans provide a flexible and dependable cooling solution for applications that require an axial fan to be mounted in any axial position. This axial fan has a power consumption rating of 864mW.
Features and Benefits
Extremely low profile fans with polarity protection and reverse mounting capability
Can be vertically mounted next to hot spots
Low power consumption
Airflow 8.4m³/h
Can be vertically mounted next to hot spots
Low power consumption
Airflow 8.4m³/h
Applications
Domestic appliances
Enclosures
Fans, motors and pumps
Heating and ventilation
Industrial drives
Instruments
Machines in industries
Medical field
Power supplies
Printing
Enclosures
Fans, motors and pumps
Heating and ventilation
Industrial drives
Instruments
Machines in industries
Medical field
Power supplies
Printing
Certifications
CE certified
