Neutrik, etherCON CAT6A Cable Connector for use with etherCON Connectors
- RS Stock No.:
- 121-6995
- Distrelec Article No.:
- 300-33-684
- Mfr. Part No.:
- NE8MX6
- Brand:
- Neutrik
Bulk discount available
Subtotal (1 unit)*
£16.20
(exc. VAT)
£19.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 900 unit(s) ready to ship
- Plus 96 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 9 | £16.20 |
10 - 49 | £15.03 |
50 + | £13.85 |
*price indicative
- RS Stock No.:
- 121-6995
- Distrelec Article No.:
- 300-33-684
- Mfr. Part No.:
- NE8MX6
- Brand:
- Neutrik
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Neutrik | |
Accessory Type | CAT6A Cable Connector | |
For Use With | etherCON Connectors | |
Series | etherCON | |
Select all | ||
---|---|---|
Brand Neutrik | ||
Accessory Type CAT6A Cable Connector | ||
For Use With etherCON Connectors | ||
Series etherCON | ||

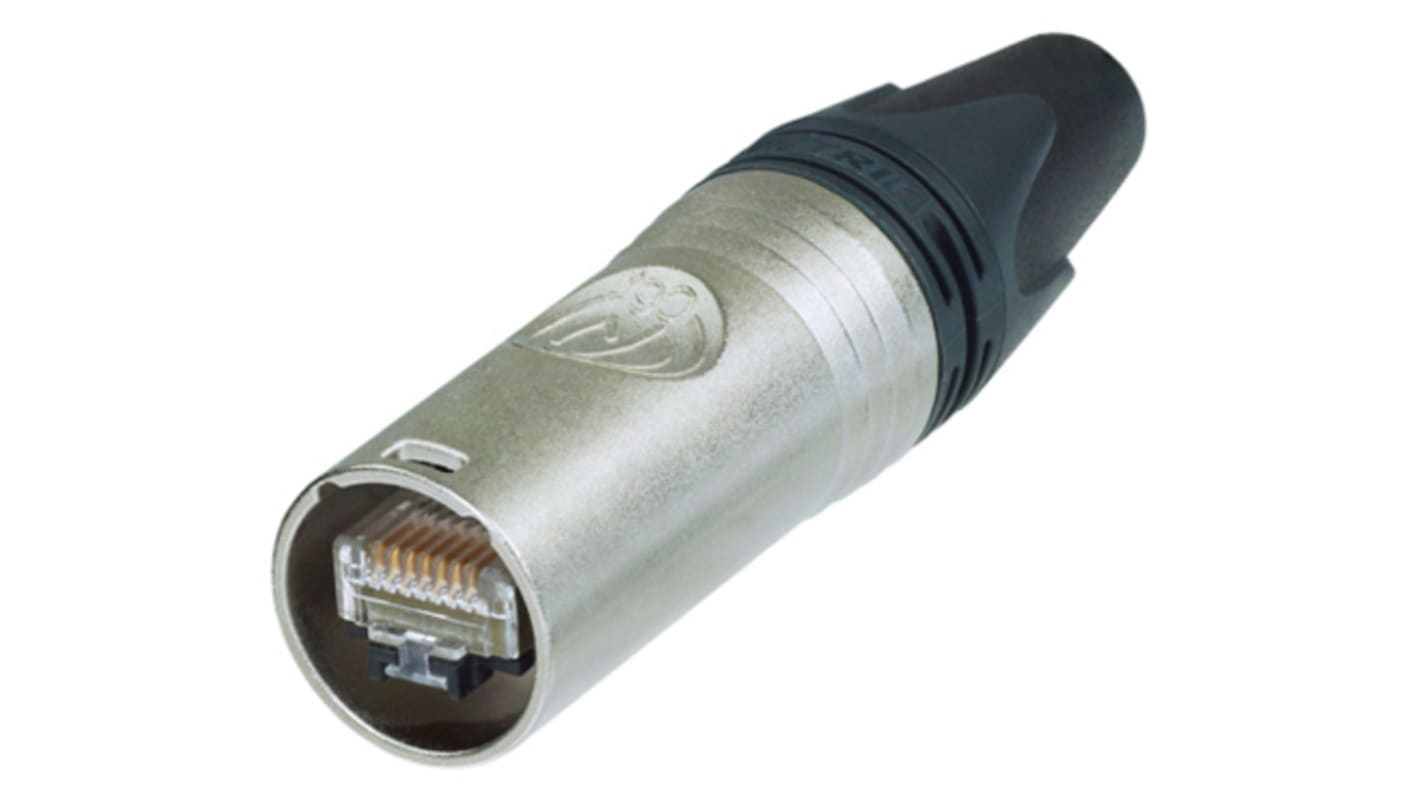

Neutrik Cable Connector
The Neutrik etherCON series CAT6a cable connector has a CAT6a RJ45 plug contained in a robust metal shell. With a chuck type strain relief and rugged latch lock connection system, this RJ connector provides a high degree of ingress protection when mated. It is intermatable with the etherCON CAT5 range.
Features and Benefits
Rated current per contact is 1.5A
nickel plated
Suitable for cable size ranging between AWG 24 and AWG 22/1
Contacts material is spring steel with gold plating
Sturdy and reliable
PoE+ compliant according to 802.3at Type2
nickel plated
Suitable for cable size ranging between AWG 24 and AWG 22/1
Contacts material is spring steel with gold plating
Sturdy and reliable
PoE+ compliant according to 802.3at Type2
Applications
Audio
Commercial entertainment
Live stage production
DMX lighting
Industrial and outdoor internet access environments
Commercial entertainment
Live stage production
DMX lighting
Industrial and outdoor internet access environments
Certifications
IP65 rated
UL94V-0 approved
UL94V-0 approved
