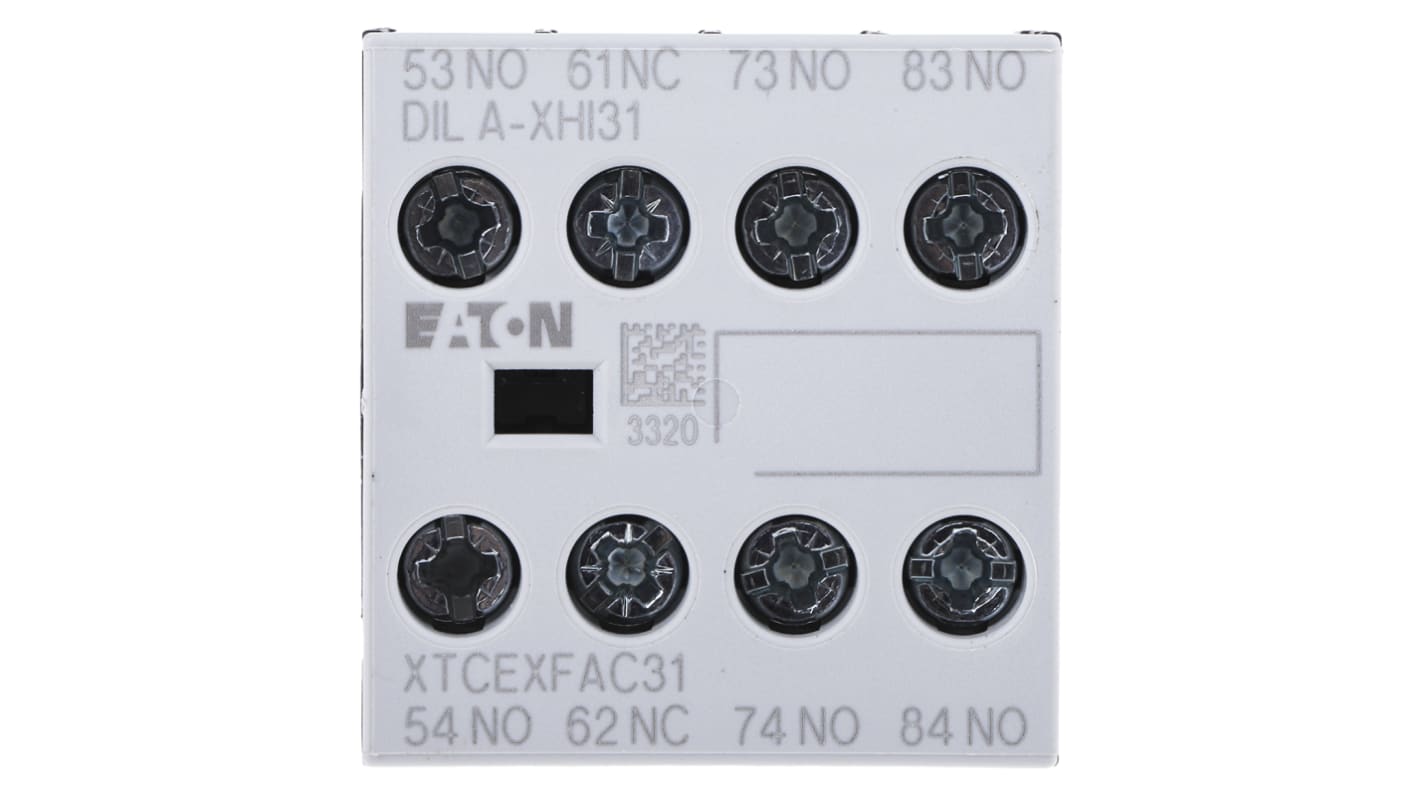

Eaton Auxiliary Contact, 4 Contact, 1NC + 3NO, Front Mount
- RS Stock No.:
- 493-0674
- Mfr. Part No.:
- 276427 DILA-XHI31
- Brand:
- Eaton
Subtotal (1 unit)*
£17.04
(exc. VAT)
£20.45
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 18 unit(s) shipping from 24 November 2025
- Plus 25 unit(s) shipping from 16 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £17.04 |
*price indicative
- RS Stock No.:
- 493-0674
- Mfr. Part No.:
- 276427 DILA-XHI31
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Number of Contacts | 4 | |
| Normal State Configuration | 1NC + 3NO | |
| Mounting Style | Front Mount | |
| Contact Current Rating | 4 A ac, 10 A dc | |
| Terminal Type | Screw | |
| Pole and Throw Configuration | 4PST | |
| Contact Voltage Rating | 220 V dc, 500 V ac | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +60°C | |
| Operating Temperature Range | -25 → +60 °C | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Number of Contacts 4 | ||
Normal State Configuration 1NC + 3NO | ||
Mounting Style Front Mount | ||
Contact Current Rating 4 A ac, 10 A dc | ||
Terminal Type Screw | ||
Pole and Throw Configuration 4PST | ||
Contact Voltage Rating 220 V dc, 500 V ac | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +60°C | ||
Operating Temperature Range -25 → +60 °C | ||
- COO (Country of Origin):
- RO
Eaton Auxiliary Contact, 4A Current Rating, Screw Terminals - DILA Series - 276427 DILA-XHI31
Boost the switching capacity of your DILA contactor relays with this auxiliary contact from Eaton. By adding an extra four contacts to your setup, the device helps with the smooth control of automated processes, medical equipment and security systems. Thanks to its 220V DC/500V AC voltage rating, the unit takes care of heavy-duty industrial applications without breaking a sweat. Measuring just 45 (L) x 36 (W) x 38mm (H), it takes up little space in densely packed setups. You can count on reliable performance in a wide temperature range between -25°C and +60°C.
Features & Benefits
• 9000 switching operations per hour for use with demanding systems
• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Electrical lifespan of 1.3 million cycles for long-lasting durability
• IP20 rating means it's touch-proof and protected from objects larger than 12mm
• Electrical lifespan of 1.3 million cycles for long-lasting durability
How do I mount this auxiliary contact?
There are clips on the back, so you can mount this device directly to the front of your relay.
How do I connect this auxiliary contact to my main switching equipment?
This component has screw terminals, so you simply insert the conductors and tighten the screws. This achieves a secure fit that helps prevent accidental disconnections and downtime.
Note
Eaton formerly known as Moeller
