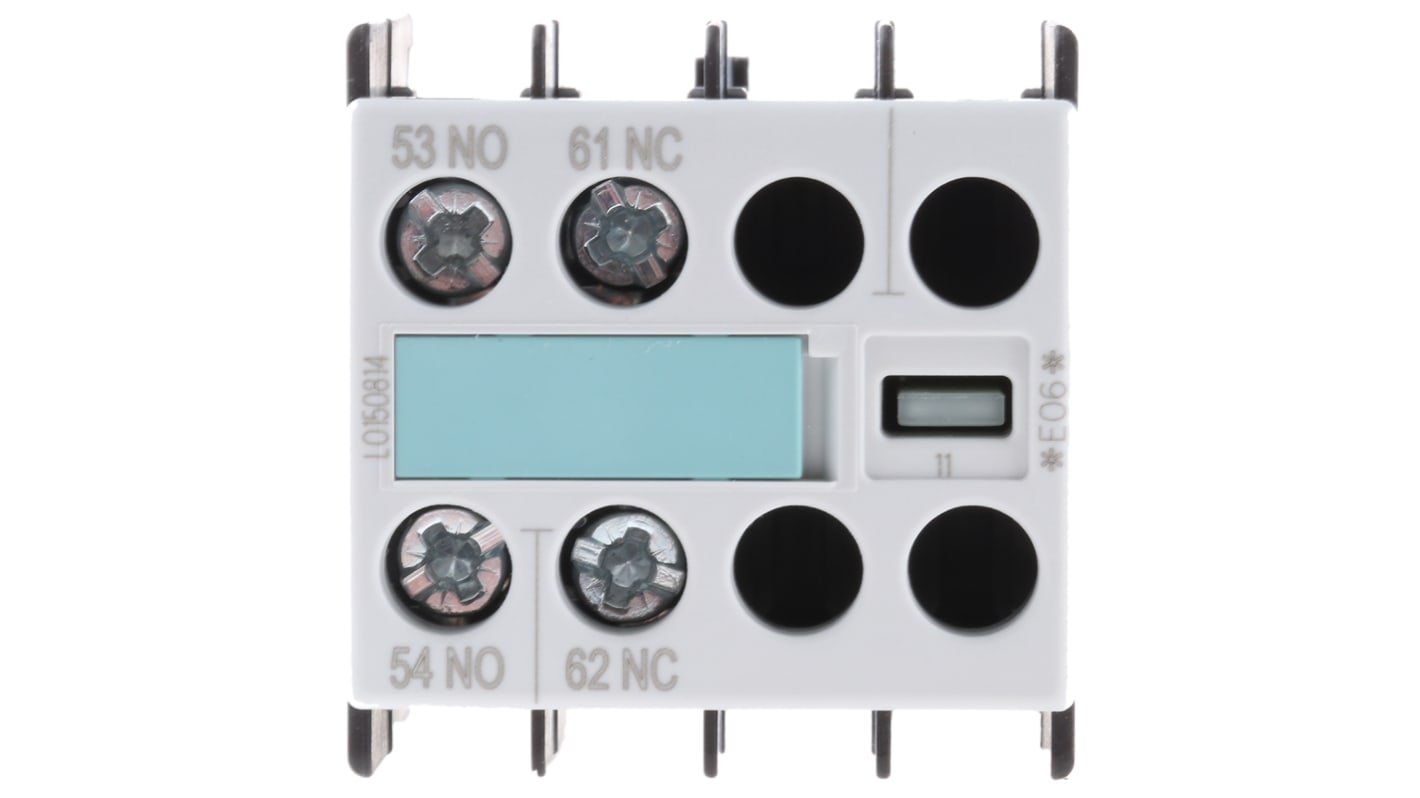

Siemens Auxiliary Contact, 2 Contact, NO/NC, Snap-On, Sirius Classic

View all Auxiliary Contacts
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
RS Stock No.:
392-9875
Mfr. Part No.:
3RH1911-1FA11
Brand:
Siemens
Find similar products by selecting one or more attributes.
Select all

Brand

Siemens

Number of Contacts

2

Normal State Configuration

NO/NC

Mounting Style

Snap-On

Range

Sirius Classic

Series

3RH1

Contact Current Rating

6 A

Terminal Type

Screw

Pole and Throw Configuration

DP

Contact Voltage Rating

690 V ac

COO (Country of Origin):
CZ

Auxiliary Contactor Blocks for Auxiliary Contactors, 3RH11


Snap-fit auxiliary contactor blocks for auxiliary contactors according to DIN EN 50 005
Model size S00 (for auxiliary contactors 3RH11)
2 and 4-pole auxiliary contactor blocks for building auxiliary contactors with 6 and 8 contacts


Siemens SIRIUS Cage Clamp Technology


As an alternative to screw connections a large number of Siemens low voltage components are also available with cage clamp connections.,Solid, stranded and finely stranded conductors, with or without end sleeves, can be connected, where two conductors can be clamped independent of one another at each terminal.,Inserting a flat bladed screwdriver opens the terminal; the conductor is then introduced and securely clamped following the removal of the screwdriver. The chromium-nickel spring steel of the cage clamp terminal guarantees corrosion resistant contact of the conductors.


Advantages


Time saving: the connection can be made quickly without having to press on end sleeves
Reliability: the terminal connection is resistant to shock and vibration
Vertical Mounting
Reduced maintenance: the cage clamp system means that the checking of screw connections following transportation is unnecessary
