Schneider Electric Auxiliary Contact, ComPacT NSX, 80 mA, 415V, LV429532
- RS Stock No.:
- 211-2656
- Mfr. Part No.:
- LV429532
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£277.11
(exc. VAT)
£332.53
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 29 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £277.11 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 211-2656
- Mfr. Part No.:
- LV429532
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Auxiliary Contact | |
| Series | ComPacT NSX | |
| Contact Current | 80mA | |
| Contact Voltage | 415V | |
| Rated Insulation Voltage Ui | 415V | |
| Operational Current Ie | 0.08A | |
| Standards/Approvals | China RoHS Regulation, Green Premium product, EU RoHS Directive, REACh Regulation | |
| Better World Product | Yes | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Auxiliary Contact | ||
Series ComPacT NSX | ||
Contact Current 80mA | ||
Contact Voltage 415V | ||
Rated Insulation Voltage Ui 415V | ||
Operational Current Ie 0.08A | ||
Standards/Approvals China RoHS Regulation, Green Premium product, EU RoHS Directive, REACh Regulation | ||
Better World Product Yes | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
Schneider Electric LV429532

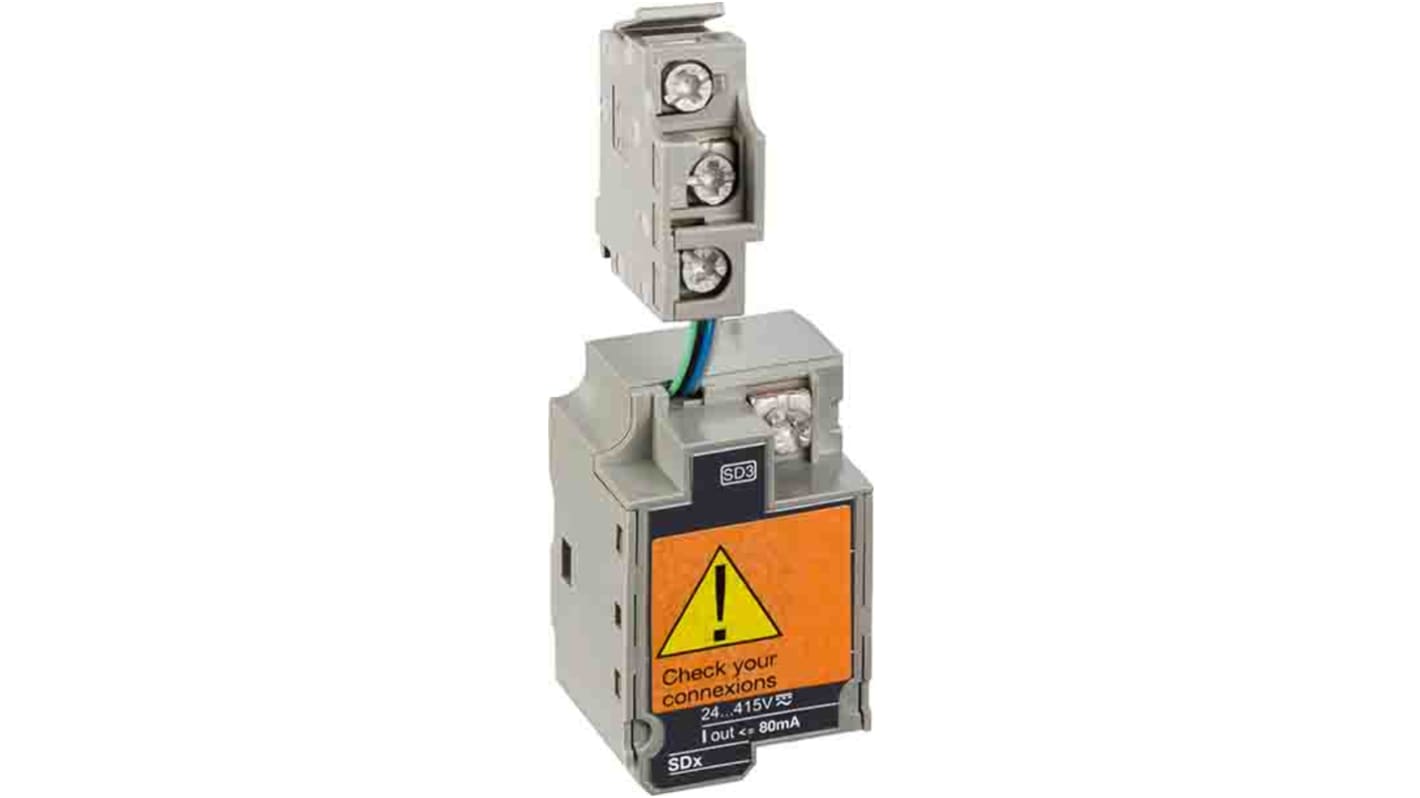

LV429532 is a trip unit accessory for SDX output module , NSX100-250 / NSX400-630. This trip unit is for Micrologic 2.0,Micrologic 5.0,Micrologic 6.0 with a supply voltage 24-415V DC. It uses the sensors and processing capacity of the Micrologic trip unit. It is easy to use and requires no special software or settings. It is immediately operational when connected to the circuit breaker by a ULP cord. It also provides monitoring and control with the use of the I/O application module, the motor mechanism module, or the circuit breaker communication module.
The Schneider Electric LV4 series trip unit accessory - SDX output module - for NSX100..250 / NSX400..630 with 2 static outputs.
Green Premium product
Toxic heavy metal free
Mercury free
