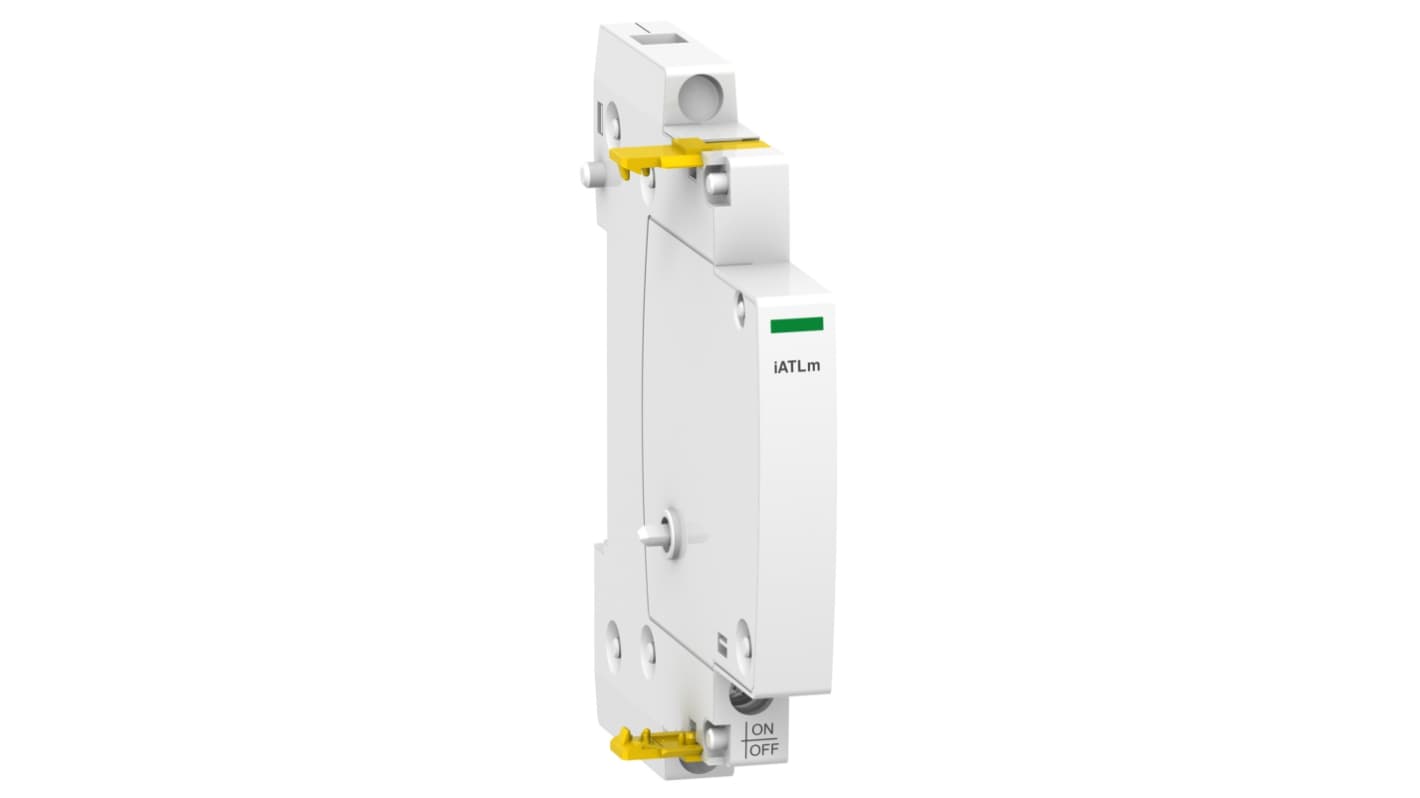

Schneider Electric Auxiliary Contact, Din Rail, Acti9 A9C

The Schneider Electric Latched control is a sophisticated auxiliary device designed to operate efficiently within a diverse range of control circuits. Capable of handling a control circuit voltage of 12 to 240 V AC at 50/60 Hz, this latched control unit ensures reliable performance in demanding applications. With its compact design, measuring 81 mm in height, 9 mm in width, and 69 mm in depth, it integrates seamlessly onto DIN rail mounts, simplifying installation in industrial environments. Built for durability, the device is compliant with essential standards and boasts robust protection features, making it an ideal choice for modern electrical systems.

Operates under a control circuit voltage range of 12 to 240 V AC
Rated insulation voltage of 440 V, ensuring high safety standards
Designed with a rated impulse withstand voltage of 4 kV to manage surges effectively
Supports remote control functionality with two switch entries for enhanced usability
Fixed mounting on the right side of TL allows for streamlined installations on DIN rails
Tunnel type terminals accommodate various wire specifications, enhancing connectivity flexibility
IP20 protection class conforms to IEC 60529 standards, providing essential ingress protection
Environmentally compliant with EU RoHS directives, supporting sustainability efforts
Operational in ambient air temperatures ranging from -20 to 50 °C, suitable for diverse environments
Backed by an 18-month contractual warranty, ensuring customer confidence and product integrity
