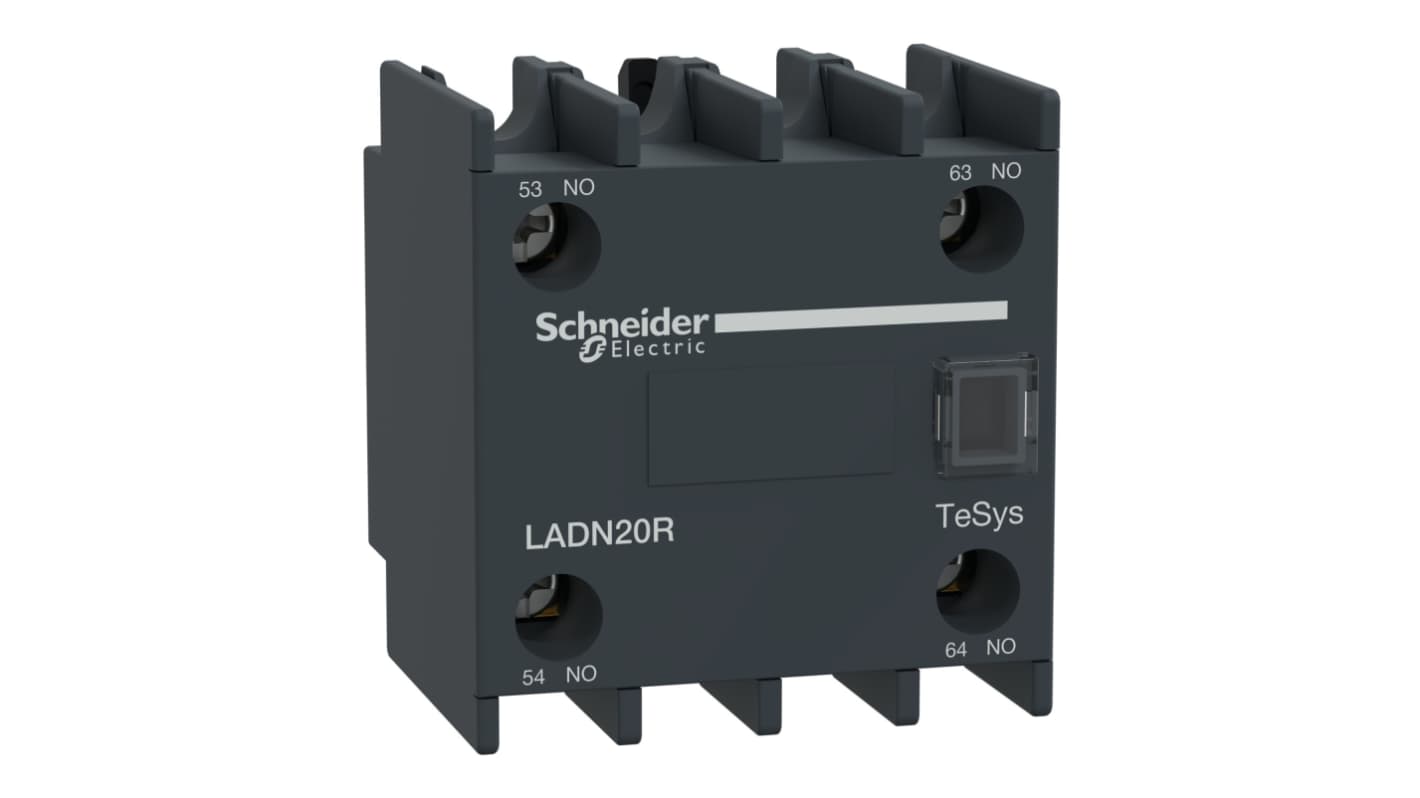

Schneider Electric Auxiliary Contact Block, 2 Contact, 2 NO, LADN, Screw, 690V, LADN20R
- RS Stock No.:
- 466-522
- Mfr. Part No.:
- LADN20R
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£15.51
(exc. VAT)
£18.61
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £15.51 |
*price indicative
- RS Stock No.:
- 466-522
- Mfr. Part No.:
- LADN20R
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Number of Contacts | 2 | |
| Product Type | Auxiliary Contact Block | |
| Normal State Configuration | 2 NO | |
| Series | LADN | |
| Mount Type | Screw | |
| Terminal Type | Screw Clamp | |
| Pole and Throw Configuration | 2 NO | |
| Contact Voltage | 690V | |
| Mounting Location | Front | |
| Minimum Operating Temperature | -25°C | |
| Rated Insulation Voltage Ui | 690V | |
| Mechanical Durability | 30Mcycles | |
| Minimum Load | 1mA | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, CSA C22.2 No 60947-5-1, EN 50012, GB/T 14048.5, UL 60335-2-40:Annex JJ, EN/IEC 60947-5-1, UL 60947-5-1 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Number of Contacts 2 | ||
Product Type Auxiliary Contact Block | ||
Normal State Configuration 2 NO | ||
Series LADN | ||
Mount Type Screw | ||
Terminal Type Screw Clamp | ||
Pole and Throw Configuration 2 NO | ||
Contact Voltage 690V | ||
Mounting Location Front | ||
Minimum Operating Temperature -25°C | ||
Rated Insulation Voltage Ui 690V | ||
Mechanical Durability 30Mcycles | ||
Minimum Load 1mA | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals IEC 60335-1:Clause 30.2, IEC 60335-2-40:Annex JJ, CSA C22.2 No 60947-5-1, EN 50012, GB/T 14048.5, UL 60335-2-40:Annex JJ, EN/IEC 60947-5-1, UL 60947-5-1 | ||
- COO (Country of Origin):
- CN
The Schneider Electric Auxiliary contact block, TeSys Deca, features 2 NO contacts with screw clamp terminals. It is mounted on the front and operates at a rated operational voltage of 690 V AC, 25 to 400 Hz. It complies with the standards EN/IEC 60947-5-1, GB/T 14048.5, EN 50012, UL 60947-5-1, CSA C22.2 No 60947-5-1, IEC 60335-1 Clause 30.2, IEC 60335-2-40 Annex JJ, and UL 60335-2-40 Annex JJ.
Mechanical durability 30 Mcycles
Color Dark grey
IP degree of protection IP2X conforming to IEC 60529
Protective treatment TH conforming to IEC 60068
Minimum switching current 1 mA
Minimum switching voltage 17 V
