Block 200VA Autotransformer, 230V ac Primary, 115 V ac Secondary
- RS Stock No.:
- 310-1156
- Mfr. Part No.:
- SAT200
- Brand:
- Block
Available to back order for despatch when stock is available
Added
Price Each
£91.00
(exc. VAT)
£109.20
(inc. VAT)
| Units | Per unit |
| 1 - 24 | £91.00 |
| 25 + | £62.42 |
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 310-1156
- Mfr. Part No.:
- SAT200
- Brand:
- Block
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

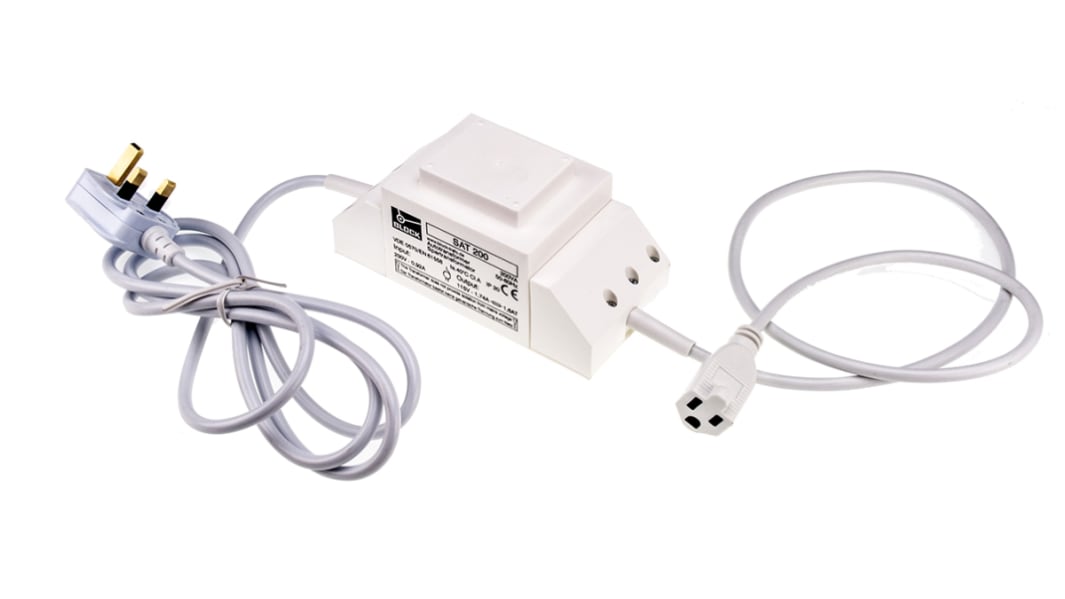

Portable Step-Down Auto Transformers SAT series
Portable encapsulated autowound transformers providing a 115Vac supply via a standard 3-pin US style socket.
230Vac input, 115Vac output 50/60Hz
Encapsulated in plastic housing
Mounting holes for permanent installation if required
Output fuse protected
Input connection: 2m 3-core cable, 13A (BS1363) plug
Output connection: 1m 3-core cable, 3-pin US style 15A/125V socket
Manufactured and tested in accordance with VDE 0550
Encapsulated in plastic housing
Mounting holes for permanent installation if required
Output fuse protected
Input connection: 2m 3-core cable, 13A (BS1363) plug
Output connection: 1m 3-core cable, 3-pin US style 15A/125V socket
Manufactured and tested in accordance with VDE 0550
Warning
These units do NOT provide isolation from the mains.
Approvals
VDE 0550
Specifications
Attribute | Value |
|---|---|
| Primary Voltage Rating | 230V ac |
| Secondary Voltage Rating | 115 V ac |
| Power Rating | 200VA |
| Length | 166mm |
| Width | 76mm |
| Dimensions | 166 x 76 x 77mm |
| Depth | 77mm |
| Maximum Temperature | +40°C |
