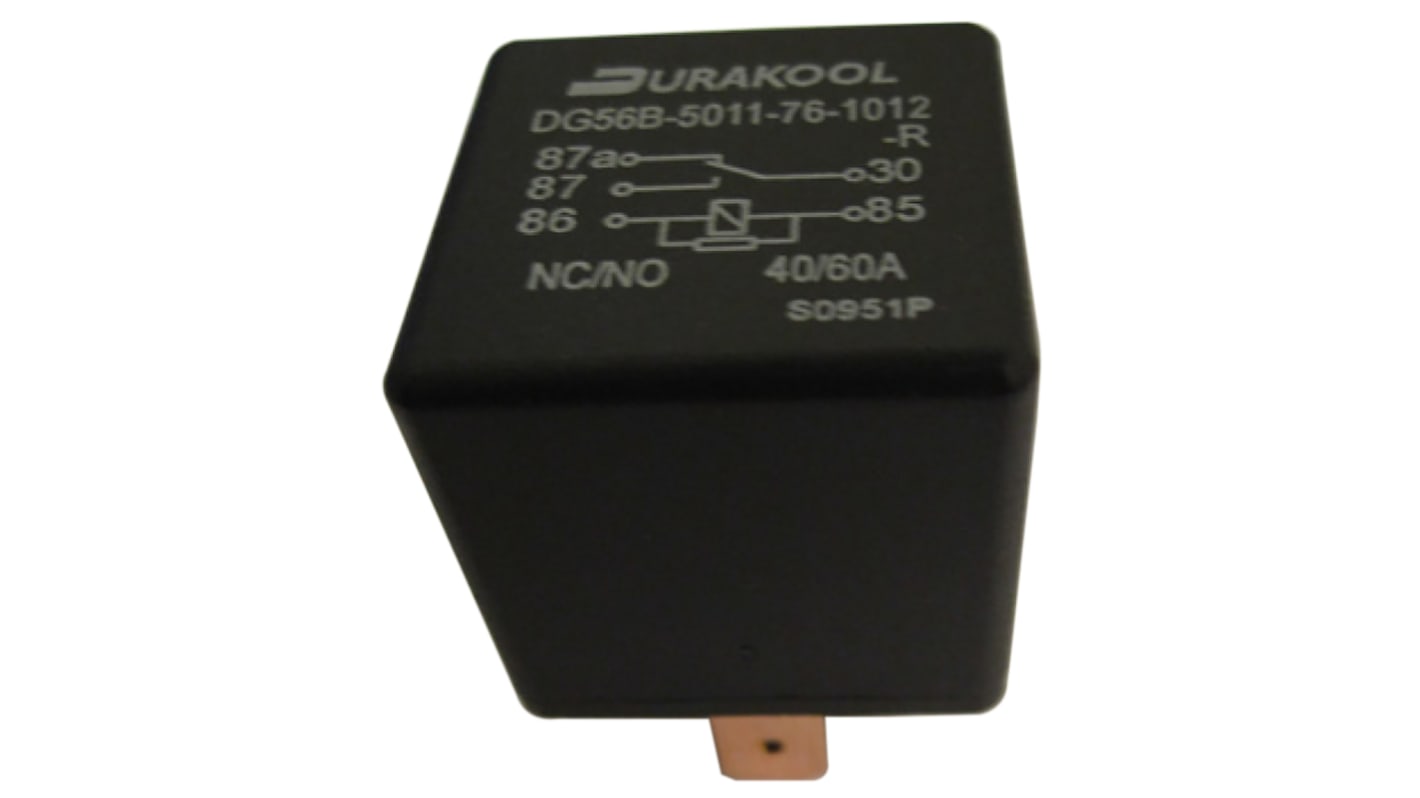

Durakool Plug In Automotive Relay, 12V dc Coil Voltage, 40A Switching Current, SPDT
- RS Stock No.:
- 915-6635
- Mfr. Part No.:
- DG56A-7011-76-1012-DR
- Brand:
- Durakool
Subtotal (1 unit)*
£2.12
(exc. VAT)
£2.54
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 637 unit(s) ready to ship
- Plus 135 unit(s) ready to ship from another location
- Plus 299 unit(s) shipping from 06 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £2.12 |
*price indicative
- RS Stock No.:
- 915-6635
- Mfr. Part No.:
- DG56A-7011-76-1012-DR
- Brand:
- Durakool
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Durakool | |
Coil Voltage | 12V dc | |
Coil Power | 1.8W | |
Coil Resistance | 85Ω | |
Contact Configuration | SPDT | |
Number of Poles | 1 | |
Switching Current | 40A | |
Maximum Switching Current DC | 120 A | |
Maximum Switching Voltage DC | 24V dc | |
Mounting Type | Plug In | |
Terminal Type | Quick Connect | |
Standards Met | RoHS Compliant | |
Life | 107Cycles | |
Minimum Operating Temperature | -40°C | |
Length | 26.2mm | |
Contact Material | AgSnOInO | |
Series | DG56 | |
Isolation Coil To Contact | 500V rms | |
Maximum Operating Temperature | +125°C | |
Height | 23.7mm | |
Depth | 26.2mm | |
Select all | ||
---|---|---|
Brand Durakool | ||
Coil Voltage 12V dc | ||
Coil Power 1.8W | ||
Coil Resistance 85Ω | ||
Contact Configuration SPDT | ||
Number of Poles 1 | ||
Switching Current 40A | ||
Maximum Switching Current DC 120 A | ||
Maximum Switching Voltage DC 24V dc | ||
Mounting Type Plug In | ||
Terminal Type Quick Connect | ||
Standards Met RoHS Compliant | ||
Life 107Cycles | ||
Minimum Operating Temperature -40°C | ||
Length 26.2mm | ||
Contact Material AgSnOInO | ||
Series DG56 | ||
Isolation Coil To Contact 500V rms | ||
Maximum Operating Temperature +125°C | ||
Height 23.7mm | ||
Depth 26.2mm | ||
- COO (Country of Origin):
- CN
Willow Durakool DG56A Series Automotive Relays
Willow Durakool DG56A Series miniISO automotive power relays feature a non-latching coil with a high expected life cycle. The DG56A relays have a high resistance to inrush current and a high continuous DC current capacity.
General purpose miniature automotive relays
High resistance to inrush current
High continuous DC current capacity
Ideal for DC motor control
Industry standard size and footprint
RoHS Compliant
High resistance to inrush current
High continuous DC current capacity
Ideal for DC motor control
Industry standard size and footprint
RoHS Compliant
